Módulo Keystone Goobay 96100

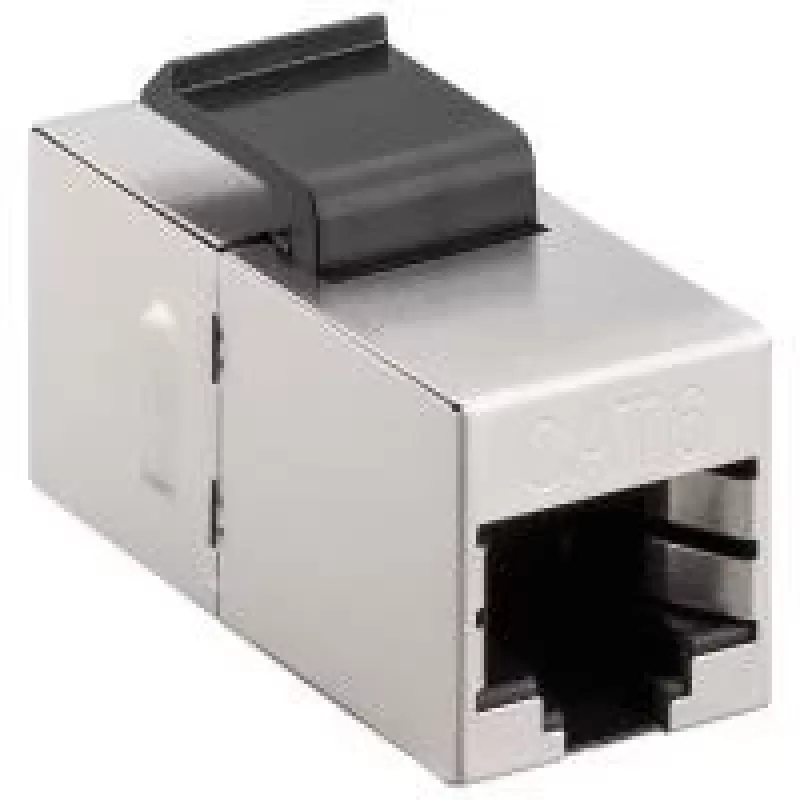

The Goobay 96100 keystone module provides a compact way to extend or terminate twisted-pair Ethernet cabling. With a metal housing and two RJ45 jacks in a standardized keystone form factor, it snaps into compatible keystone patch panels, faceplates or surface-mount boxes and supports 1:1 pinout wiring for straightforward connections.

Advantages

The metal housing offers mechanical robustness and improved shielding. Two CAT6 RJ45 ports in one keystone module save panel space and allow dual connections at a single port location. Standardized 19.2 x 14.9 mm keystone dimensions ensure compatibility with most keystone-compatible faceplates and panels, while 1:1 pinout simplifies installation and cable termination.

Suitable for

• Extending or terminating twisted-pair Ethernet cables
• Mounting in keystone patch panels and wall plates
• Small office and home structured cabling
• Surface-mount boxes requiring keystone modules

Key specifications

• Model: Goobay 96100 (WENTRONIC)
• EAN: 4040849961007
• Connector: 2 × RJ45 (CAT6)
• Housing: Metal
• Pinout: 1:1
• Keystone dimensions: 19.2 × 14.9 mm (compatible)

How to use

Terminate the twisted-pair cable according to the 1:1 wiring scheme on the module's RJ45 contacts, or use patch cords to connect devices. Snap the keystone module into a compatible keystone slot in a patch panel, faceplate or surface-mount box until it clicks into place. Verify connections with a cable tester and ensure the module is seated firmly to maintain reliable network contact.

Recommendations

The module is intended for indoor structured cabling and should be used with CAT6-rated cables and compatible keystone sockets. Avoid exposing the metal housing to corrosive environments; ensure proper grounding/shielding practices in shielded installations.
