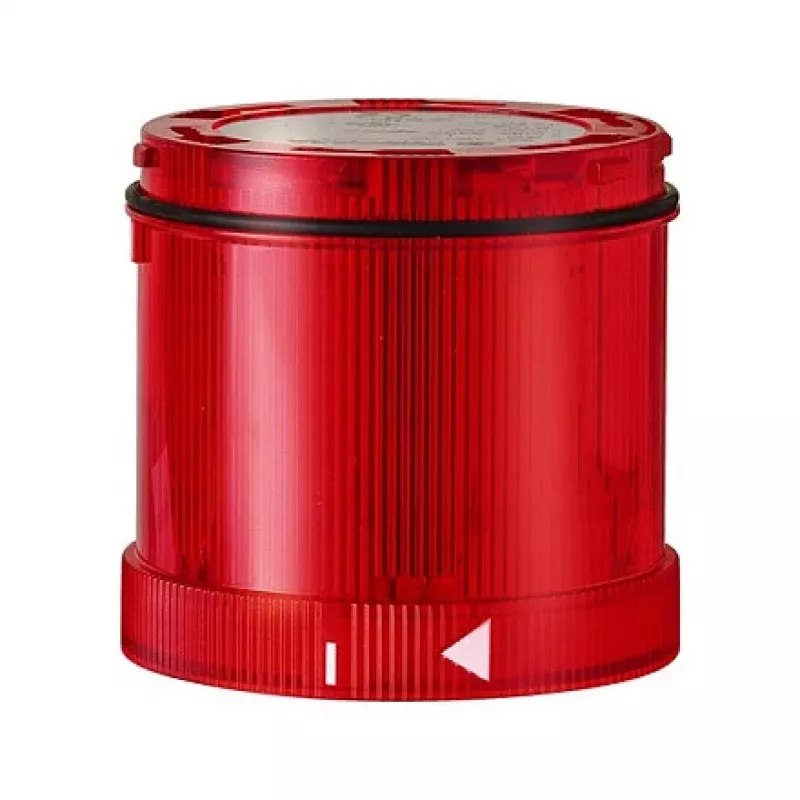

WERMA KombiSIGN 71 Elemento de señalización luminosa - Rojo - LED - 24 V AC/DC - IP65 - 50.000 h - Policarbonato

The WERMA KombiSIGN 71 Signal Light Element is a high-quality LED permanent light module designed for industrial signaling applications. With a red LED light source and a long lifespan of 50,000 hours, it provides reliable visual indication in demanding environments. The robust polycarbonate housing and lens offer IP65 protection against dust and water jets, making it suitable for indoor and outdoor use.

Advantages

Energy-efficient LED technology ensures low power consumption and long service life. The modular design allows easy integration into WERMA KombiSIGN 71 signal towers. With a wide operating temperature range of -20 to 50 °C, it performs reliably in extreme conditions.

Suitable for

• Industrial automation and machine status indication
• Process control and alarm systems
• Warehouse and logistics signaling
• Outdoor signaling applications requiring IP65 protection

Key specifications

• Product Type: Signal Light Element
• Series: KombiSIGN 71
• Light Function: Permanent Light
• Light Source: LED
• Light Color: Red
• Operating Voltage: 24 V AC/DC
• Current Consumption: 35 mA
• Lifespan: 50,000 hours
• Protection Class: IP65
• Operating Temperature: -20 to 50 °C
• Housing Material: Polycarbonate (PC)
• Lens Material: Polycarbonate (PC)
• Mounting: Modular (for KombiSIGN 71 base)
• Diameter: 70 mm
• Certifications: CE

Recommendations

For a complete signal tower, combine this light element with a WERMA KombiSIGN 71 base and optional sound module. Ensure the power supply matches the 24 V AC/DC requirement.
