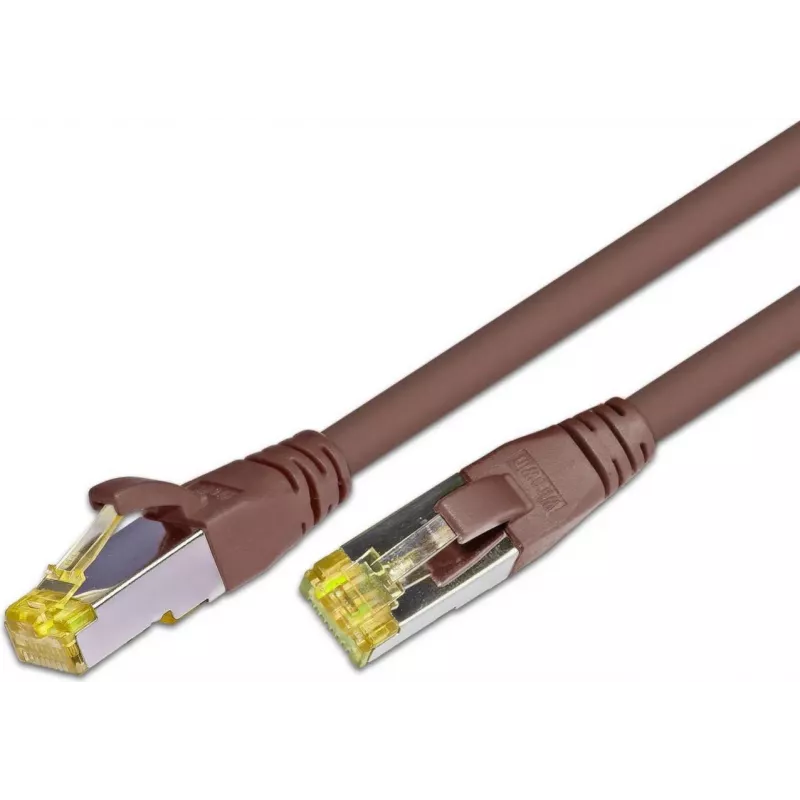

Wirewin Cable de red Cat6a S/FTP, 70 m, marrón, RJ45, 10Gbps, 500MHz, PIMF PKW-PIMF-KAT6 70.0 BR

This 70-metre Cat6a cable delivers 10 Gigabit Ethernet with a 500 MHz bandwidth, shielded end-to-end with S/FTP and PIMF construction for reliable, high-speed networking in demanding environments.

Overview

The Wirewin PKW-PIMF-KAT6 70.0 BR is a premium Category 6a patch cable designed for high-performance network installations. Its S/FTP (S-STP) shielding combines an overall braided screen with individual foil shielding for each twisted pair, while PIMF (Pairs in Metal Foil) technology further isolates pairs to minimise crosstalk and electromagnetic interference. The brown PVC jacket provides durability and easy identification, and the gold-plated RJ45 connectors ensure a stable, corrosion-resistant connection.

What stands out

• Supports 10 Gigabit Ethernet up to 100 metres (this cable is 70 m) with 500 MHz bandwidth.
• Robust S/FTP shielding with PIMF pair isolation for superior signal integrity.
• Gold-plated RJ45 connectors for optimal conductivity and longevity.
• 26 AWG stranded copper conductors for flexibility and performance.
• Supports Power over Ethernet (PoE, PoE+, PoE++) for data and power over one cable.

Technical details

• Cable length: 70 m
• Category: Cat6a
• Shielding: S/FTP (S-STP) with PIMF
• Data rate: 10 Gbps
• Bandwidth: 500 MHz
• Connectors: RJ45 male to RJ45 male, gold-plated
• Conductor: Copper, 26 AWG
• Jacket: PVC, brown
• Impedance: 100 Ohm
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801 Class EA
• Operating temperature: -20°C to 60°C

Our verdict

A high-quality Cat6a cable built for 10G networks, with excellent shielding and PoE support. The 70-metre length is ideal for long runs in data centres or large offices.
