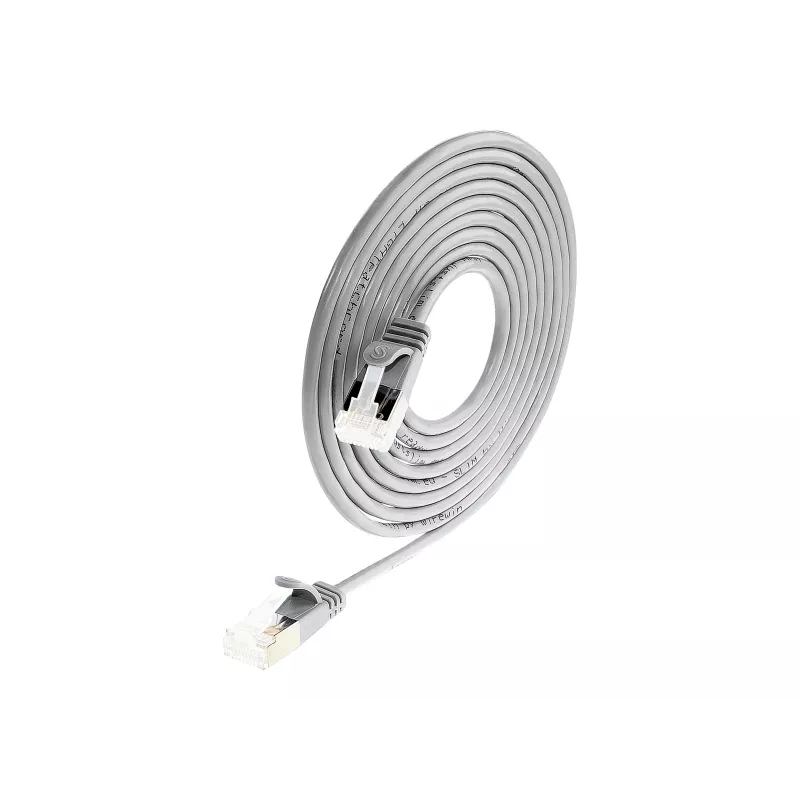

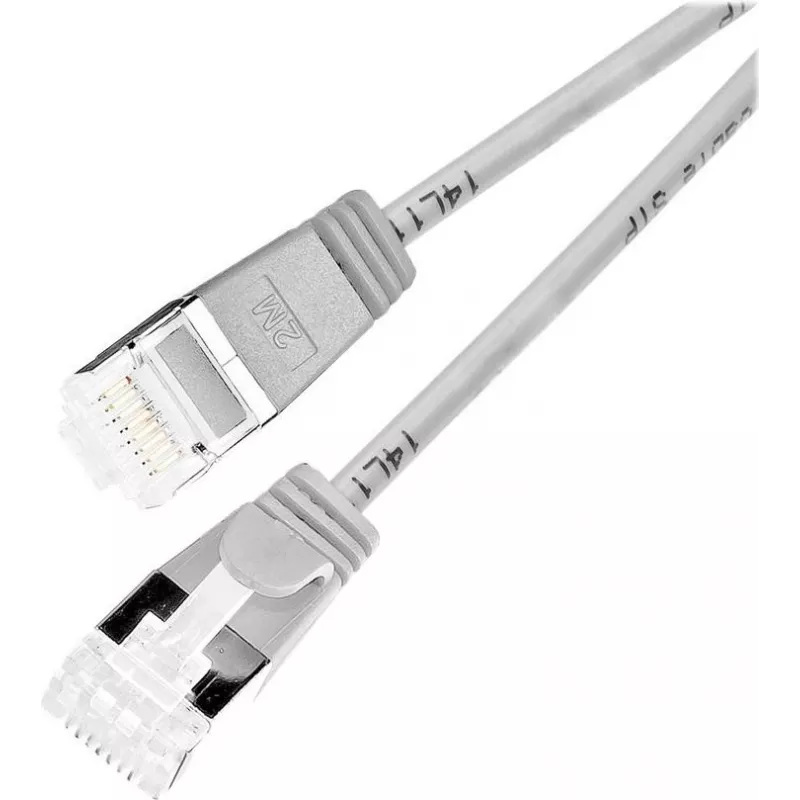

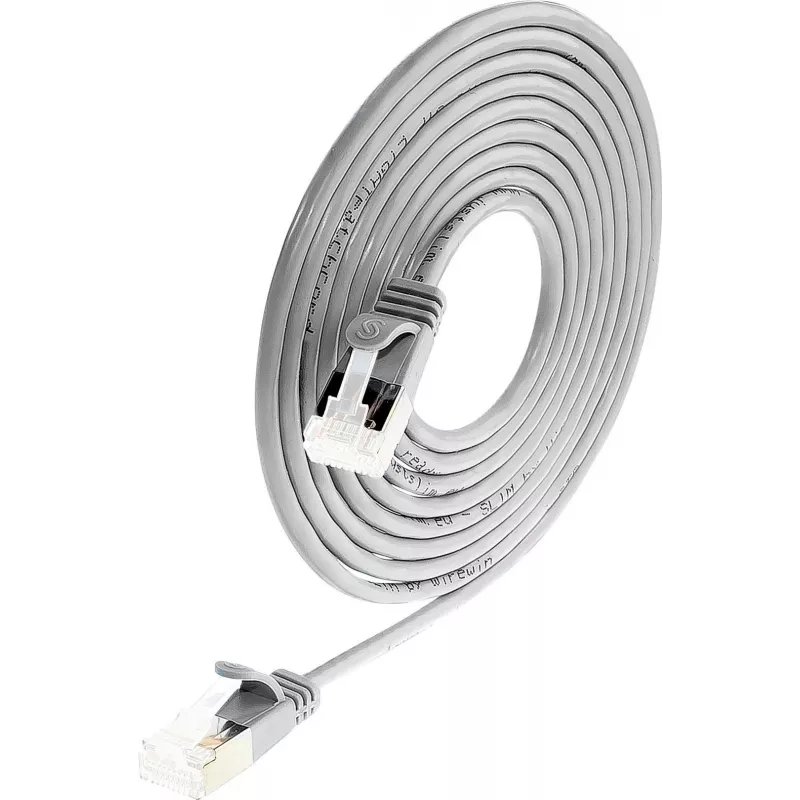

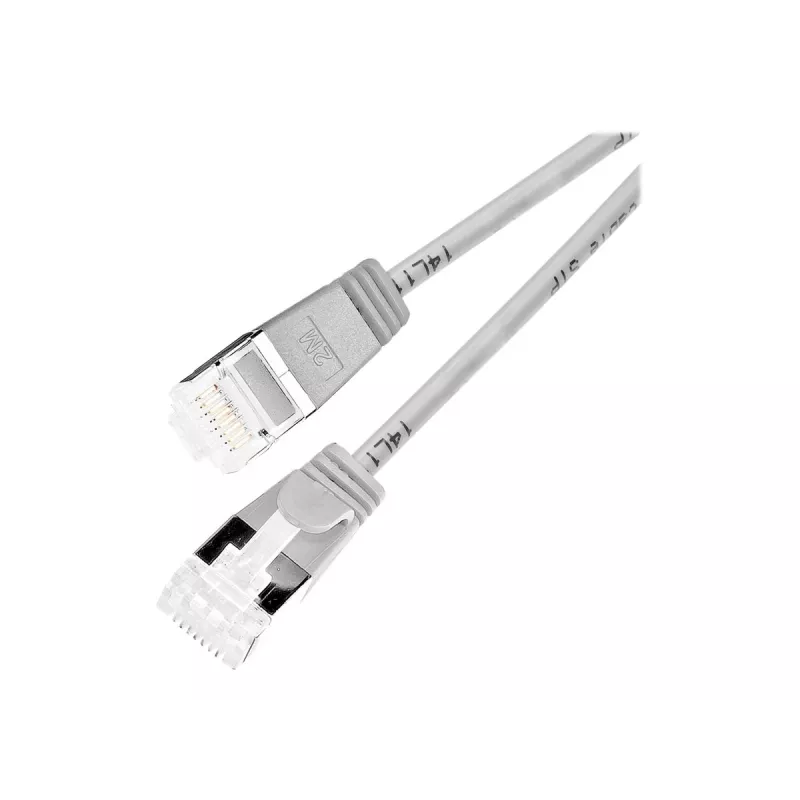

Wirewin Cable Lightpatch Redondo U/FTP Cat 6a Gris 0,1m Slim Flexible PoE PKW-LIGHT-STP-K6A 0.1

When rack space is tight and cable density is high, the SLIM WIREWIN Lightpatch Cable offers a 0.1 m Cat 6a link with a slim, flexible profile that fits where standard patch cables cannot. Its U/FTP shielding keeps alien crosstalk under control, while the 28 AWG stranded conductors remain easy to route in confined areas.

Highlights

• Cat 6a performance up to 500 MHz for 10GBASE-T networks
• U/FTP shielding: foiled twisted pairs with overall unshielded jacket
• Ultra-slim round design with approx. 3.8 mm outer diameter
• Highly flexible for tight bends and dense patching fields
• Supports PoE, PoE+, and 4PPoE power delivery
• Grey PVC jacket for easy identification

In daily use

This 0.1 m patch cable is ideal for short links between adjacent ports, patch panels, and equipment in data centers or network cabinets. The slim construction reduces airflow blockage and simplifies cable management, while the flexible jacket allows clean routing even in cramped spaces.

Full specifications

• Cable type: Patch Cable
• Category: Cat 6a (Class EA)
• Shielding: U/FTP
• Connectors: RJ45 male to RJ45 male
• Length: 0.1 m
• Colour: Grey
• Conductor gauge: 28 AWG
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• PoE support: PoE, PoE+, 4PPoE
• Jacket material: PVC
• Outer diameter: 3.8 mm
• Wiring standard: TIA/EIA-568-B.2

Final note

For high-density installations where every millimetre counts, the SLIM WIREWIN Lightpatch Cable delivers reliable Cat 6a connectivity without the bulk.
