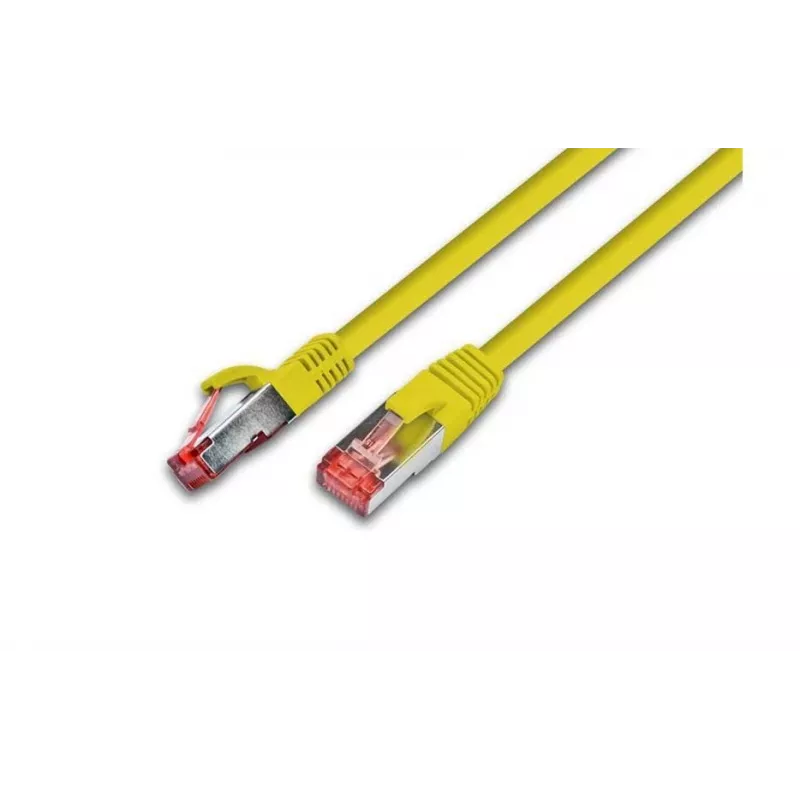

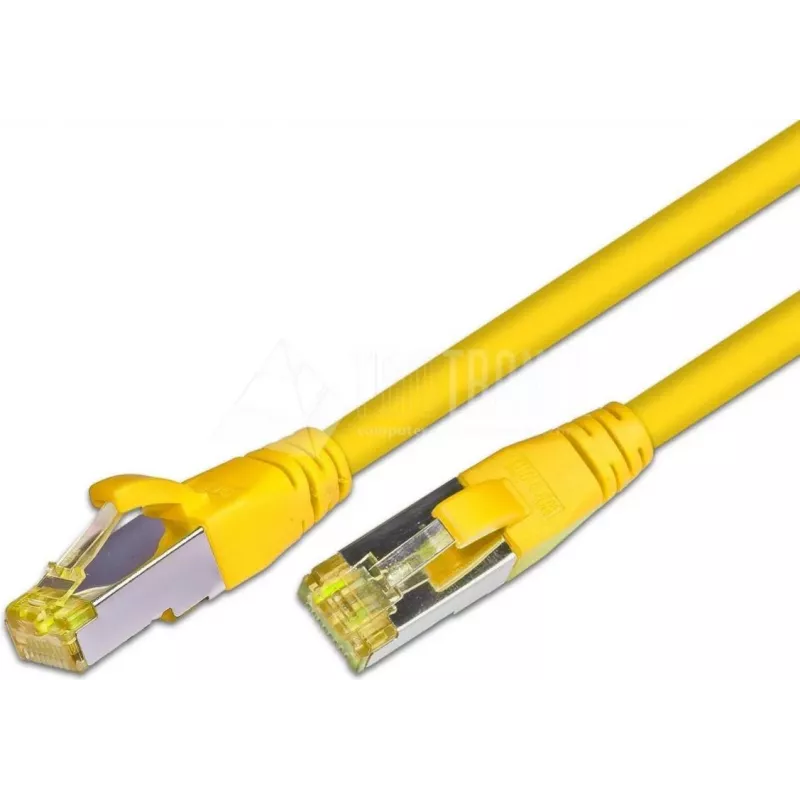

Wirewin Cat.6A S/FTP cable patch, RJ45, 1,5m, amarillo PKW-PIMF-KAT6A 1.5 GE

10 Gigabit Ethernet over 1.5 meters with Cat.6A S/FTP shielding, 26 AWG stranded copper, and gold-plated RJ45 connectors.

Overview

The SLIM WIREWIN PKW-PIMF-KAT6A 1.5 GE is a yellow Cat.6A patch cable with S/FTP (PIMF) shielding. It supports 10GBASE-T at 500 MHz bandwidth and Power over Ethernet up to PoE++. The cable uses 26 AWG stranded copper conductors with a PVC jacket and TIA/EIA 568B wiring.

What stands out

• Cat.6A performance for 10 Gigabit Ethernet
• S/FTP (PIMF) shielding reduces alien crosstalk
• Gold-plated RJ45 connectors for reliable contact
• Supports PoE, PoE+, and PoE++
• 1.5 m length, yellow jacket

Technical details

• Category: Cat.6A
• Shielding: S/FTP (PIMF)
• Length: 1.5 m
• Colour: Yellow
• Conductor gauge: 26 AWG
• Conductor material: Copper
• Cable construction: Stranded
• Jacket material: PVC
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold-plated
• Data rate: 10 Gbit/s
• Bandwidth: 500 MHz
• Wiring standard: TIA/EIA 568B
• PoE support: PoE, PoE+, PoE++
• Operating temperature: -20°C to 60°C

Our verdict

A compact, high-performance Cat.6A patch cable for 10G networks and PoE applications, with robust shielding and gold-plated connectors.
