Wirewin Cat6 U/UTP Cable de instalación de red de cobre macizo, 305m caja desenrollable, 250MHz, gris (VKBOX KAT6 UTP 305.0)

Running long, reliable Ethernet links in walls, ceilings, or between floors often fails because the cable is too short, too stiff, or can't maintain Gigabit speed over distance. This 305-meter Cat6 U/UTP cable in a pull box solves that by giving installers a continuous, solid-copper run that stays within spec for 1000BASE-T up to 100 meters per segment.

Who is it for

Network installers, electricians, and IT technicians who pull structured cabling in residential or commercial buildings. It suits anyone who needs a full box of certified Cat6 cable for multiple drops without splicing.

Main features

• Cat6 performance, 250 MHz bandwidth, supports Gigabit Ethernet (1000BASE-T)
• U/UTP unshielded construction with solid bare copper conductors, 23 AWG

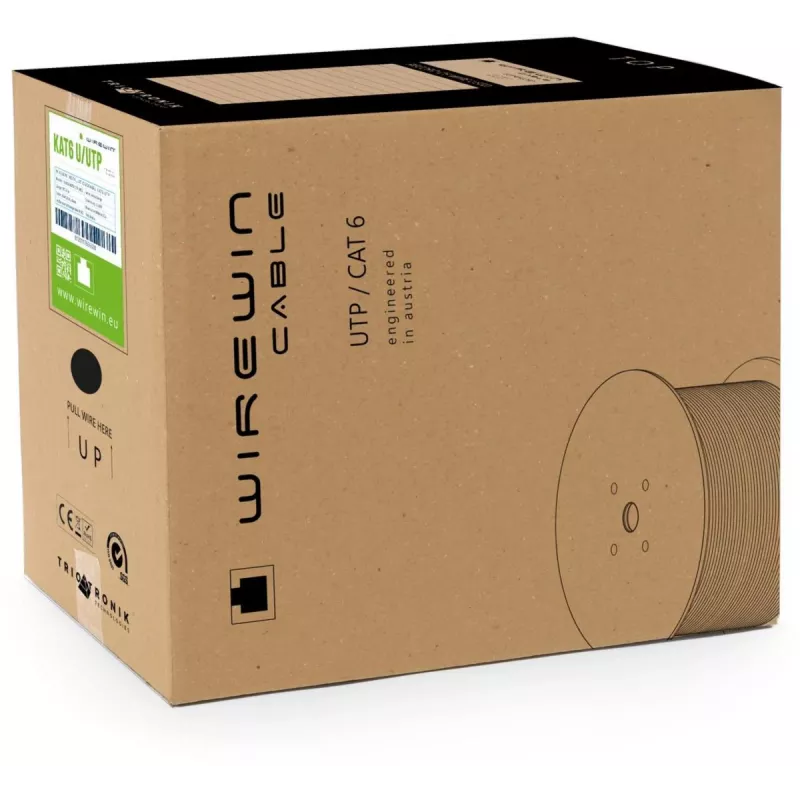

• 305 m (1000 ft) pull box for easy dispensing and reduced tangling
• PVC jacket, grey colour, 6.2 mm outer diameter for standard conduits
• PoE, PoE+, and UPoE compatible for powering devices over the same cable

Specifications

• Cable length: 305 m
• Category: Cat6
• Shielding: U/UTP (unshielded)

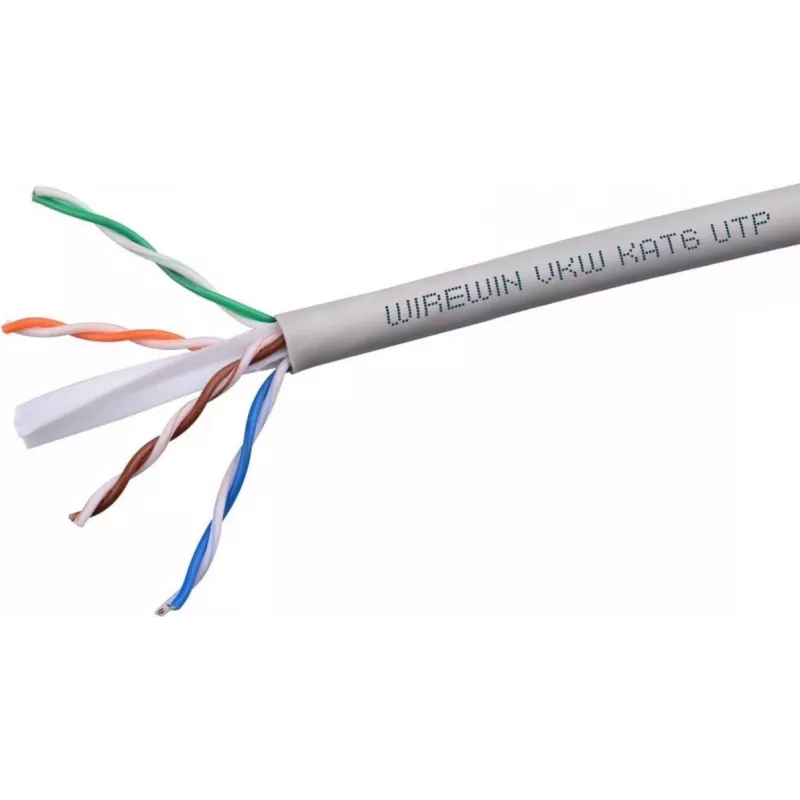

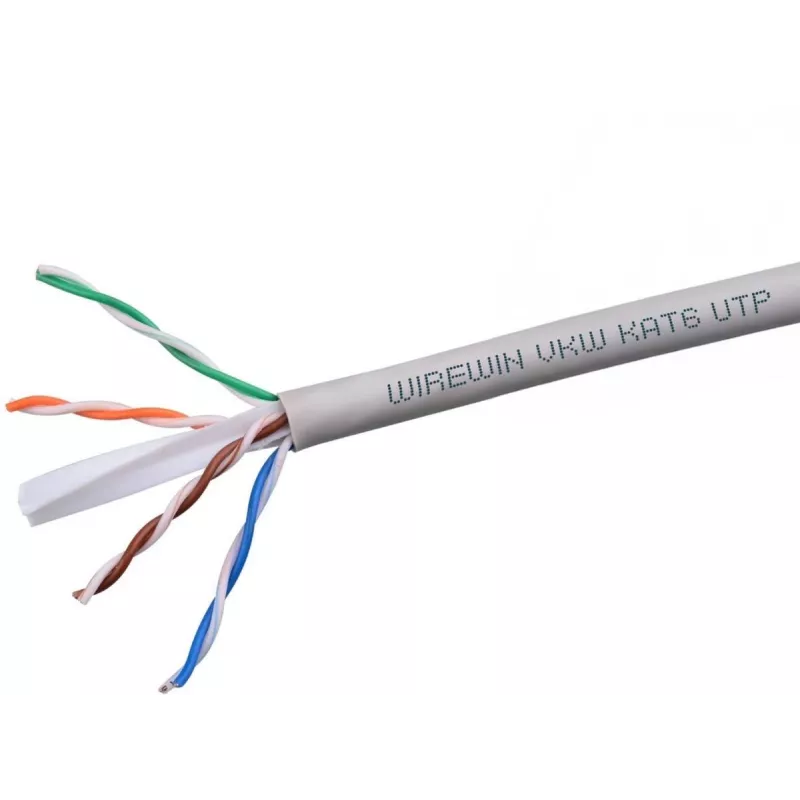

• Conductor: Solid copper, 23 AWG, 4 twisted pairs (8 conductors)
• Bandwidth: 250 MHz
• Impedance: 100 Ohm
• Jacket: PVC, grey
• Outer diameter: 6.2 mm
• Operating temperature: -20°C to +60°C
• Flammability rating: CM
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173

Tips

Pull from the centre of the box to avoid twists. Leave extra slack at both ends for termination and future moves. Use Cat6-rated connectors and patch panels to maintain full performance.
