Wirewin KDP placa de entrada de cables 1U, negra, montaje en rack de 19 pulgadas, acero, 1U, sin cepillo KDP 1HE OB BL

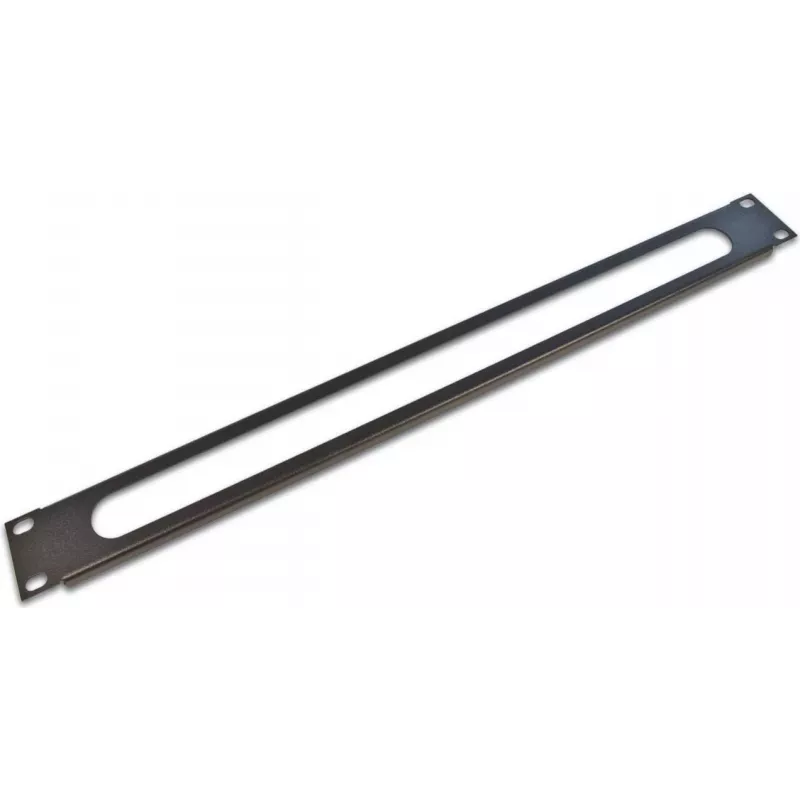

In a busy server room, technicians often need a clean way to route cables into a rack while keeping dust and clutter out. The SLIM WIREWIN KDP 1U Cable Entry Panel fills that role perfectly: it mounts into a standard 19-inch rack, providing a rectangular cutout for cable passage and a neat black finish that blends with other equipment. Made from powder-coated steel, it offers durability and a professional look. This 1U panel is ideal for network administrators and IT installers who want to manage cable entry points without sacrificing rack aesthetics or airflow control.

Key specifications

• Rack unit height: 1U
• Rack compatibility: 19-inch
• Product type: Cable entry panel
• Material: Steel
• Colour: Black (RAL 9005)
• Brush type: Without brush
• Mounting type: Front mount
• Mounting standard: EIA-310-D
• Finish: Powder-coated
• Cable entry opening: Rectangular cutout
• Application: Cable routing, space management, aesthetic closure
• Installation: Standard 4-point rack mounting
• Mounting hardware: Not included
• Compliance: RoHS
• Operating temperature: -10°C to 60°C
• Humidity range: 10% - 90% non-condensing
• Overall width: 482.6 mm
• Overall height: 44.45 mm
• Depth: approx. 15 mm
• Manufacturer series: KDP Series

Why choose it

The KDP 1U panel is a simple yet effective solution for rack cable management. Its steel construction and powder coating ensure long-term reliability, while the rectangular cutout allows easy routing of multiple cables. The black colour matches most rack cabinets, and the 1U size makes it easy to integrate into existing setups. Without a brush, it offers unrestricted cable movement, which is useful for high-density installations.

Ideal use cases

• Server rooms and data centres needing cable entry points
• Network cabinets where cable management is essential
• Rack installations requiring a clean, closed-off appearance
• IT environments with frequent cable changes

Good to know

The panel is RoHS compliant and designed for standard 19-inch racks. Mounting hardware is not included, so you will need appropriate screws or cage nuts. It operates reliably in typical indoor conditions, with a temperature range from -10°C to 60°C and humidity up to 90% non-condensing. The overall dimensions are 482.6 mm wide, 44.45 mm high, and approximately 15 mm deep, fitting a 1U space.
