Wirewin Lightwin terminal con prensaestopas, junta Gas-Stop Single-Pull, 10 mm, 3-6 mm FTTx (DC 10MM OUT 3-6MM)

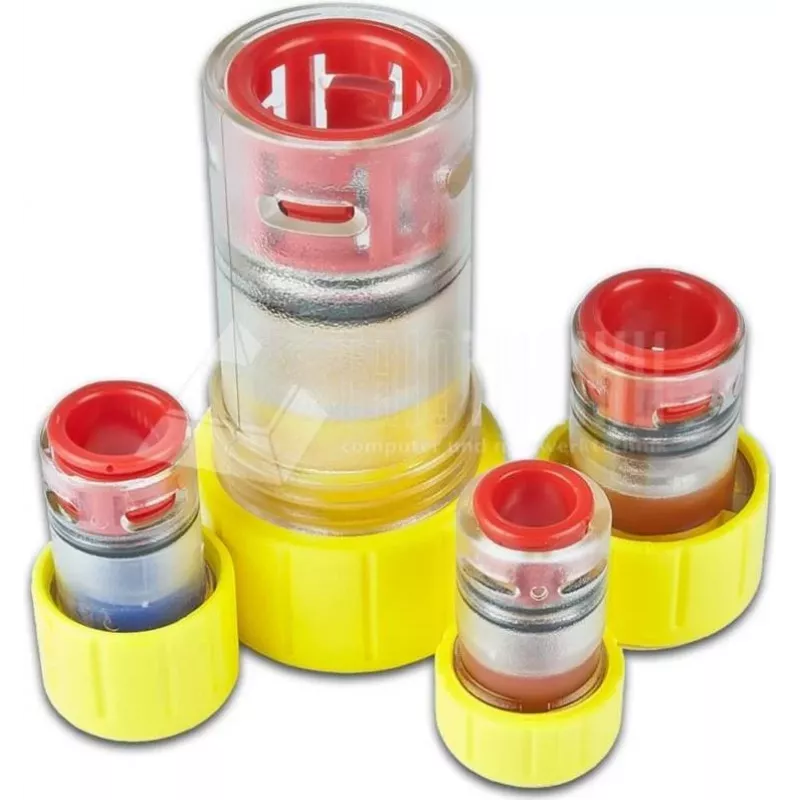

In fiber optic distribution boxes and splice closures, unused cable entry ports must be sealed to prevent gas and moisture ingress. The SLIM WIREWIN Lightwin End Cap with Cable Gland, model DC 10MM OUT 3-6MM, provides a gas-tight single-pull seal for one fiber optic cable with an outer diameter between 3 and 6 mm. The main body has a diameter of 10 mm, fitting standard Lightwin FTTx ports.

Key specifications

• Product type: Cable end cap with gland
• Sealing technology: Gas-Stop single-pull seal
• Application area: FTTx networks
• Compatible cable type: Fiber optic cable
• Number of cable entries: 1
• Main body diameter: 10 mm
• Cable outer diameter range: 3 - 6 mm
• Material: High-grade polymer (EPDM, TPE)
• Resistance: UV, weather, chemical
• Colour: Black

Why choose it

The single-pull design simplifies installation: insert the cable and pull to create a reliable seal. The polymer material withstands outdoor conditions, ensuring long-term protection for fiber connections.

Ideal use cases

• Sealing unused ports in fiber optic splice closures
• Cable entry sealing in distribution boxes
• Termination units in FTTx infrastructure

Good to know

The end cap is designed for use with Lightwin FTTx components and is compatible with cables from 3 to 6 mm outer diameter.
