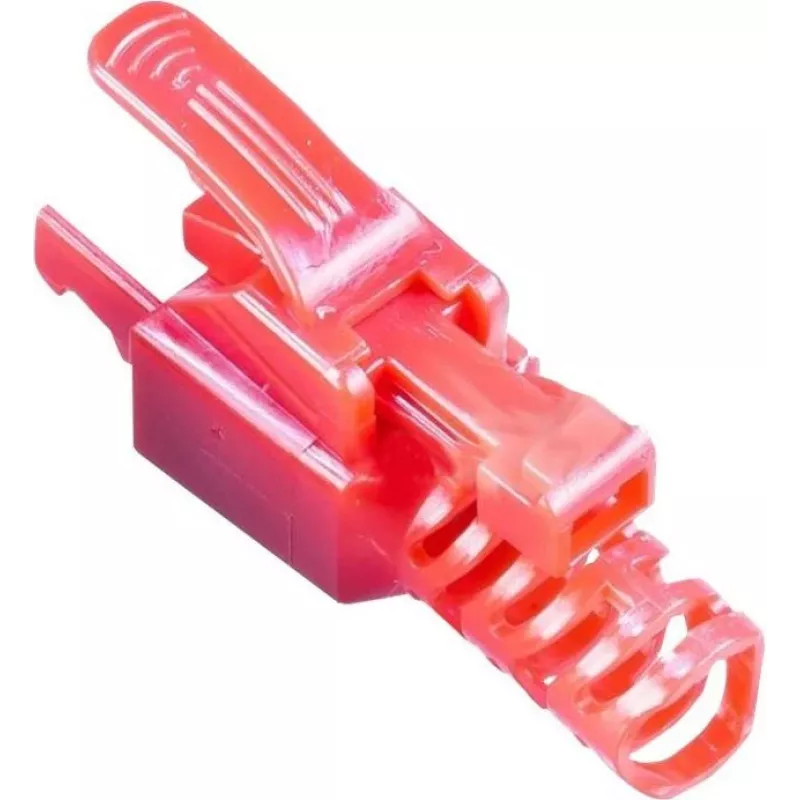

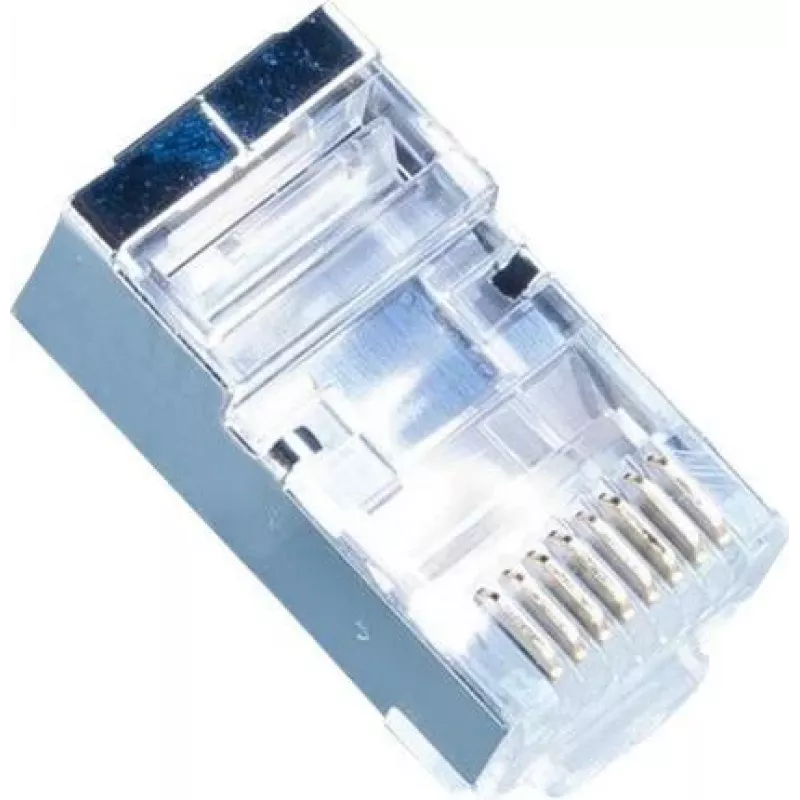

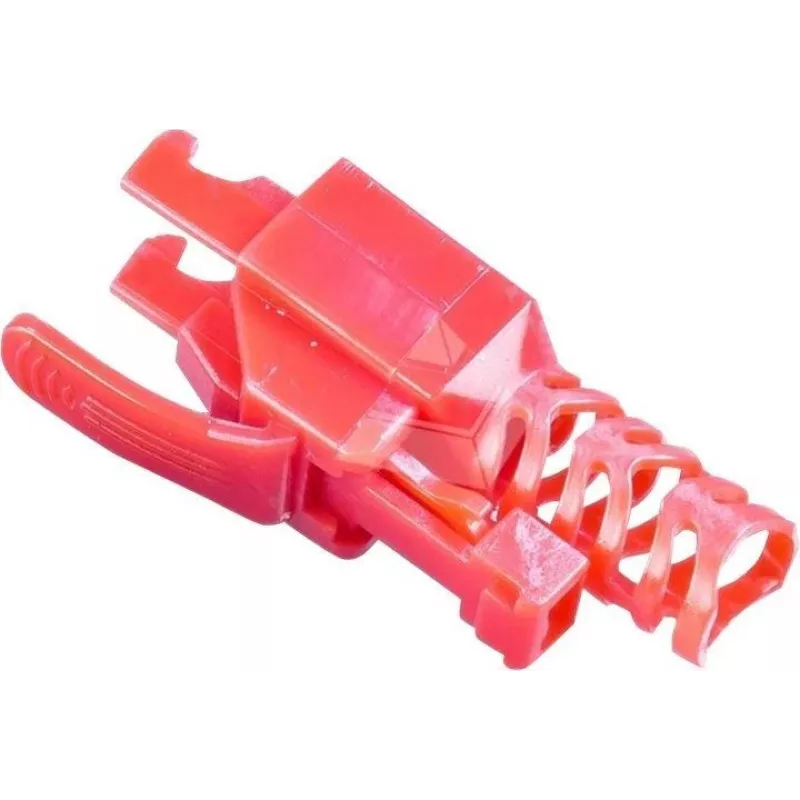

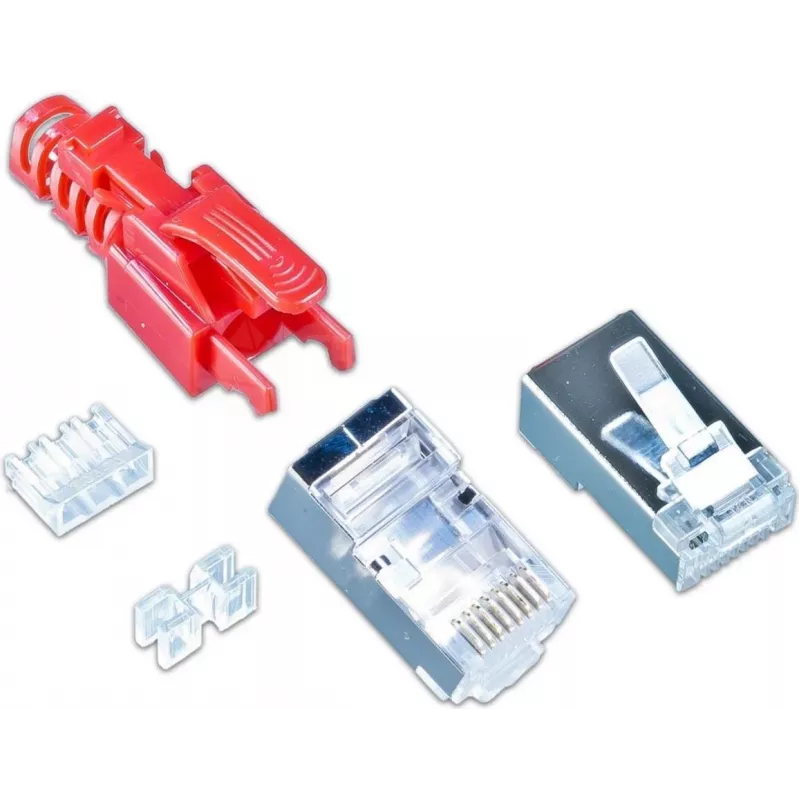

Wirewin MOD SL KAT6A STP 10 RT conector RJ-45, Cat.6A, STP, sin herramientas, rojo, pack de 10

In data centers and industrial networks, technicians need a fast, reliable way to terminate Cat.6A shielded cables in the field. The Wirewin MOD SL KAT6A STP 10 RT connector is a tool-less, reusable RJ-45 plug that supports 10 Gigabit Ethernet and Power over Ethernet, making it ideal for high-density patch fields and automation environments.

Key specifications

• Connector type: RJ-45
• Cable category: Cat.6A (Category 6A)
• Shielding: STP (Shielded Twisted Pair)
• Termination: Tool-less, field-terminable
• Data rate: 10 Gigabit Ethernet (10GBASE-T)
• PoE support: PoE, PoE+ (IEEE 802.3af/at)
• Wire compatibility: Solid and stranded, 22-26 AWG
• Wiring scheme: TIA/EIA 568A/B
• Contact plating: Gold-plated (50µm)
• Housing: Zinc die-cast
• Colour: Red
• Pack size: 10 pieces
• Reusable: Yes
• Operating temperature: -10°C to +60°C
• Insertion cycles: >750
• Insulation resistance: >500 MΩ
• Dielectric strength: 1000V AC RMS
• Flammability rating: UL 94V-0

Why choose it

The tool-less design eliminates the need for crimping tools, reducing installation time and errors. Its zinc die-cast housing provides robust shielding against EMI, ensuring signal integrity in noisy environments. Reusability allows for easy re-termination, saving costs on replacements.

Ideal use cases

• Data center cabling and patching
• Industrial Ethernet connections
• Office network installations
• High-speed backbone links

Good to know

Supports both solid and stranded conductors, offering flexibility for different cable types. The gold-plated contacts ensure reliable connectivity over many insertion cycles.
