Wirewin SLIM KAT6A 10 Gigabit Light Cable de parcheo, 1,0m, U/FTP, Ø 3,8mm, rojo, pack de 90 KAT6A LIGHT Apantallado (SLIM-LS-K6A 1.0 RD 90)

High-density network installations often suffer from bulky cables that block airflow and make cable management a nightmare. This slim Cat6A patch cable solves that problem with a 3.8 mm outer diameter, allowing you to pack more connections into racks and pathways without sacrificing 10 Gigabit performance.

Who is it for

Network administrators, data centre technicians, and structured cabling installers who need reliable, high-speed connectivity in space-constrained environments. Ideal for patch panels, switches, and server cabinets where every millimetre counts.

Main features

• Cat6A performance: supports 10GBASE-T Ethernet up to 500 MHz bandwidth.
• Slim design: 3.8 mm diameter reduces cable bulk and improves airflow.
• Shielded construction: S/FTP (screened/foiled twisted pair) for superior EMI/RFI protection.
• LSZH jacket: low smoke zero halogen material for safety in enclosed spaces.
• Gold-plated RJ45 connectors: 50 µm plating ensures reliable contact and corrosion resistance.
• PoE ready: supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt).

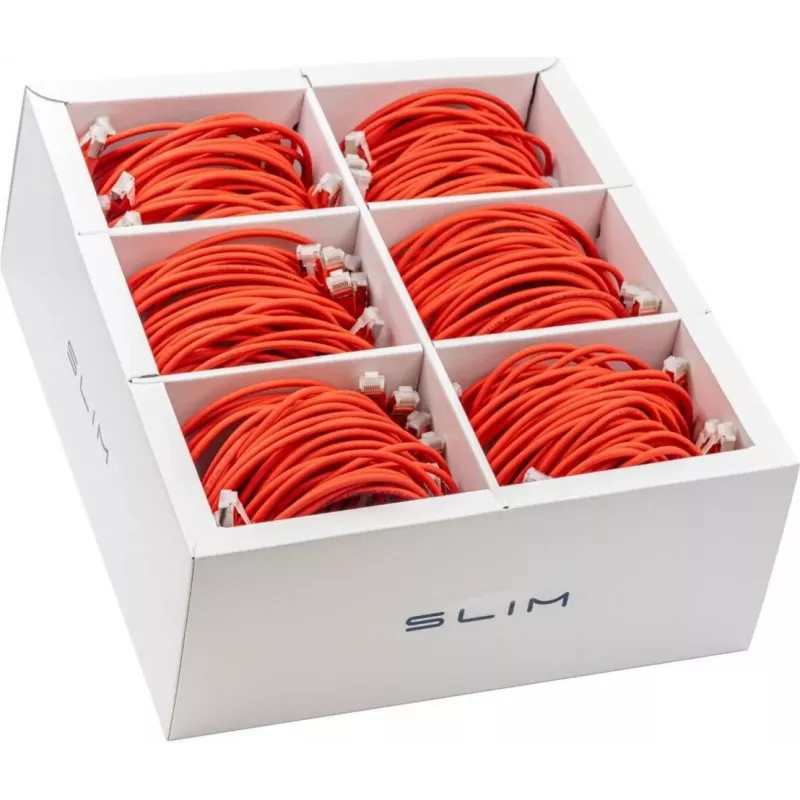

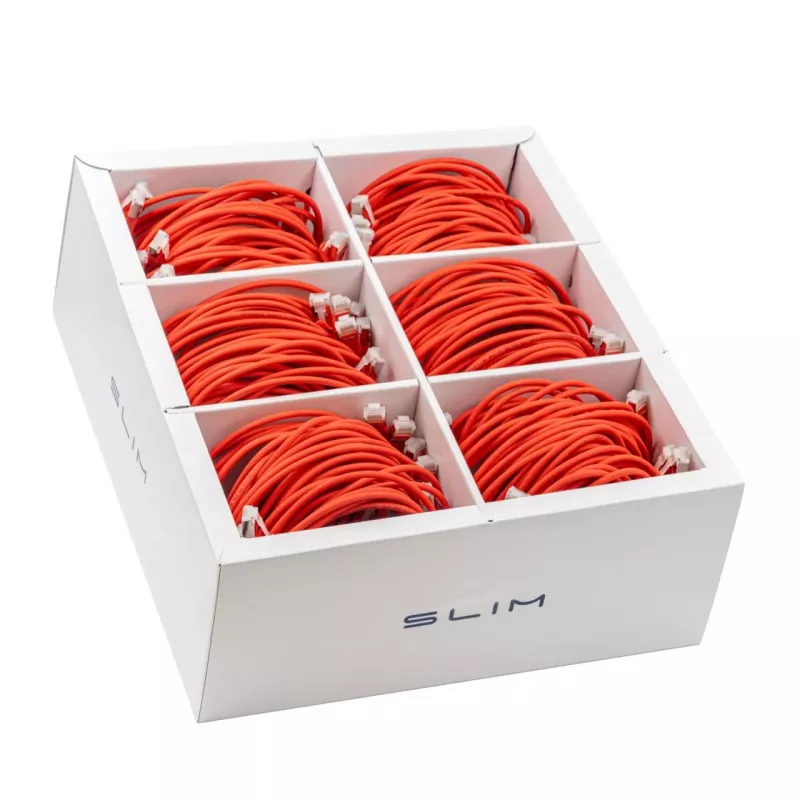

• Bulk pack: 90 cables per pack for large installations.

Specifications

• Cable type: Patch cable
• Category: Cat6A
• Shielding: S/FTP
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Length: 1.0 m
• Colour: Red
• Connector: RJ45, gold-plated (50 µm)
• Conductor: Copper, stranded, AWG 28
• Jacket: LSZH
• Outer diameter: 3.8 mm
• PoE support: PoE, PoE+, 4PPoE
• Standard compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Wiring: TIA/EIA 568B
• Halogen free: Yes

Tips

When installing multiple slim cables, use cable managers with narrow fingers to keep bundles organised and maintain the airflow benefits. For PoE applications, ensure your power sourcing equipment is compatible with the cable's gauge and length to avoid voltage drop.
