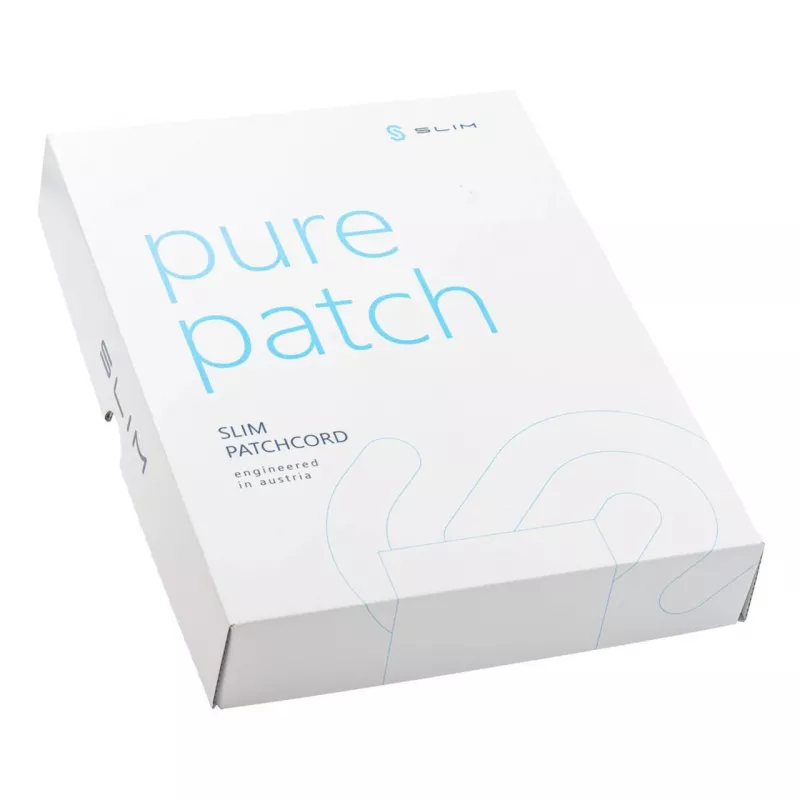

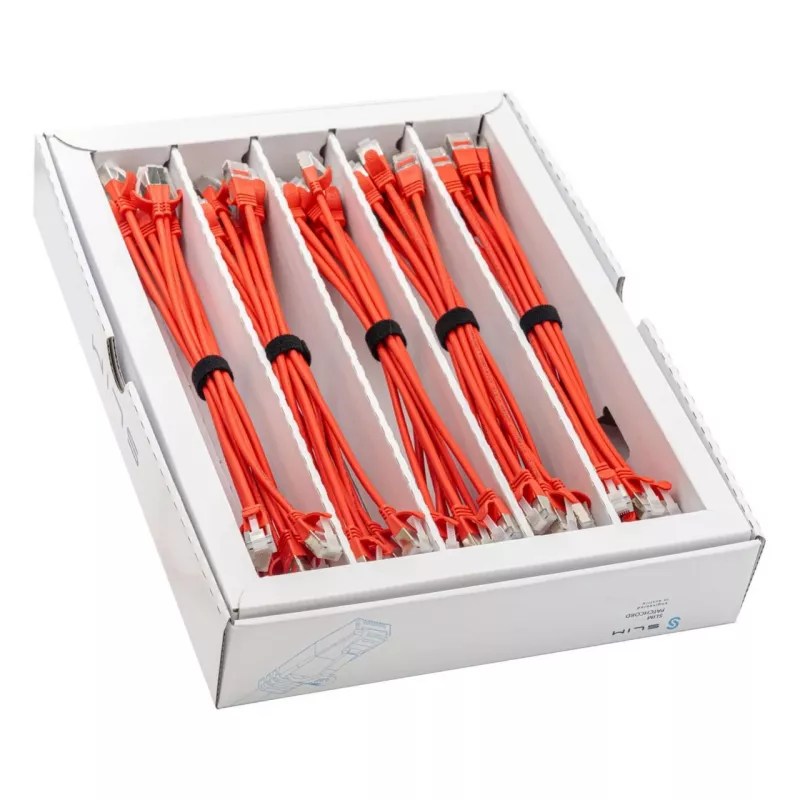

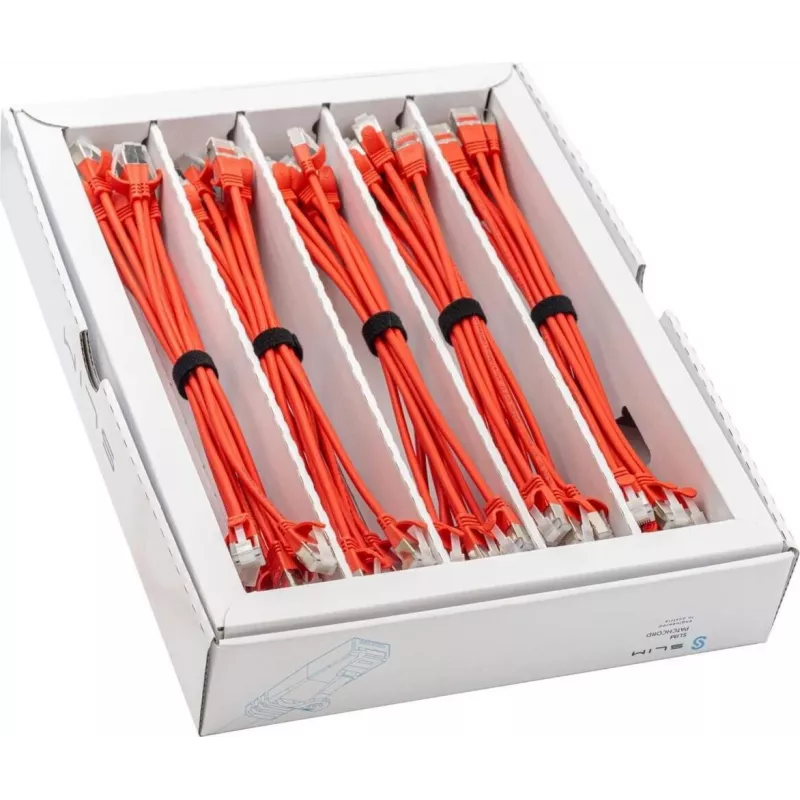

Wirewin SLIM-LS-K6A 0.25 RD 50 - Cable de red Ethernet Slim Cat.6A U/FTP, 0,25m, rojo, pack de 50

This 50-pack of SLIM WIREWINE SLIM-LS-K6A 0.25 RD delivers 10 Gigabit Ethernet performance in an ultra-slim 3.8 mm diameter, saving space in high-density racks. The U/FTP shielding with foil-wrapped pairs and LSZH jacket ensures signal integrity and safety, while gold-plated RJ45 connectors provide reliable connections.

Highlights

• Cat.6A (Class EA) performance up to 500 MHz for 10GBASE-T
• Ultra-slim 3.8 mm diameter ideal for dense patching
• U/FTP shielding: foil-wrapped pairs reduce crosstalk
• Gold-plated RJ45 connectors (50µ) for corrosion resistance
• LSZH jacket for low smoke and halogen-free safety
• Snagless boot and strain relief for durability
• Pack of 50 cables, each 0.25 m long, red colour

In daily use

These slim patch cables are built for data centers and server rooms where space is at a premium. The 0.25 m length is perfect for patching between adjacent ports, and the red colour aids in quick identification. The stranded copper conductors (AWG 30/7) maintain flexibility, while the LSZH jacket meets fire safety requirements for enclosed spaces.

Full specifications

• Cable Type: Patch Cable
• Ethernet Category: Cat.6A (Class EA)
• Shielding: U/FTP (foil shielded pairs)
• Data Transfer Rate: 10 Gbps
• Bandwidth: 500 MHz
• Length: 0.25 m
• Colour: Red
• Cable Diameter: 3.8 mm
• Pack Quantity: 50
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µ)
• Conductor Material: Copper (Cu)
• Conductor Gauge: AWG 30/7 (stranded)
• Jacket Material: LSZH
• Wiring Standard: TIA/EIA-568-B.2-10 (T568B)
• Compliance: ISO/IEC 11801, EN 50173
• Operating Temperature: -20°C to 60°C

Final note

A space-saving, high-performance solution for high-density 10G networks, available in a convenient 50-pack.
