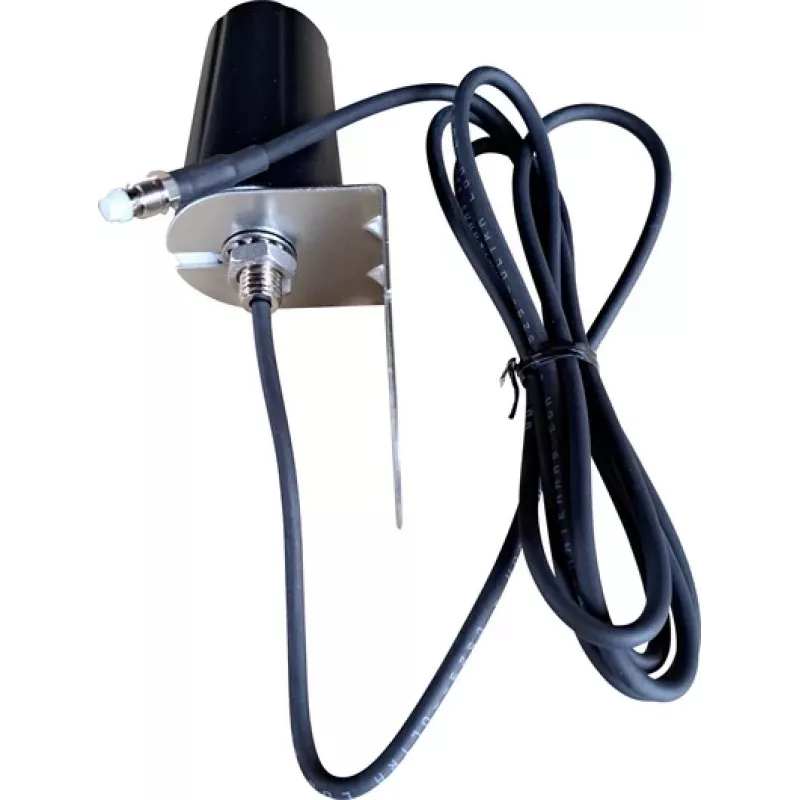

Wittenberg Antennen Antena omnidireccional 5G LTE, cable de 2 m, conector FME hembra, 50 ohmios, montaje en pared/mástil (Poly-103554)

Mobile network coverage can be unreliable indoors or in remote locations. This omnidirectional antenna from Wittenberg Antennen solves that by boosting 2G, 3G, 4G, and 5G signals across a wide frequency range. It works with standard 50-ohm equipment and includes a 2-meter cable for flexible placement.

Who is it for

Anyone needing better cellular reception in homes, offices, or industrial sites. It is especially useful for fixed wireless terminals, routers, and modems that accept an external antenna with an FME connector.

Main features

• Omnidirectional radiation pattern for 360° coverage
• Supports 2G, 3G, 4G, and 5G (sub-6 GHz) bands
• Three frequency ranges: 698–960 MHz, 1710–2700 MHz, 3300–3800 MHz
• Gain up to 4 dBi depending on band
• Vertical polarization
• FME female connector
• 2 m RG174 cable included
• Wall or mast mountable
• IP65 rated for outdoor use

Specifications

• Antenna type: Omnidirectional
• Frequency range: 698–960 MHz, 1710–2700 MHz, 3300–3800 MHz
• Gain: 2 dBi (698–960 MHz), 3 dBi (1710–2700 MHz), 4 dBi (3300–3800 MHz)
• Impedance: 50 Ohm
• Connector: FME female
• Cable length: 2 m
• Cable type: RG174
• VSWR: < 2.0
• Max power: 20 W
• Polarization: Vertical
• Mounting: Wall, mast
• Operating temperature: -30°C to +70°C
• IP rating: IP65

Tips

Mount the antenna as high as possible and away from metal obstructions for best performance. The omnidirectional design means you do not need to point it at a specific tower.
