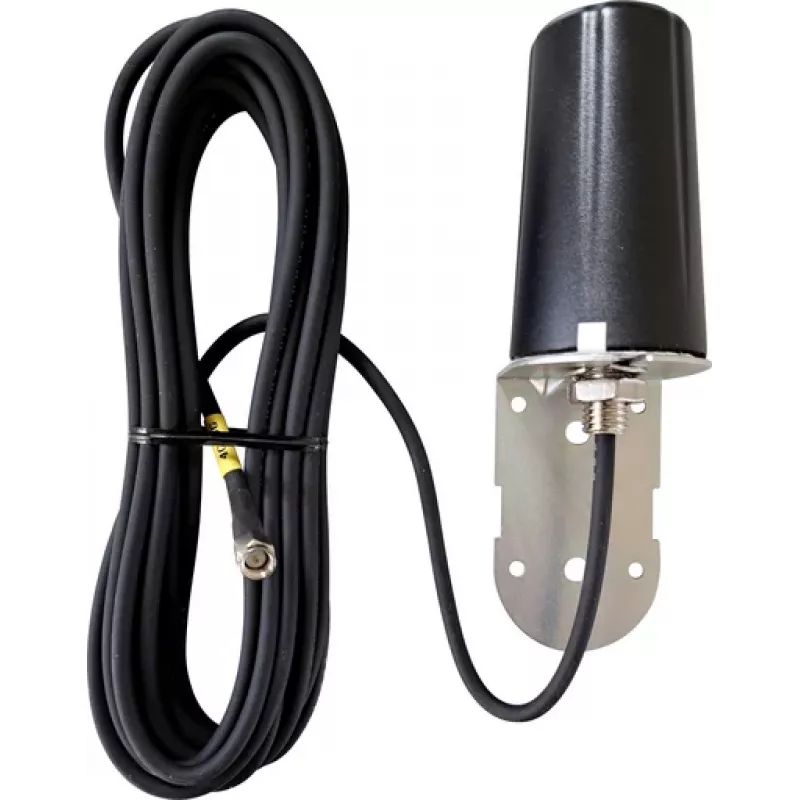

Wittenberg Antennen Antena omnidireccional 5G LTE con cable de 2 m SMA macho 50 ohmios montaje en pared/mástil (Poly-103547)

With a peak gain of 4 dBi in the 3300–3800 MHz band, this omnidirectional antenna is built for reliable 5G and LTE connectivity in outdoor and indoor installations.

Overview

The Wittenberg Antennen Poly-103547 is a versatile omnidirectional antenna supporting 5G, LTE, 4G, 3G, and 2G networks. It covers key frequency ranges from 698–960 MHz, 1710–2700 MHz, and 3300–3800 MHz, making it suitable for a wide range of cellular applications. The antenna features a 50 Ohm impedance and a VSWR of less than 2.0 for efficient signal transmission.

What stands out

• Omnidirectional radiation pattern for 360° coverage
• Supports 5G, LTE, 4G, 3G, and 2G technologies
• Wide frequency range: 698–960 MHz, 1710–2700 MHz, 3300–3800 MHz
• Peak gain up to 4 dBi
• Low-loss H-155 cable, 2 m length, terminated with SMA male connector
• UV-resistant ABS plastic housing with IP65 rating for outdoor durability
• Flexible mounting: wall or mast (up to 50 mm diameter)
• Operating temperature range: -40°C to +80°C

Technical details

• Antenna type: Omnidirectional
• Frequency ranges: 698–960 MHz, 1710–2700 MHz, 3300–3800 MHz
• Peak gain: 2 dBi (698–960 MHz), 3 dBi (1710–2700 MHz), 4 dBi (3300–3800 MHz)
• Impedance: 50 Ohm
• VSWR: < 2.0
• Polarization: Vertical
• Connector: SMA male
• Cable type: H-155 low loss, length 2 m
• Mounting: wall or mast (mast diameter up to 50 mm)
• Housing material: UV-resistant ABS plastic
• IP rating: IP65
• Operating temperature: -40°C to +80°C

Our verdict

A solid choice for reliable 5G/LTE signal reception in both indoor and outdoor setups, with robust construction and flexible mounting options.
