Wittenberg Antennen Poly-103555 Antena omnidireccional 5G LTE, cable de 0,5 m, conector N, 50 Ohm, blanco

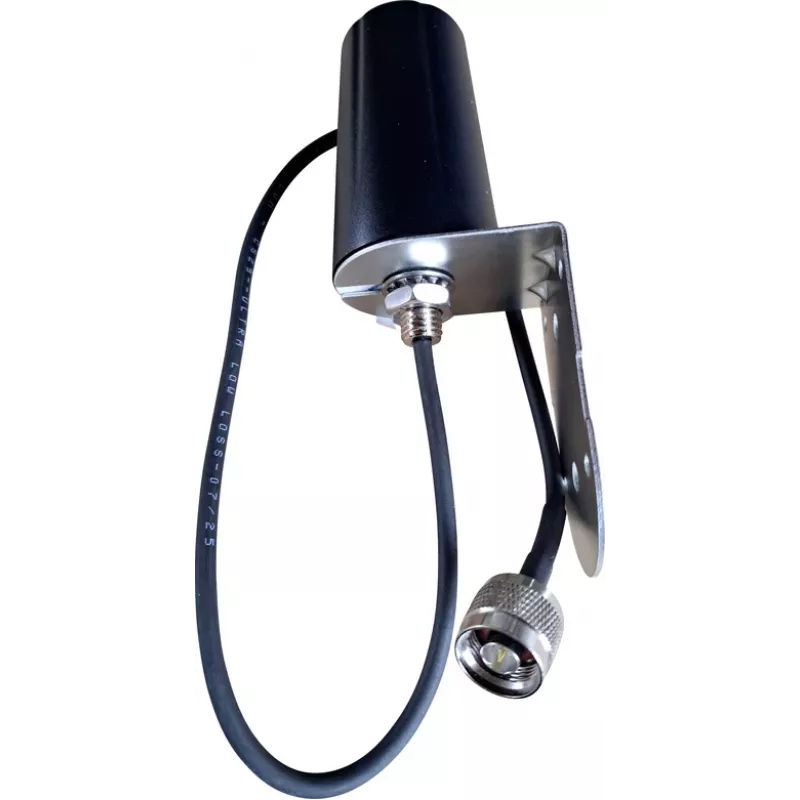

Omnidirectional antenna for 5G, LTE, GSM, UMTS, and WLAN networks, delivering reliable signal reception across a wide frequency range. Its rugged, UV-resistant ABS construction with IP67 rating ensures durability in outdoor environments, while the 0.5 m low-loss cable with N-type connector provides flexible installation options for wall or mast mounting.

Advantages

This antenna offers a broad frequency coverage from 698 MHz to 3800 MHz, making it compatible with multiple cellular and wireless standards. The vertical polarization and 2-5 dBi gain provide consistent performance, and the IP67 rating protects against dust and water ingress, ensuring long-term reliability outdoors.

Suitable for

• Enhancing 5G and LTE signal reception in remote or weak-coverage areas
• Outdoor installations on walls or masts for fixed wireless access
• IoT and M2M applications requiring omnidirectional coverage
• Backup connectivity for residential or commercial buildings

Key specifications

• Frequency range: 698-960 MHz, 1710-2700 MHz, 3300-3800 MHz
• Gain: 2-5 dBi
• Impedance: 50 Ohm
• Connector: N-type male
• Cable length: 0.5 m, H-155 low-loss
• Polarization: vertical
• VSWR: < 2.0
• Max input power: 20 W
• Operating temperature: -40°C to +80°C
• Material: UV-resistant ABS plastic, white

Recommendations

For optimal performance, mount the antenna as high as possible with a clear line of sight to the nearest cell tower. Ensure proper grounding and use weatherproof connectors for outdoor installations.
