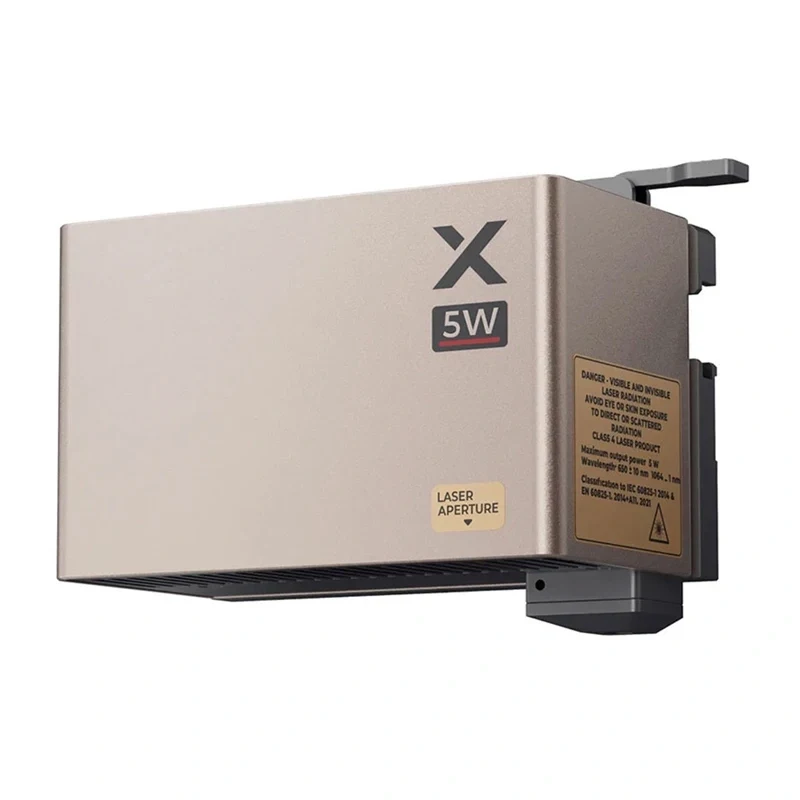

xTool módulo infrarrojo 5W

Jewelry designers and electronics engineers rely on the xTool 5W Infrared Module to mark precious metals, stainless steel, and PCBs with hairline precision. Its 1064nm diode laser and 0.03mm spot size deliver crisp, permanent engravings on materials that visible-light lasers struggle with.

Key specifications

• Laser type: Infrared diode laser, 5W optical power
• Wavelength: 1064nm, spot size: 0.03mm
• Engraves all metals, opaque plastics, some acrylics, leather, stone, glass, ceramics
• Limited cutting: up to 0.08mm stainless steel, thin plastics
• Manual lever focusing, integrated air cooling
• Module lifespan: >10,000 hours
• Compatible with xTool D1 Pro, M1, S1, P2 (P2 requires adapter)
• Software: xTool Creative Space, LightBurn
• Input: DC 24V from host machine, proprietary connector
• Operating temperature: 0°C to 35°C

Why choose it

The 1064nm wavelength is absorbed by metals without pre-treatment, unlike blue diode lasers. You get permanent, high-contrast marks on gold, silver, aluminum, and more, with a spot size fine enough for intricate logos, serial numbers, and QR codes. The module installs in minutes and works seamlessly with your existing xTool workflow.

Ideal use cases

• Jewelry engraving: rings, pendants, bracelets
• Industrial marking: tools, nameplates, medical instruments
• Electronics: PCB marking, component labeling
• Personalization: metal gifts, watches, keychains

Good to know

The module includes a protective cover, but always wear appropriate laser safety glasses. For xTool P2, an adapter is required.
