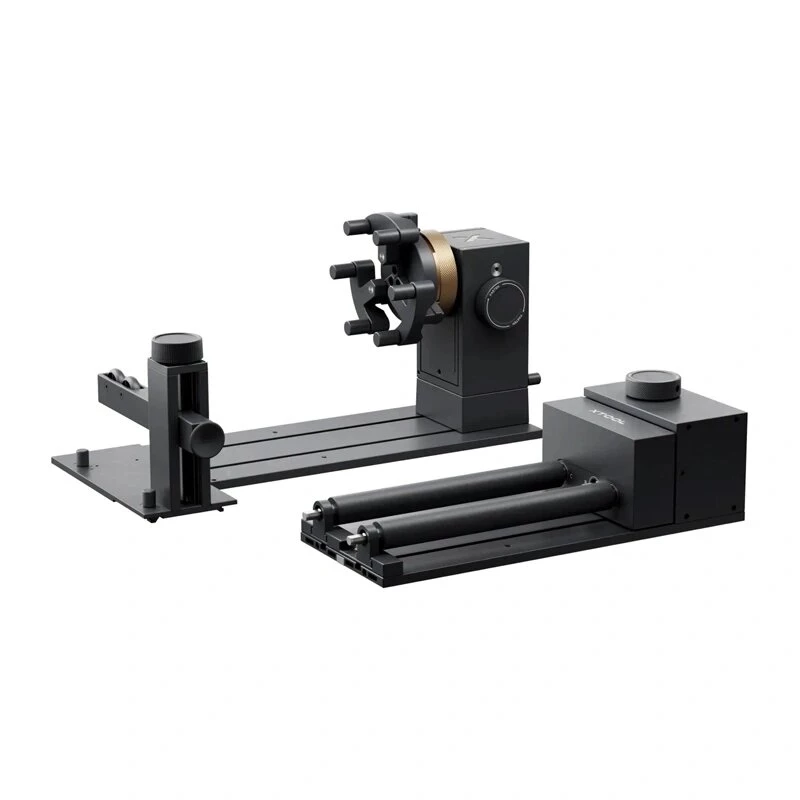

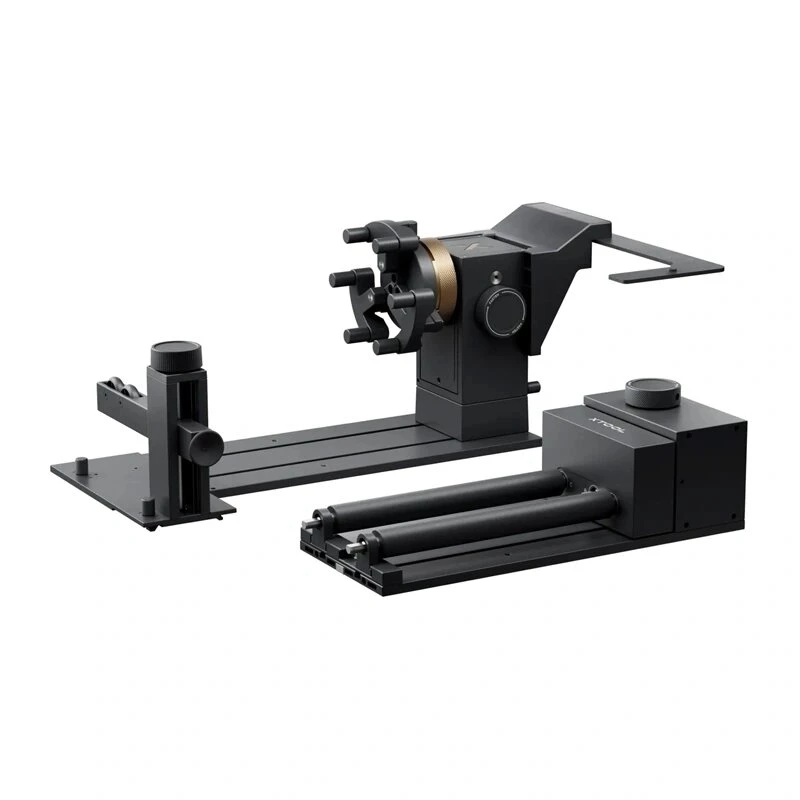

XTOOL RA3 Lite Adaptador giratorio – Accesorio rotativo 4 en 1 para grabador láser xTool (mandril, rodillo, anillo, bola)

Most rotary attachments force you to choose between cylinders or flat objects, but the XTOOL RA3 Lite Rotating Adapter breaks that limitation with four dedicated modes in one compact unit. Whether you need to engrave a pen, a tumbler, a ring, or even a baseball, the RA3 Lite switches between chuck, roller, ring, and sphere configurations in seconds. It plugs directly into the dedicated xTool port on D1, D1 Pro, M1, S1, and P2 laser engravers, drawing power and control signals without external adapters or complex wiring. Built from aluminum alloy and steel, it delivers stable, vibration-free rotation with a high-precision stepper motor that achieves 0.01 mm engraving accuracy and speeds up to 360°/s.

Highlights

• 4-in-1 rotary attachment: chuck, roller, ring, and sphere modes for maximum versatility
• Wide engraving range: chuck 1-100 mm, roller 3-195 mm, ring 11-100 mm, sphere 25-100 mm
• High-precision stepper motor with 0.01 mm engraving accuracy and up to 360°/s rotation speed
• Durable aluminum alloy and steel construction for stable, vibration-free operation
• Plug-and-play connection to xTool laser engravers; powered directly by the engraver
• Adjustable and removable tailstock for supporting longer or irregular objects
• Fully compatible with xTool Creative Space (XCS) software for seamless control

In daily use

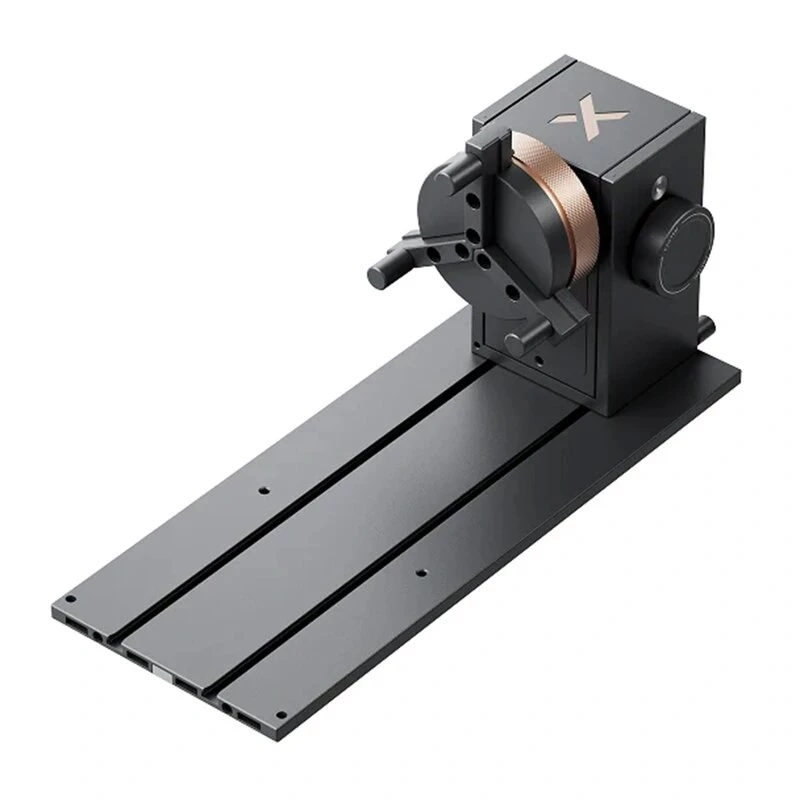

Set up the RA3 Lite in minutes: attach the appropriate module for your workpiece, connect the cable to your xTool engraver, and start engraving. The chuck mode securely grips cylindrical items like pens and tool handles, while the roller mode handles larger diameters such as tumblers and bottles. For rings and other small circular objects, the ring mode provides precise rotation, and the sphere mode allows 360° engraving on balls and spherical items. The adjustable tailstock supports longer or irregular workpieces, preventing wobble and ensuring consistent results. Because the RA3 Lite is powered by the engraver itself, there are no extra power bricks or cables cluttering your workspace.

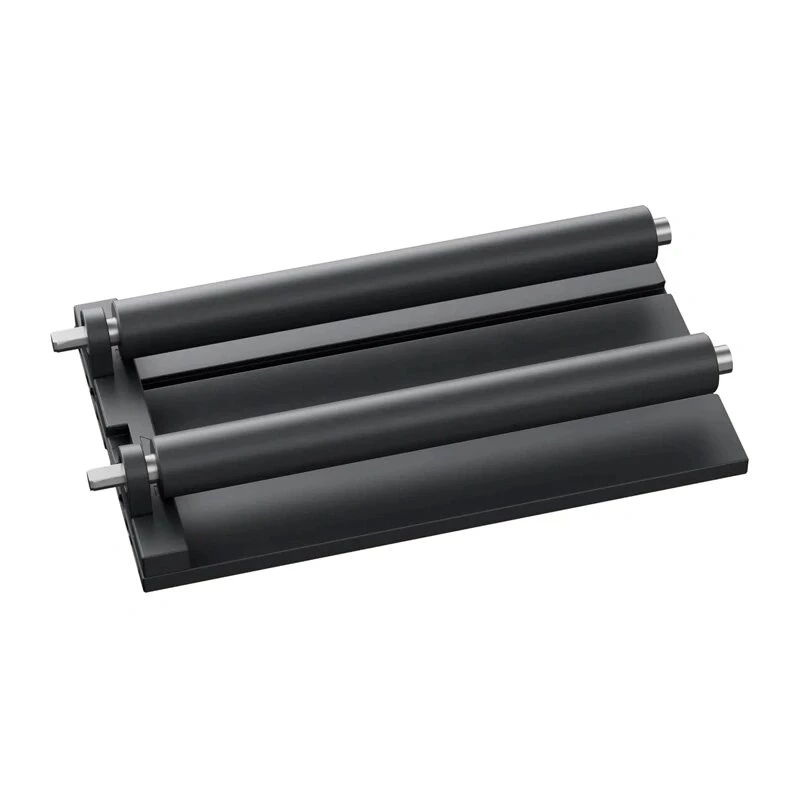

Full specifications

• Product type: 4-in-1 rotary attachment
• Compatibility: xTool D1, D1 Pro, M1, S1, P2 laser engravers
• Operating modes: chuck, roller, ring, sphere
• Chuck engraving diameter range: 1–100 mm
• Roller engraving diameter range: 3–195 mm
• Ring engraving diameter range: 11–100 mm
• Sphere engraving diameter range: 25–100 mm

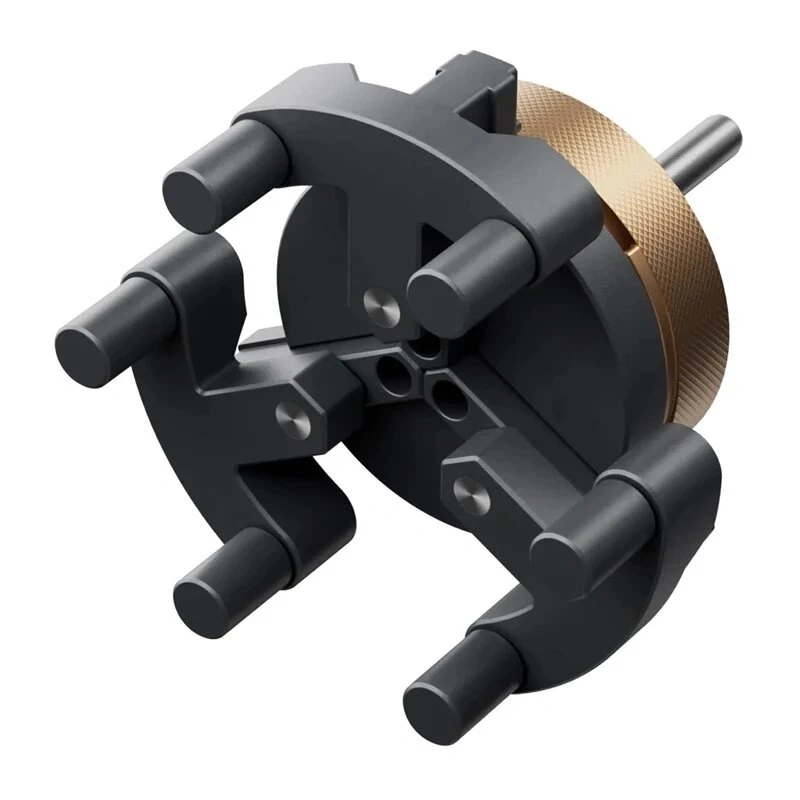

• Chuck type: 3-jaw chuck
• Tailstock: adjustable, removable
• Motor type: high-precision stepper motor
• Engraving accuracy: 0.01 mm
• Maximum engraving speed: up to 360°/s
• Material construction: aluminum alloy, steel
• Connection interface: dedicated xTool port
• Control software: xTool Creative Space (XCS)
• Application: cylindrical objects, rings, spheres, irregular shapes, mugs, tumblers, pens, baseballs
• Installation: plug-and-play
• Rotation angle: 360° continuous
• Power source: powered by connected xTool laser engraver
• Included accessories: chuck jaws, roller module, tailstock, connection cables, support feet

Final note

The XTOOL RA3 Lite Rotating Adapter is an essential upgrade for any xTool laser engraver owner who wants to expand beyond flat materials. Its four-in-one design, precision engineering, and seamless integration with XCS software make it the most versatile rotary solution in its class.
