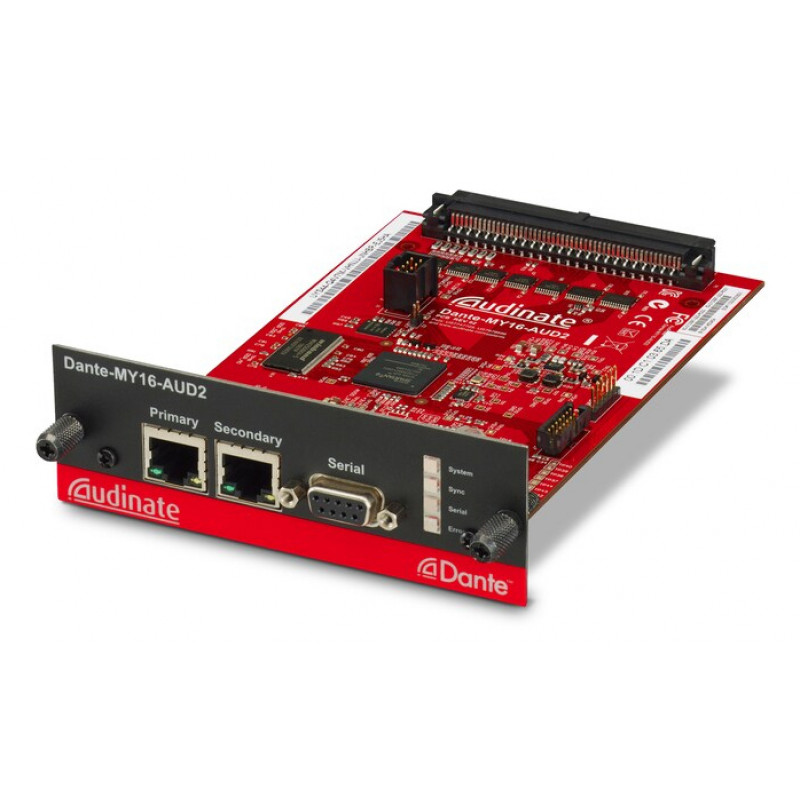

Yamaha Dante-MY16-AUD2 - Tarjeta de interfaz Dante 16 canales digitales In/Out, 2x RJ-45, 24-bit

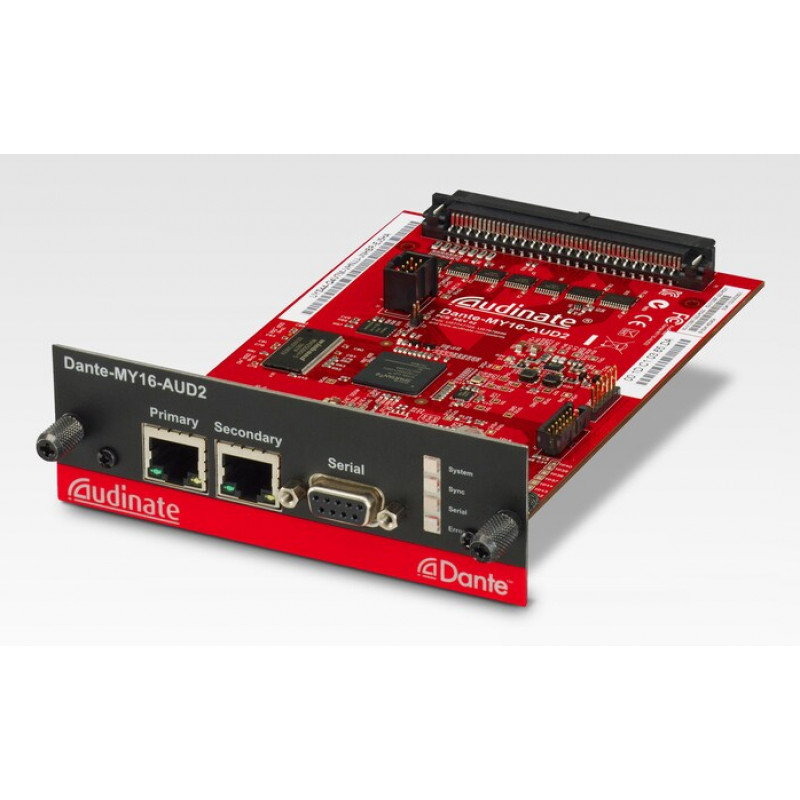

The Yamaha Dante-MY16-AUD2 is a high-performance Dante interface card designed for Yamaha digital mixing consoles and processors equipped with Mini-YGDAI expansion slots. It provides 16 channels of digital audio input and output over a standard Ethernet network, enabling flexible and scalable audio networking for live sound, installed sound, and broadcast applications.

Advantages

Seamlessly integrate your Yamaha console into a Dante audio network with low latency and high reliability. The dual RJ-45 ports support redundant network configurations for fail-safe operation. With support for sample rates up to 96 kHz and 24-bit resolution, the Dante-MY16-AUD2 ensures pristine audio quality.

Suitable for

• Live sound reinforcement
• Installed sound systems
• Broadcast and recording studios
• Corporate AV and houses of worship

Key specifications

• Card Type: Mini-YGDAI (MY) Expansion Card
• Digital Audio Protocol: Dante
• Input Channels: 16
• Output Channels: 16
• Total I/O Channels: 32 (16 In / 16 Out)
• Supported Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Bit Depth: 24-bit

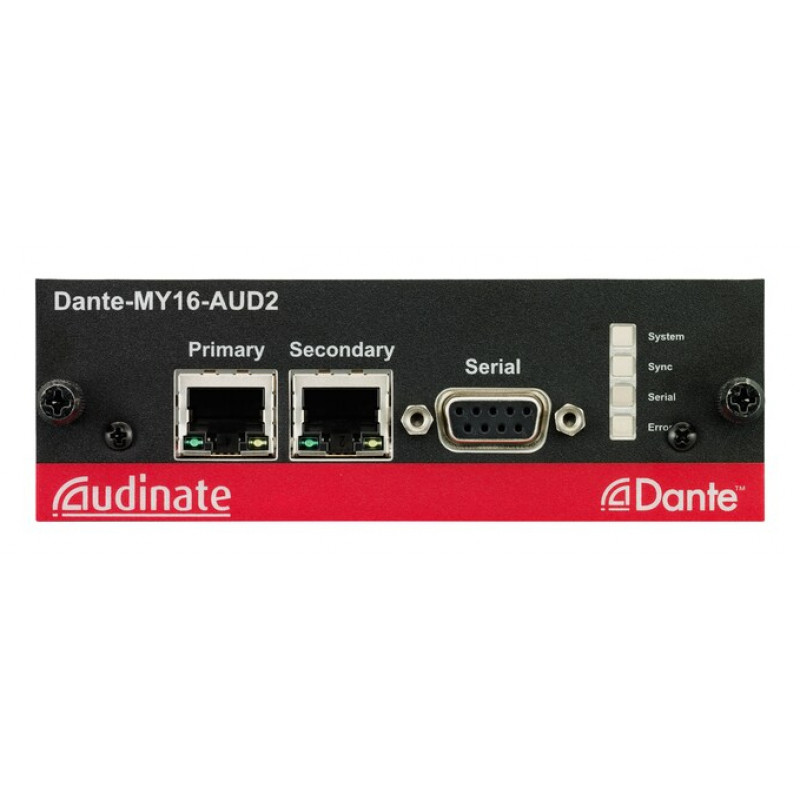

• Network Ports: 2 x RJ-45 (Primary/Secondary)
• Network Speed: Gigabit Ethernet
• Network Redundancy: Yes (Dante Redundant Network Support)
• Latency: Configurable (e.g., 0.25ms, 0.5ms, 1ms, 2ms, 5ms)
• Clock Synchronization: Dante Master/Slave, Word Clock via host
• Compatibility: Yamaha digital mixers and processors with Mini-YGDAI slots
• Control Software: Dante Controller
• Power Source: Powered by host device

Recommendations

For optimal performance, use Category 6 or higher Ethernet cables and configure redundant network paths when reliability is critical. The Dante-MY16-AUD2 is an ideal solution for expanding the I/O capabilities of your Yamaha console in a Dante-based audio network.
