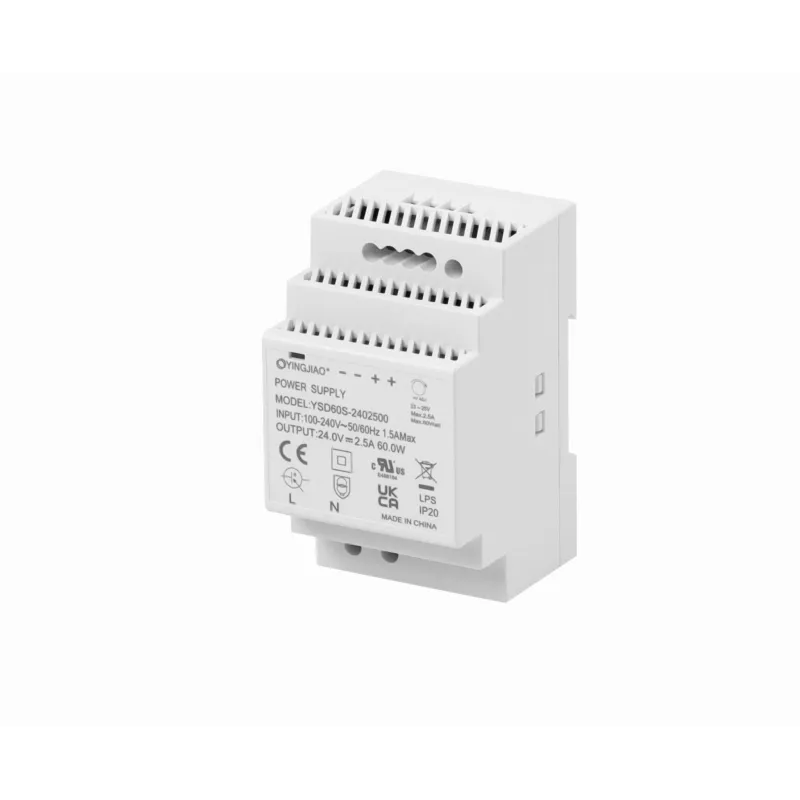

YINGJIAO YSD60S-2402500 Fuente de alimentación para carril DIN 24V 60W 2,5A

The YINGJIAO YSD60S-2402500 is a high-efficiency DIN rail power supply designed for industrial automation and control systems. It delivers a stable 24V DC output with 60W power and 2.5A current, ensuring reliable performance for a wide range of applications. With universal AC input and comprehensive protection features, this power supply is ideal for use in control cabinets, building automation, and machinery.

Advantages

Compact design for easy DIN rail mounting, high efficiency of 88% reduces energy loss, and robust protection against overload, overvoltage, and short circuits ensures long-lasting operation. Wide input voltage range (85-264V AC / 120-370V DC) makes it suitable for global use.

Suitable for

• Industrial control systems
• Building automation
• PLC and sensor power supply
• Telecommunication equipment
• LED lighting systems

Key specifications

• Output Voltage: 24V DC (adjustable 21.6-26.4V)
• Output Current: 2.5A
• Output Power: 60W
• Input Voltage: 85-264V AC / 120-370V DC
• Input Frequency: 47-63 Hz
• Efficiency: 88%
• Ripple & Noise: <150mVp-p
• Protection: Overload (OLP), Overvoltage (OVP), Short Circuit (SCP)
• Operating Temperature: -20°C to +70°C
• Cooling: Free Air Convection
• Isolation Voltage: 3kV AC (Input-Output)
• Housing Material: Plastic
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation and avoid exceeding the rated load. This power supply is a reliable choice for demanding industrial environments.
