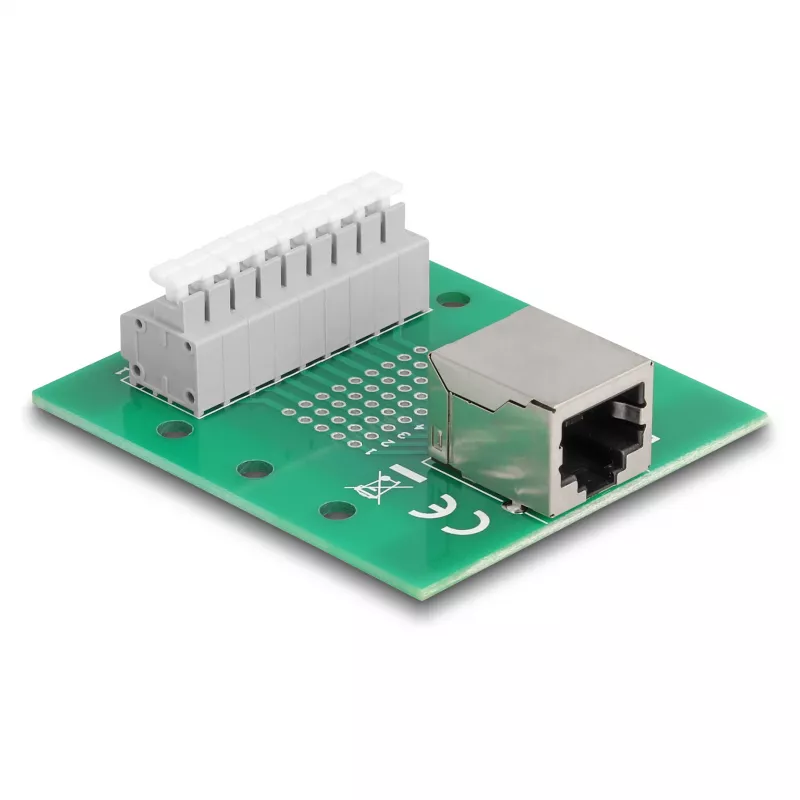

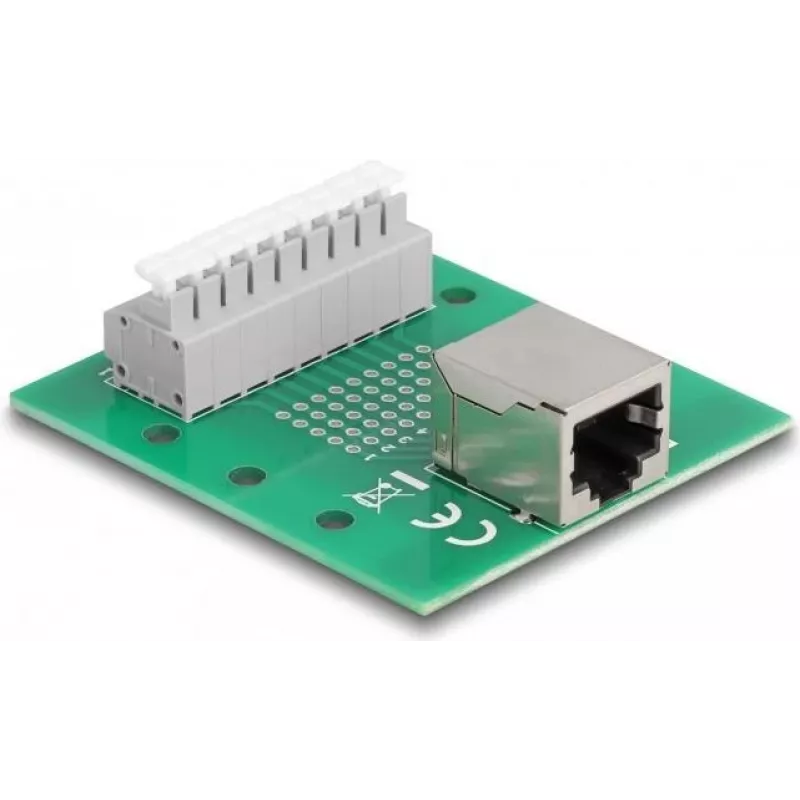

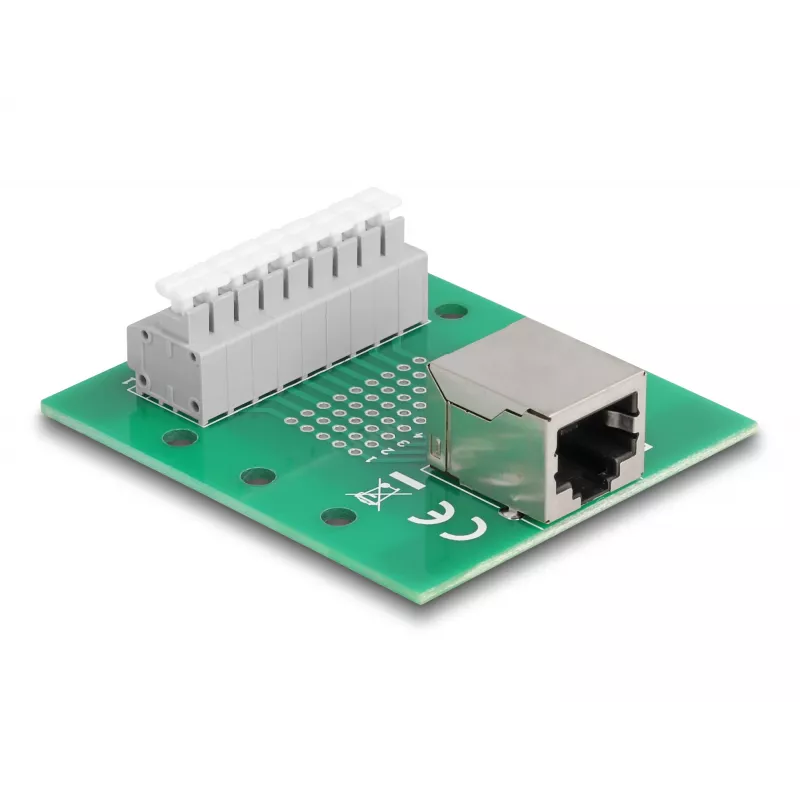

Delock conector hembra RJ45 a bloque de terminales con pulsador para carril DIN 66992

This Delock RJ45 female to terminal block adapter with push button is designed for secure DIN rail mounting, enabling reliable connection of network cables to screwless terminals. The push-button mechanism allows tool-free wire termination, simplifying installation in industrial environments.

Advantages

The adapter features a 1:1 pin assignment and supports wire gauges from 26 to 16 AWG (0.14 to 1.5 mm²), accommodating a wide range of cable sizes. Its plastic housing ensures durability and insulation, while the DIN rail mount provides stable integration into control cabinets.

Suitable for

• Industrial Ethernet applications
• Control cabinet installations
• Building automation systems
• Network infrastructure requiring screwless terminations

Key specifications

• Connector 1: RJ45 female
• Connector 2: 9-pin terminal block with push button

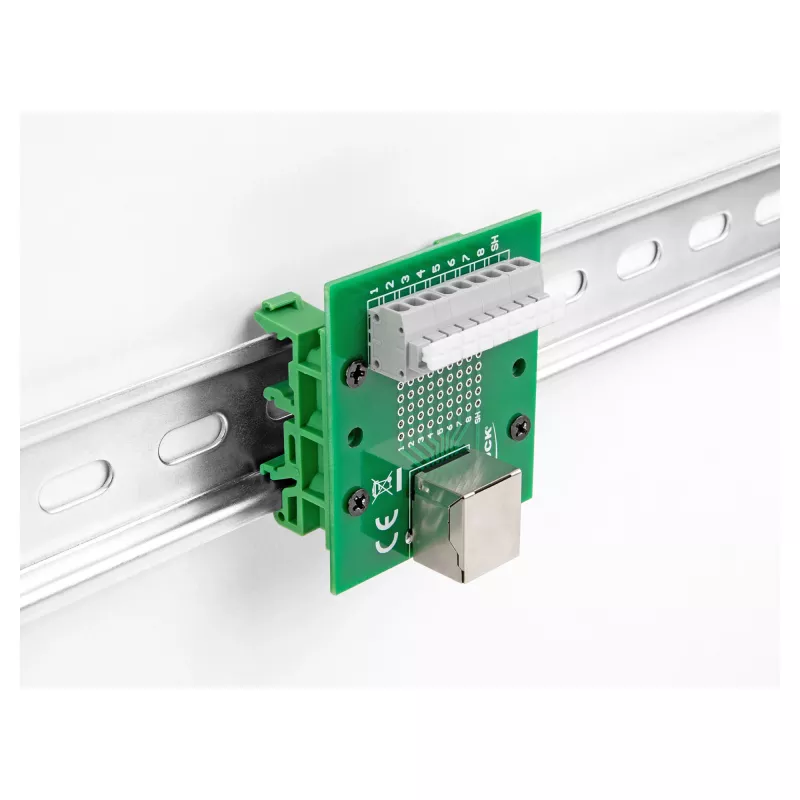

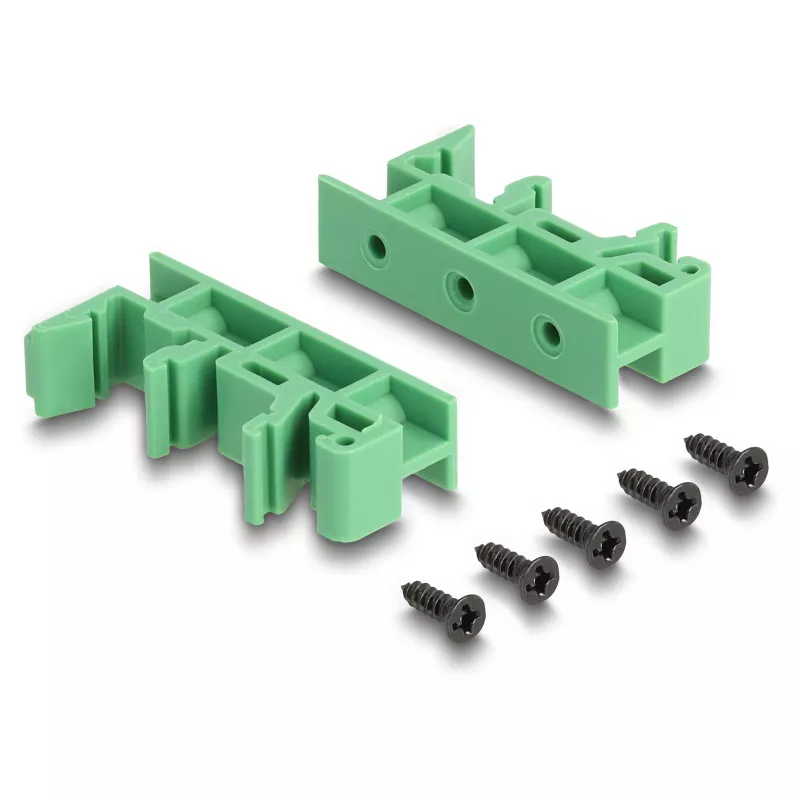

• Mounting: 35 mm DIN rail
• Wire gauge: 26 - 16 AWG (0.14 - 1.5 mm²)
• Pin assignment: 1:1
• Max. voltage: 125 V
• Max. current: 1.5 A
• Operating temperature: -20 °C to 75 °C
• Housing material: Plastic
• Colour: Grey

Recommendations

Ideal for professionals needing a compact, tool-free RJ45 termination solution on a DIN rail, ensuring reliable connections in industrial settings.
