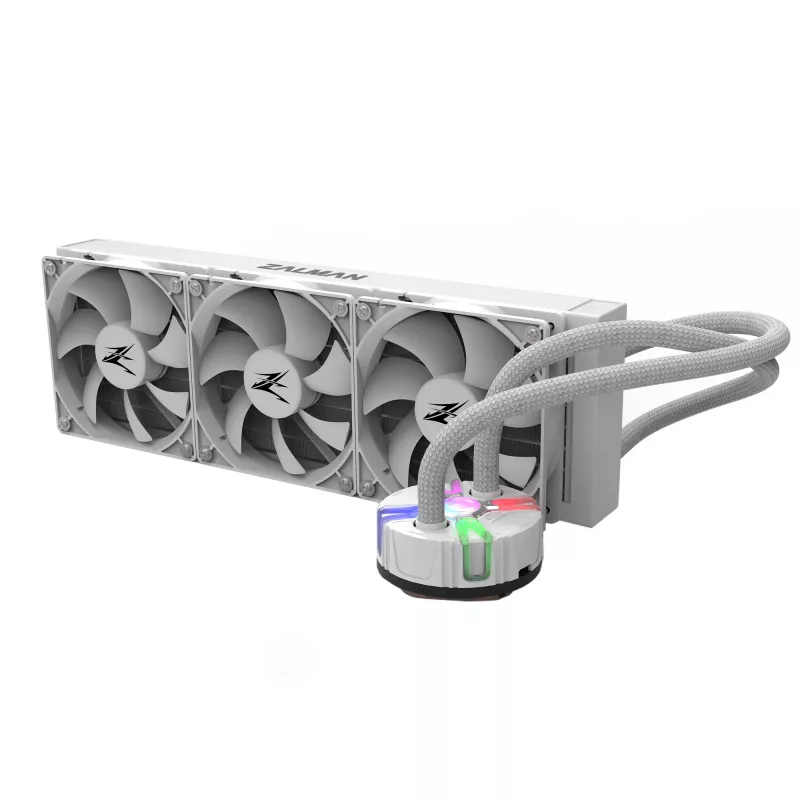

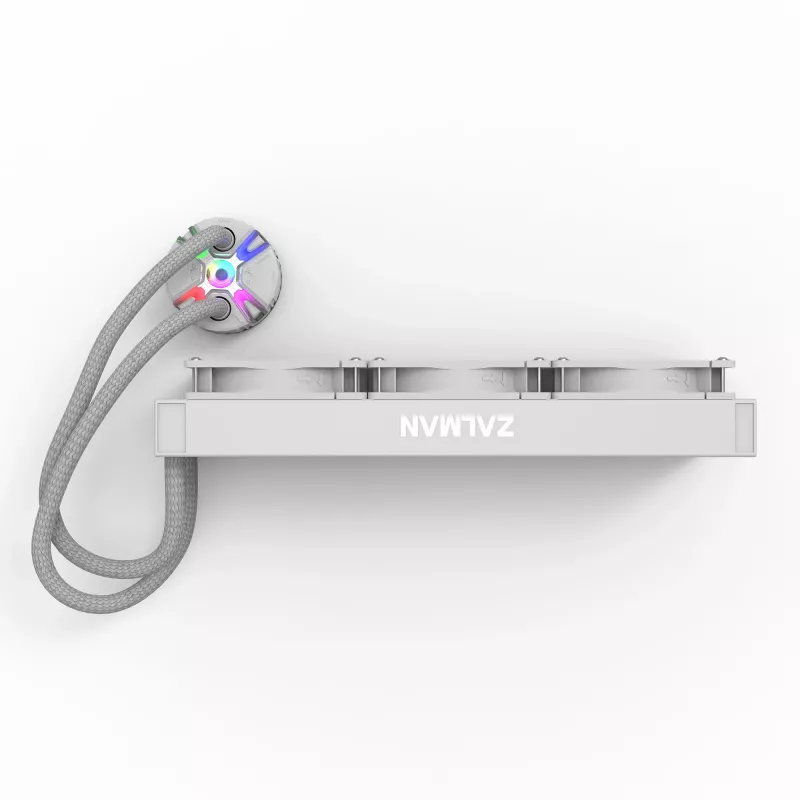

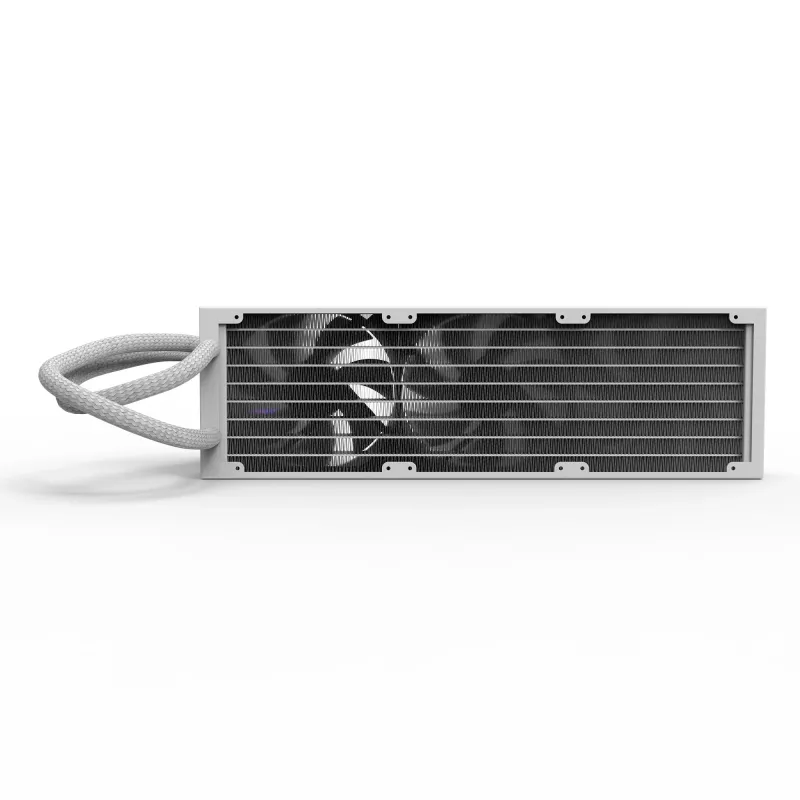

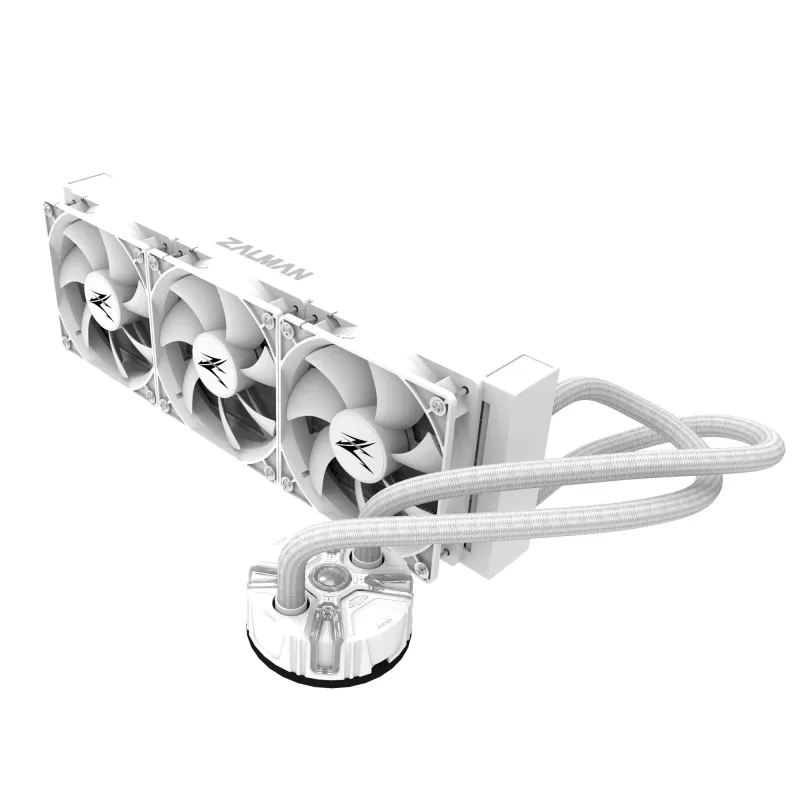

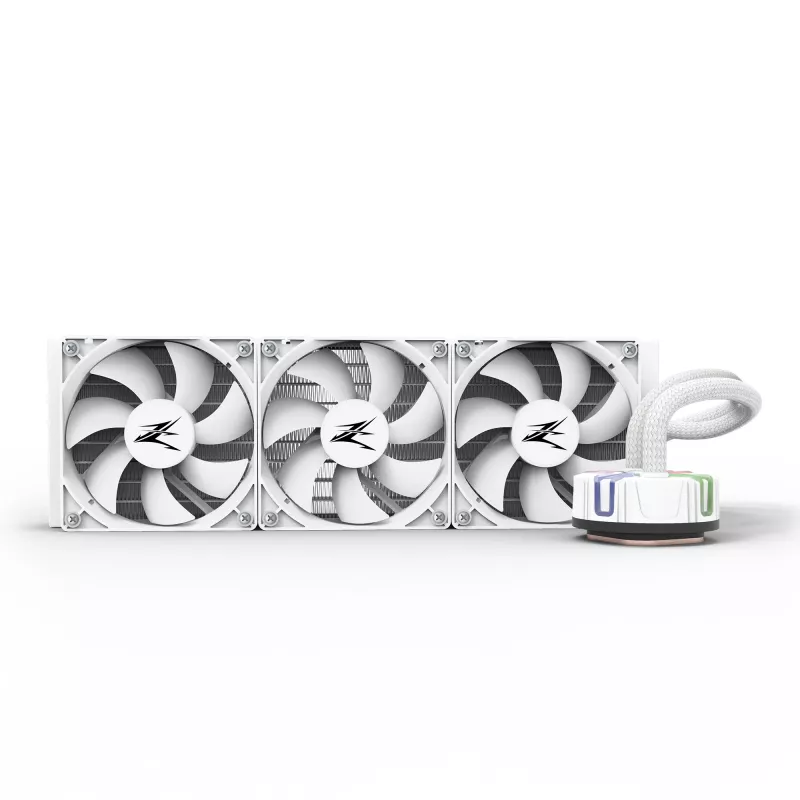

Name: Zalman Reserator5 Z36 blanco refrigeración líquida para ordenador chipset 12 cm
Brand: ZALMAN
SKU: 1194610
Price: 95.46 EUR
Availability: InStock

Zalman Reserator5 Z36 blanco refrigeración líquida para ordenador chipset 12 cm

Zalman Reserator5 Z36 blanco refrigeración líquida para ordenador chipset 12 cm

0 opiniones • Escribir una opinión

95,46 €

Acumulas +0,32 €

Zalman Reserator5 Z36 Black, CPU Liquid Cooler 360mmFully compatible with the latest high performance processors of Intel and AMD RyzenIt is fully compatible with the latest intel's processors as well as AMD Ryzen. Power management technology for each processor is seamless, so you don't have to worr... Leer más

Cant.

Añadir al carrito

Añadir a la lista de deseos Comparar este producto

Stock 8 Código 1194610 Marca ZALMAN Modelo RESERATOR5 Z36 WHITE COMPUTER LIQUID COOLING Garantía 2 años

Envíos y devoluciones

Entrega estimada Miércoles, Octubre 21

Te mantendremos informado a través de nuestro sistema de seguimiento detallado

Opciones de pago

Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Vista rápida

Refrigeración líquida todo en uno para CPU Cougar Poseidon Vistek Pro 240, ARGB, ventilador de 120 mm, 700–2500 RPM, negra

122,68 €

Sin IVA:101,38 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Sistema de refrigeración para procesador Cooler Akasa AK-CCE-7105EP 9,2 cm negro plata

31,71 €

Sin IVA:26,21 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

SilverStone Argon Serie AR10-115XP - Disipador de CPU - (zócalo LGA1156, zócalo LGA1155, zócalo LGA1150, zócalo LGA1151) - Aluminio y cobre - 70 mm

40,59 €

Sin IVA:33,55 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

MODECOM Volcano 0C T201 ARGB disipador de CPU por aire 12 cm blanco

34,45 €

Sin IVA:28,47 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Disipador de CPU Jonsbo CR-1000MAX V2 Color PWM RGB, negro

28,23 €

Sin IVA:23,33 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

ASRock Steel Legend 360 Refrigeración líquida para CPU con radiador de 360 mm, pantalla RGB

118,14 €

Sin IVA:97,64 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Disipador de CPU Jonsbo CB80 de doble torre con 2 ventiladores PWM RGB de 120 mm – negro

47,82 €

Sin IVA:39,52 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Sistema de refrigeración para PC REDRAGON CCW-1019 refrigeración eficiente

70,77 €

Sin IVA:58,48 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Zalman RESERATOR5 Z24 ARGB negro sistema de refrigeración para ordenador procesador refrigeración líquida todo en uno 12 cm

119,66 €

Sin IVA:98,89 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Jonsbo XA-360W Refrigeración líquida todo en uno para CPU de 360mm, PWM, ARGB, blanca

47,00 €

Sin IVA:38,85 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Zalman Reserator5 Z36 Black, CPU Liquid Cooler 360mm

Fully compatible with the latest high performance processors of Intel and AMD Ryzen
It is fully compatible with the latest intel's processors as well as AMD Ryzen. Power management technology for each processor is seamless, so you don't have to worry about compatibility issues.

Convenient control of individual RGB LED colors and effects via dedicated software
- Control your entire addressable RGB devices through dedicated software
- Personalize your system's visual effect

5V 3-pin Addressable RGB
Exclusive design of ARGB effect from Zalman. Control your ARGB with motherboard that supports 3-pin 5V RGB SYNC.

Dual blade water pump
Dual blade water pump is highly effective on increasing flow of coolant to maximize cooling performance.

Innovative dual blade water pump design for optimal cooling
Dual blade water pump design provides more and faster circulation of coolant for maximum cooling performance (Up to 0.85L/Min).
- Independent operation of intake and exhaust prevents pump overload
- Extend the life of the pump
- Improved cooling performance by minimizing residual fluid inside
- Reduced noise due to pump operation at low RPM
- Fully-enclosed structure design prevents leakage

Pure copper
Cools down the CPU temperature more effectively.

Micro-skived Fin Cu Base
0.15 mm Micro-skived Fin is applied to secure the maximum heat dissipation area (220 cm2).

Dual channel PWM Control
Unlike other liquid coolers that operate at full speed, DCPC (Dual Channel PWM Control) can control speed according to user's custom optimization settings. Precise PWM control fans and pumps to minimize noise, maximize airflow.

Sturdy Braided Nylon Sleeve and Rubber Tube
Durable, flexible design against temperature fluctuation and high pressures.

Aluminum Radiator with Maximum Heat Dissipation Area
- Heat dissipation fins in aluminum radiator provides great airflow
- Fast cooling of coolant
- Pull and push set up for maximized air flow

Mounting holes on both sides
For easy installation.

Fan blade design
- Minimized noise level and vibration
- Optimized air flow and high air pressure

Long life-span, EBR bearing
EBR bearing prevents dust from entering into a housing and provides more stable, low-noise, and durable cooling.

Specificaties
Model: Reserator5 Z36 (Black)

Pump
Dimensions (l x w x h): 82 x 82 x 40 mm
Materials: PPS, PC, Pure Copper, Pure Aluminum
Speed: 1.000 ~ 2.100 RPM
Bearing Type: Ceramic Bearing
Water Flow: Min. 0.7L/min Max. 0,85L/min
Rated Voltage: 12 V
Rated Current: 0.35 A
Power Consumption: 4.2 W

Radiator
Dimensions: 120 x 397 x 27 mm
Materials: Pure Aluminum

Fan
Dimensions: 120 mm
Bearing Type: EBR-lager
Speed: 800 ~ 2.000 RPM
Max.Noise Level: 37dB(A)
Max. Air Pressure: 2.92 mm H2O
Life Span: 50.000 uur
Connector type: 4 Pin
Control Method: PWM-besturing
Rated Voltage: 12 V
Rated Current: 0.35 A
Power Consumption: 4.2 W
Thermal Compound: ZM-STC8
Socket Compatibility Intel: LGA1200/115X/2011/2011-V3/2066 AMD: AM4/AM3+/AM3/FM2+/FM2

How to use

Install the radiator in a compatible case position that supports a 360 mm radiator using the mounting holes on both sides. Mount the pump/block onto the CPU following the included bracket instructions for the matching socket and ensure the micro-skived copper base contacts the CPU surface with the supplied thermal compound. Connect the pump and fan to motherboard headers: pump to 4-pin/PWM and ARGB to a 5V 3-pin header for lighting control. Use the motherboard software or supported controller to configure fan curves and ARGB effects.

Recommendations

For reliable performance, verify case clearance for a 360 mm radiator before purchase, ensure a 5V 3-pin ARGB header if you want synchronized lighting, and set custom PWM curves in BIOS or software to balance cooling and noise. Periodically check fittings and tubing for secure connections and maintain good case airflow with intake and exhaust fans.

Aspectos destacados

High-performance Intel and AMD Ryzen desktop CPUs
Gaming and content-creation PCs requiring consistent thermal management
Systems with 360 mm radiator mounting space
Builds using 5V 3-pin addressable RGB headers for lighting synchronization
Model: Reserator5 Z36 (Black)
Radiator dimensions: 120 x 397 x 27 mm; material: pure aluminum
Pump dimensions: 82 x 82 x 40 mm; materials: PPS, PC, pure copper, pure aluminum
Pump speed: 1,000–2,100 RPM; water flow: 0.7–0.85 L/min; bearing: ceramic
Fan: 120 mm; speed: 800–2,000 RPM; max noise: 37 dB(A); max air pressure: 2.92 mm H2O; bearing: EBR; life span: 50,000 hours
Connectors: fan 4-pin PWM; ARGB: 5V 3-pin
Rated voltage: 12 V; pump rated current: 0.35 A; pump power consumption: 4.2 W
Thermal compound included: ZM-STC8
Socket compatibility: Intel LGA1200/115x/2011/2011-v3/2066; AMD AM4/AM3+/AM3/FM2+/FM2

Especificaciones

Altura

27 mm

Altura de la bomba

4 cm

Altura del disipador

2.7 cm

Ancho

397 mm

Ancho de la bomba

8.2 cm

Ancho del radiador

39.7 cm

Capacidad de refrigerante

0.85 L

Color del producto

Black

Compatibilidad con modulación por ancho de pulsos (PWM)

Yes

Conector del ventilador

4-pin

Consumo de la bomba

4.2 W

Consumo del ventilador

4.2 W

Corriente de la bomba

0.35 mA

Corriente del ventilador

0.35 A

Diámetro del ventilador

12 cm

Material

Aluminium, Copper

Material del tubo

Nylon

Nivel de ruido

37 dB

Nivel de ruido del ventilador (máx.)

37 dB

Número de ventiladores

3 fan(s)

Presión de aire máxima

2.92 mmH2O

Profundidad

120 mm

Profundidad de la bomba

8.2 cm

Profundidad del radiador

12 cm

Tecnología del rodamiento de la bomba

Ceramic bearing

Tensión de la bomba

12 V

Tensión del ventilador

12 V

Tiempo medio hasta el fallo (MTTF) del ventilador

50000 h

Ubicación adecuada

Chipset

Velocidad del motor de la bomba

2100 RPM

Velocidad del motor de la bomba (máx.)

2100 RPM

Velocidad del motor de la bomba (mín.)

1000 RPM

Velocidad del ventilador (máx.)

2000 RPM

Velocidad del ventilador (mín.)

800 RPM

Zócalos de procesador compatibles

LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), Socket AM3, Socket AM3+, Socket AM4, Socket FM2, Socket FM2+

Folleto

Abrir documento

Historial de precios de los últimos 6 meses

Zalman Reserator5 Z36 blanco refrigeración líquida para ordenador chipset 12 cm

Actual

95,46 €

Mínimo

94,65 €

Máximo

100,30 €

Variación 24 h

+0,62 € +1%

Semana

+0,17 € +0%

Mes

-4,20 € -4%

Análisis independientes de medios tecnológicos

techpowerup.comcrazyeyesreaper2022-02-28

Veredicto: The Zalman Reserator5 Z36 Black has an MSRP of $129.99.

Pros

Good cooling performance
Good noise-optimized performance
5-year warranty
Perfect memory and GPU clearance
Good build quality
ARGB lighting for those wanting it
No extra software required

Contras

Performance on AMD could be better
Noise profile needs improvement
ARGB lighting could be improved
ARGB lighting won't appeal to everyone

Lee el análisis completo en techpowerup.com →

Zalman Reserator5 Z36 blanco refrigeración líquida para ordenador chipset 12 cm
