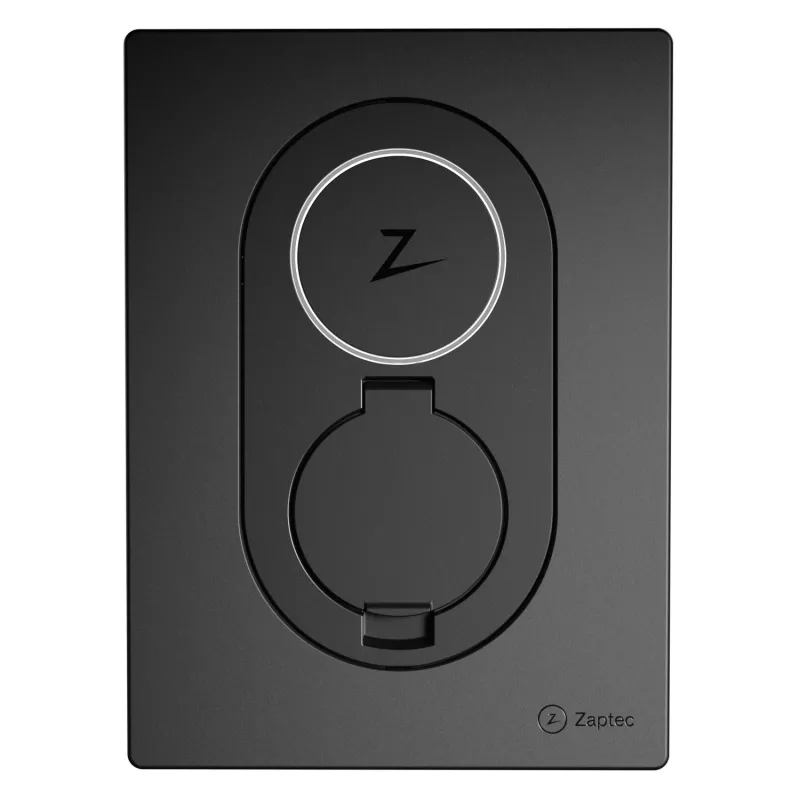

ZAPTEC Go Asphalt Black estación de carga Smart Home 22 kW Type 2 (ZM000688G)

Charge your electric vehicle at home with the ZAPTEC Go, a smart charging station in asphalt black. Ideal for homeowners with a dedicated parking space, this wall-mounted unit delivers up to 22 kW of power via its Type 2 socket, making it suitable for all modern EVs. Its integrated connectivity and robust construction ensure reliable, intelligent charging in any weather.

Key specifications

• Maximum charging power: 22 kW (3-phase) / 7.4 kW (1-phase)
• Charging connector: Type 2 socket
• Input voltage: 230V (1-phase) / 400V (3-phase) AC
• Maximum current: 32 A
• Connectivity: Wi-Fi, 4G LTE-M, Bluetooth
• Integrated RCD: Type A with 6mA DC detection
• IP rating: IP54
• IK rating: IK10
• Operating temperature: -30°C to +40°C
• Mounting: Wall-mounted
• Energy meter: Integrated
• Authentication: ZAPTEC App, RFID (via app)
• Communication protocol: OCPP 1.6J
• Colour: Asphalt Black
• Housing material: High-strength plastic
• Dynamic load balancing: Yes (requires additional hardware)
• Safety features: Overcurrent, overvoltage, temperature protection
• Firmware updates: Over-the-Air (OTA)

Why choose it

The ZAPTEC Go combines high charging power with smart connectivity. Control and monitor charging via the ZAPTEC app, benefit from automatic firmware updates, and rely on its durable IP54 and IK10 rated housing for long-term outdoor use.

Ideal use cases

• Homeowners with a private driveway or garage
• EV drivers needing fast overnight charging
• Users who want smart charging management and load balancing

Good to know

The ZAPTEC Go supports OCPP 1.6J, enabling integration with various charging management systems. Its integrated energy meter provides accurate consumption data, and the Type 2 socket is compatible with standard charging cables.
