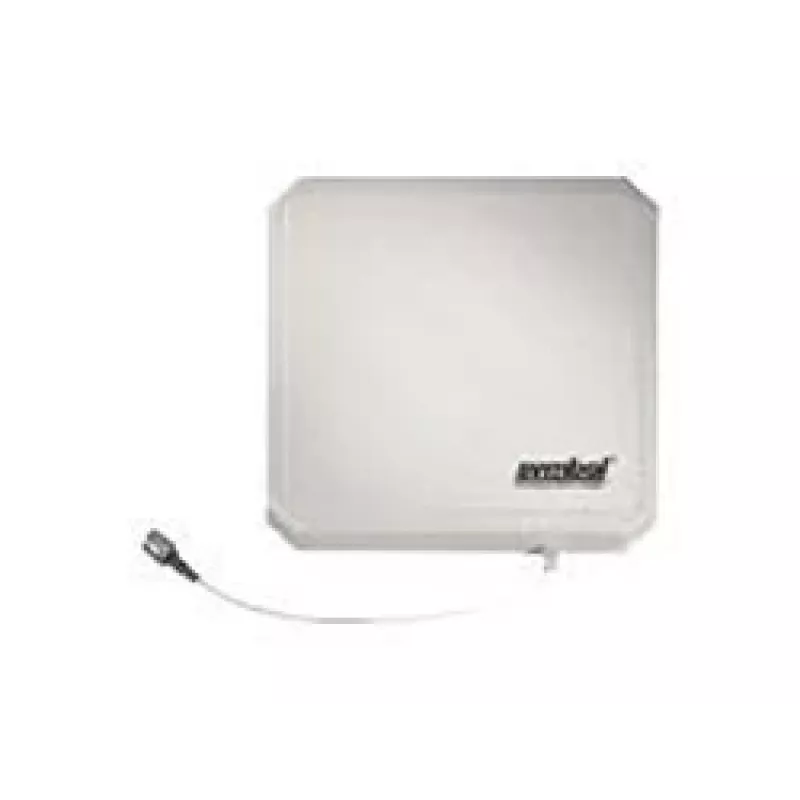

Zebra AN480-CL66100WR Antena RFID de un solo puerto, tipo N, 6 dBi

The Zebra AN480-CL66100WR is a single port RFID antenna with N-Type connector and 6 dBi gain. It operates in the 865-868 MHz frequency range and features horizontal polarization.

Key features

• 6 dBi maximum gain
• N-Type antenna connector
• Horizontal polarization
• 50 Ohm impedance
• VSWR 1.22:1
• Maximum input power 2 W
• Wall mount
• White product colour
• IP 54, IEC-68, UL-746C certification
• RoHS compliant

Specifications

• Brand: Zebra
• MPN: AN480-CL66100WR
• Frequency range: 865-868 MHz
• Width: 259.1 mm
• Depth: 258.1 mm
• Height: 50.3 mm
• Weight: 1.13 kg
