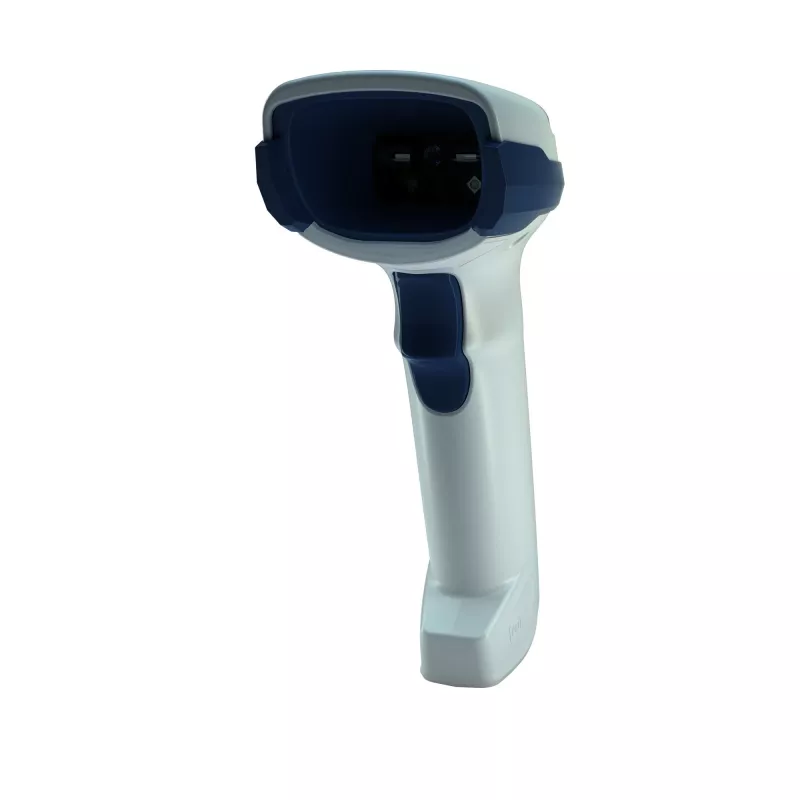

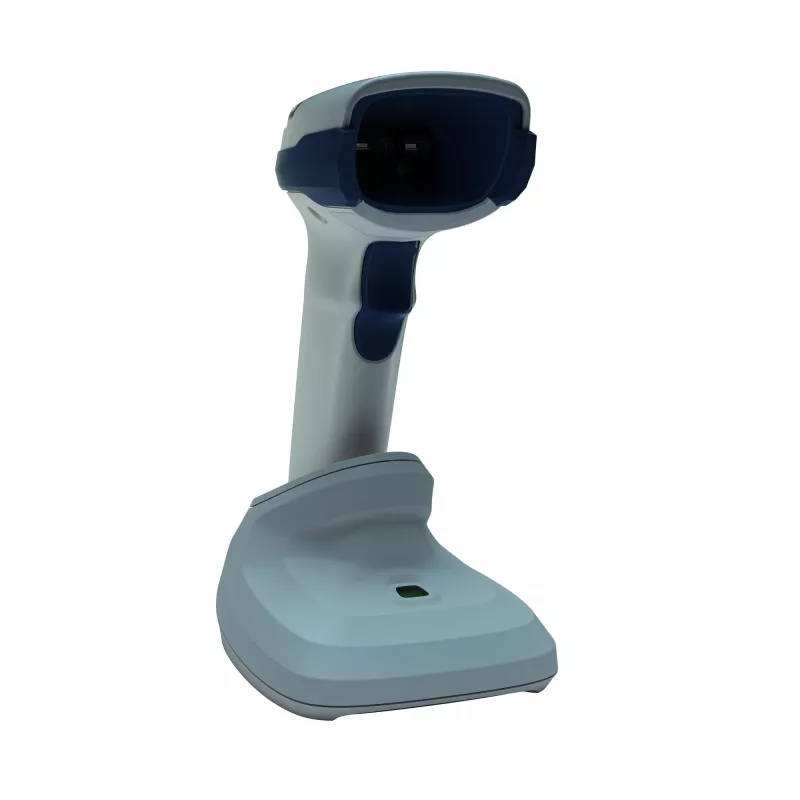

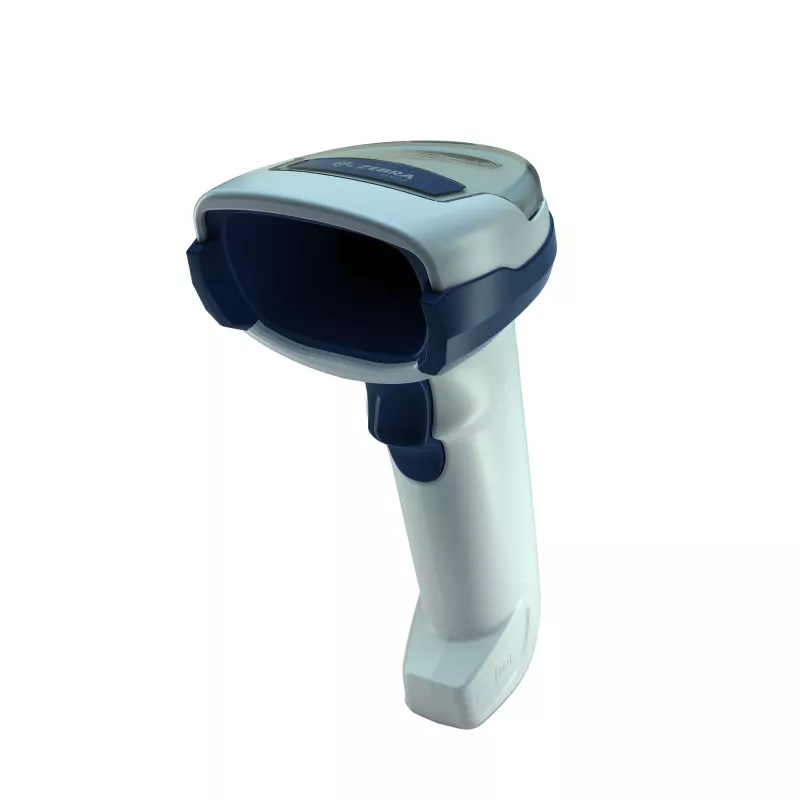

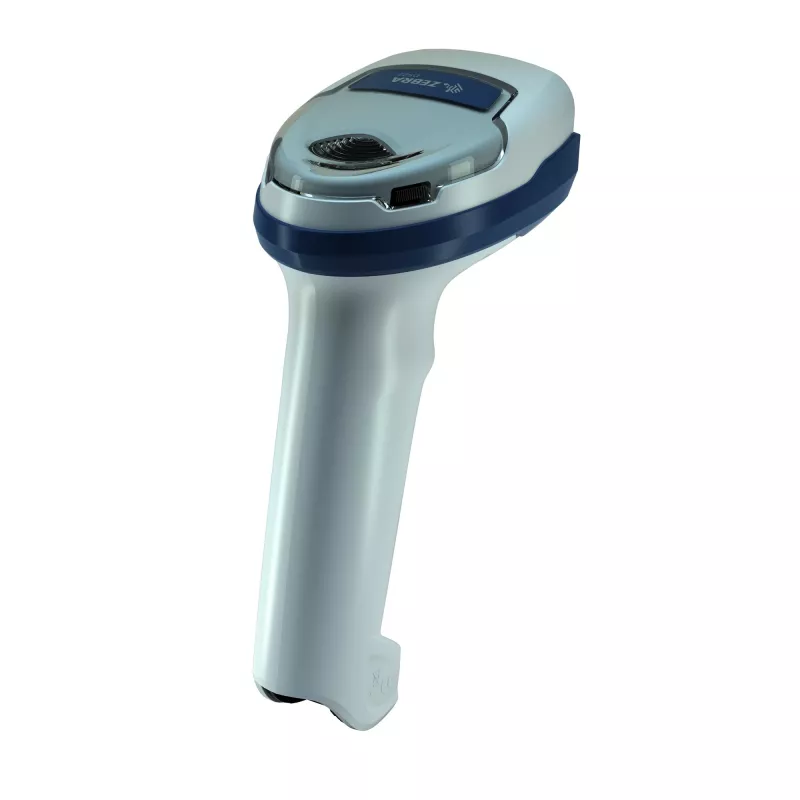

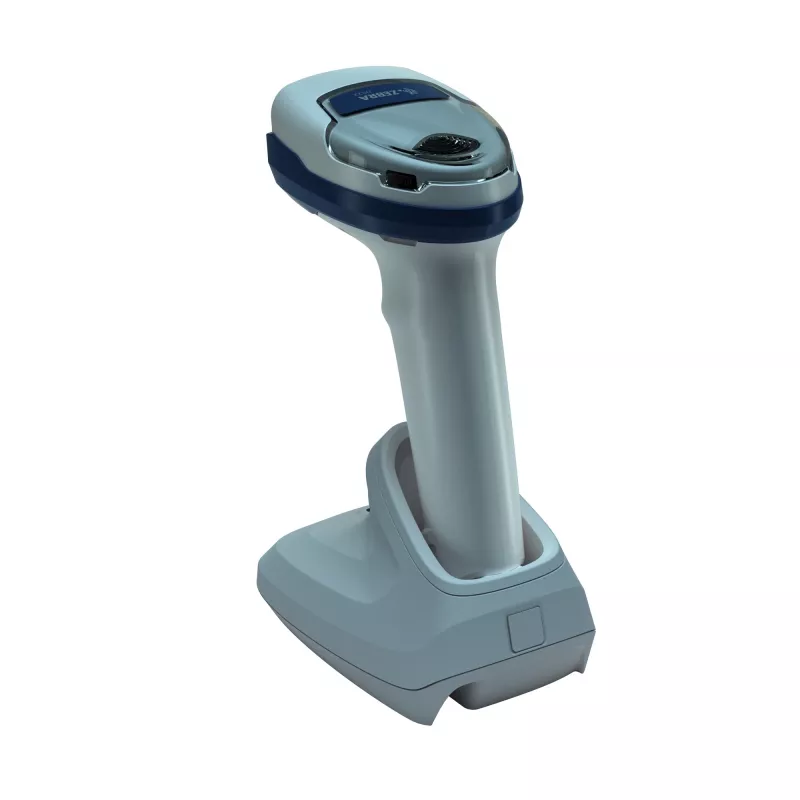

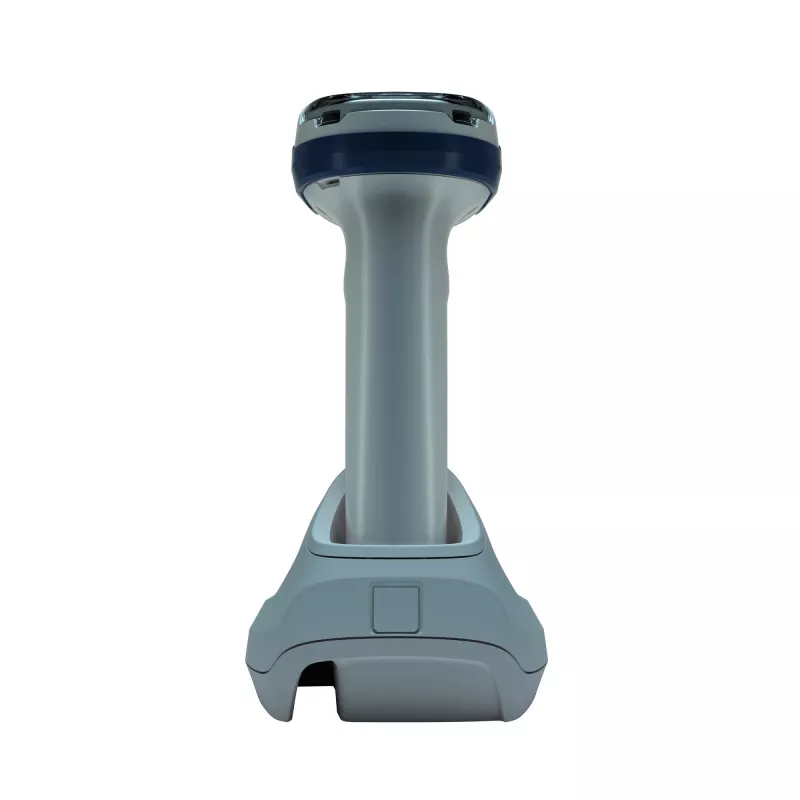

Zebra DS2278-HC Lector de códigos de barras de mano 1D/2D LED Blanco

The Zebra DS2278-HC is a handheld 1D/2D barcode reader designed for point-of-sale and healthcare environments. It supports both linear and 2D codes, uses LED sensor technology, and is available in cordless form with Bluetooth connectivity to reduce cable clutter. The scanner is lightweight and durable, with IP42 protection and a long-lasting 2400 mAh Lithium‑Ion battery that supports extended wireless use.

Advantages

The DS2278-HC delivers reliable omnidirectional scanning with Zebra’s PRZM decode algorithms, enabling quick first-pass reads even on damaged or poorly printed barcodes. It offers easy deployment through auto-host detect cables and pre-configured settings, and simple customization via the 123Scan utility. The cordless model provides up to 14 hours of guaranteed battery life and includes Wi‑Fi Friendly Mode to minimize interference with wireless networks. Management and configuration require minimal IT involvement thanks to free tools for device management and application development.

Suitable for

• Retail point-of-sale scanning where 1D and 2D barcodes appear on products, coupons and loyalty cards
• Healthcare settings requiring a white, disinfectant-friendly scanner with IP42 protection
• Mobile or wireless workflows that benefit from Bluetooth connectivity and long battery life

Key specifications

• Model: Zebra DS2278-HC (corded and cordless options; DS2278 cordless shown)
• Scanner type: 1D/2D imager
• Sensor type: LED
• Connectivity: Wired & Wireless (Bluetooth and USB supported)
• Battery: 2400 mAh Lithium‑Ion (cordless model)
• Weight: 0.214 kg
• Physical protection: IP42
• Supported 1D codes: U.P.C., Plessey, Interleaved 2 of 5, EAN-13, Code 93, Codabar, Code 11, Code 128, Code 39
• Supported 2D codes: Han Xin, Data Matrix, Composite Codes, Aztec Code, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
• Color: White

How to use

Plug the scanner or its cradle into your POS using the supplied auto-host detect cable and allow the interface to be identified automatically. For cordless use, pair the DS2278-HC with your host via Bluetooth using the on-device pairing procedure; the model supports simplified pairing and long battery operation. Point the imager at the barcode and press the trigger or use point-and-shoot aiming for omnidirectional reads. If configuration changes are needed, generate a single programming barcode with the 123Scan utility and scan it to apply new settings across devices.

Recommendations

Use the DS2278-HC in environments where hygiene and reliability are important; clean the white housing with approved disinfectants following manufacturer guidelines. Charge the cordless unit fully before first use and monitor battery status to maintain uninterrupted operation. When deploying multiple cordless units near Wi‑Fi networks, enable Wi‑Fi Friendly Mode to reduce potential interference.
