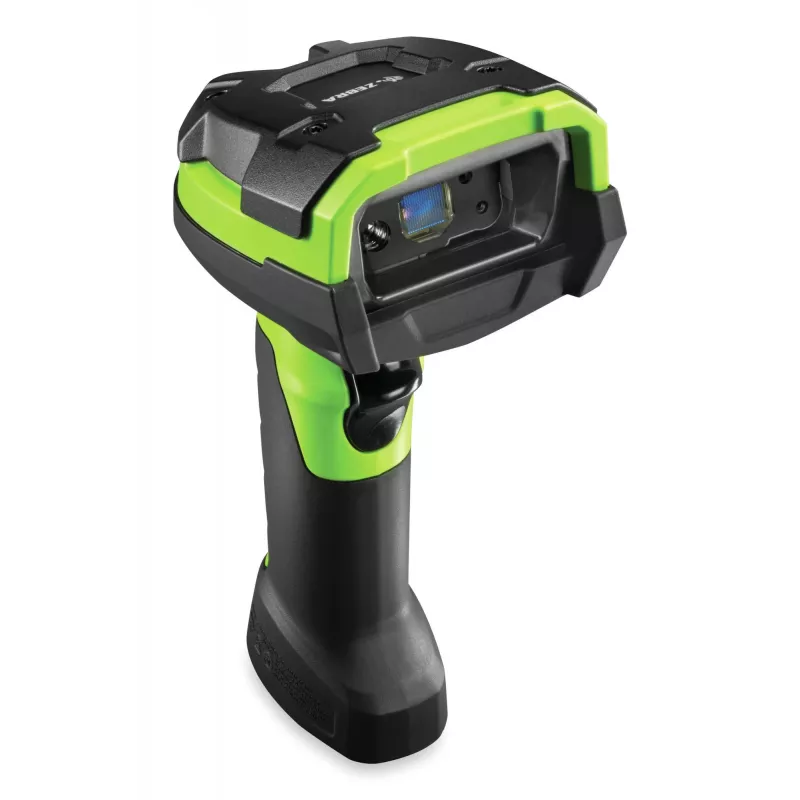

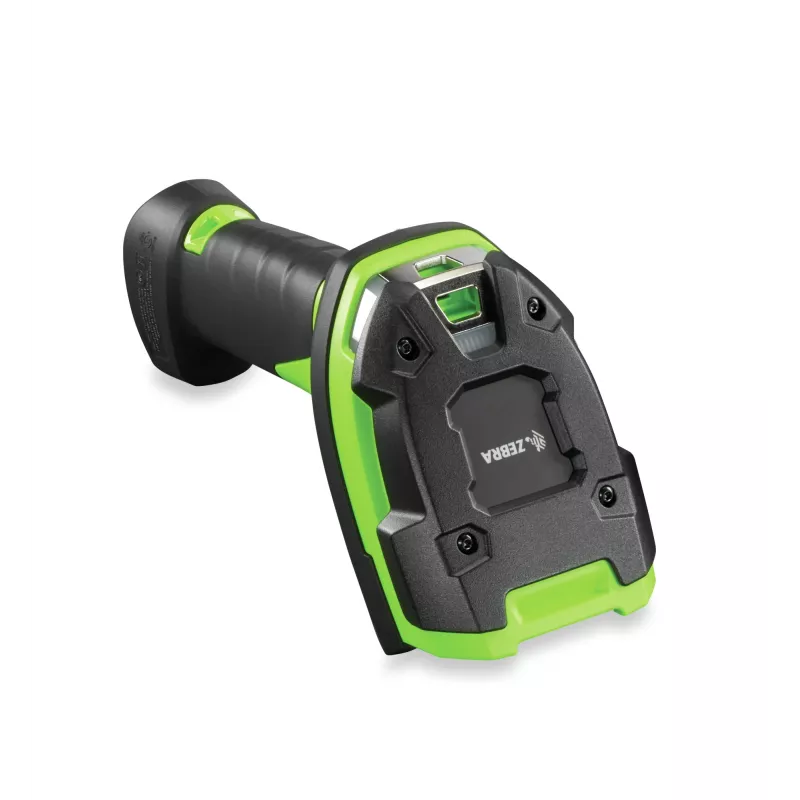

Zebra DS3608-DP Lector de códigos de barras portátil 1D/2D Láser Negro, Verde

UNSTOPPABLE PERFORMANCE FOR 1D/2D DIRECT PART MARKS (DPM) AND BARCODES
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-DP corded and DS3678-DP cordless scanner brings the dependable lightning-fast capture of virtually every direct part mark to aerospace, automotive and other manufacturing plants where end-to-end traceability of every product component is required.

And since the DS3608-DP and DS3678-DP also captures any 1D and 2D barcode displayed on a screen or printed on a label, you get real value — unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to quality control.

SUPERIOR PERFORMANCE
When it comes to capturing barcodes in the manufacturing plant, the DS3608-DP and DS3678-DP deliver the ultimate in scanning performance — period. Capture direct part marks regardless of size, surface, contrast, density or type — including challenging dot peen, chemical or laser etch, ink, inkjet mold, cast or thermal spray marks. And workers can capture any 1D or 2D barcode displayed on a screen or printed on a label in practically any condition for superior barcode capture flexibility in a single scanner.

ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Zebra DS3608-DP. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: RS-232, USB, Keyboard wedge. Product colour: Black, Green, International Protection (IP) code: IP67, Protection features: Dust resistant, Shock resistant, Water resistant. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 3100 mAh. Weight: 304 g, Width: 132 mm, Depth: 76 mm

How to use

Connect the DS3608-DP to your host system using the appropriate wired interface and install any required drivers or configuration utilities. Aim the scanner at the barcode or direct part mark within the working distance and pull the trigger to capture the code. For DPM marks, position the scanner to minimize glare and ensure the mark area is within the field of view. Use the manufacturer’s configuration tools to set up data formatting so captured data is transmitted in the required format to your business application.

Recommendations

For best results with direct part marks, ensure surfaces are free of loose debris and reduce reflective glare when reading laser or thermal spray marks. Use Zebra’s remote management utilities to monitor device status and apply firmware updates; for cordless deployments, choose the IP65-sealed cradle and monitor battery statistics regularly.
