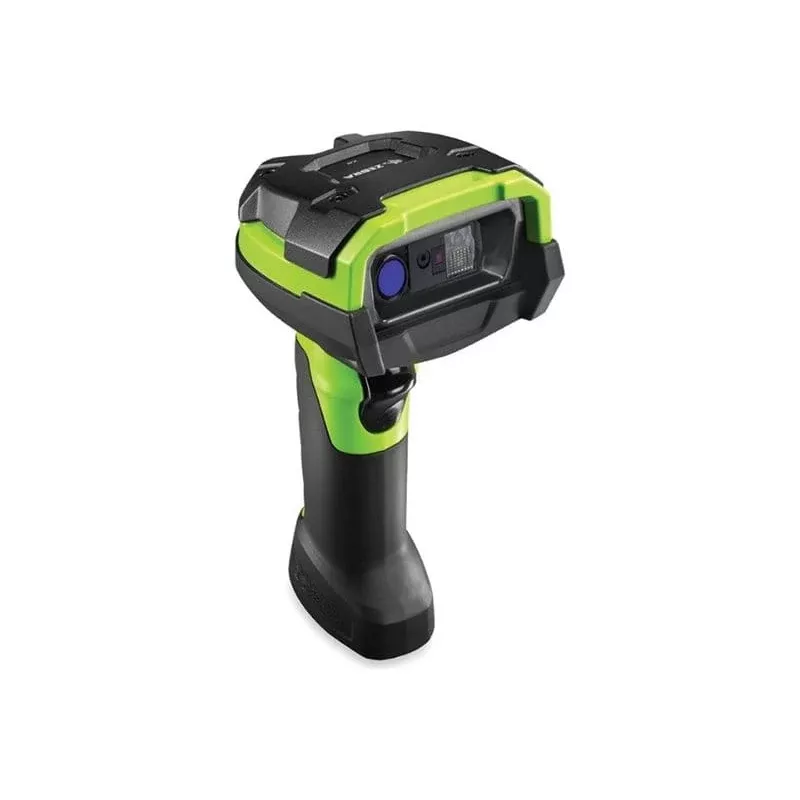

Zebra DS3608-XR: ROBUSTO, IMAGER DE ÁREA, ALCANCE EXTENDIDO (SE58), CON CABLE, PUNTERO LÁSER VERDE, VERDE INDUSTRIAL, MOTOR DE VIBRACIÓN

When standard scanners struggle with damaged, distant, or poorly printed barcodes, the Zebra DS3608-XR delivers exceptional extended range capture up to 70 ft (21.4 m). This ultra-rugged corded area imager combines the SE58 scan engine with a precise green laser aimer, making it ideal for warehouse, manufacturing, and outdoor logistics where reliability is non-negotiable.

Highlights

• Extended range scanning up to 70 ft / 21.4 m for hard-to-reach barcodes
• Ultra-rugged design: IP67 sealed, survives 8 ft drops to concrete and 5,000 tumbles
• Green laser aimer for precise targeting even in bright sunlight
• Vibration motor and rear LEDs provide clear feedback in noisy environments
• Decodes 1D, 2D, OCR, and Digimarc barcodes, including damaged or poorly printed labels
• Industrial green color for high visibility and professional appearance

In daily use

The DS3608-XR excels in demanding environments. Its extended range allows scanning barcodes on high shelves, pallets, or across loading docks without climbing or stretching. The ultra-rugged construction means it can be dropped, bumped, or exposed to dust and water without downtime. The green laser aimer is clearly visible outdoors and in bright light, while the vibration motor ensures you never miss a successful scan, even with hearing protection. With motion tolerance up to 15 ft/s, you can scan items on fast-moving conveyor belts or in rapid picking operations.

Full specifications

• Scanner type: Area Imager
• Connectivity: Corded (USB, RS-232, Keyboard Wedge)
• Scan engine: SE58 Extended Range Imager
• Decode capabilities: 1D, 2D, OCR, Digimarc
• Scan range: Extended Range (up to 70 ft / 21.4 m)
• Ruggedness: Ultra-Rugged
• IP rating: IP67
• Drop specification: 8 ft (2.4 m) to concrete
• Tumble specification: 5,000 tumbles @ 3.3 ft (1 m)
• Aimer type: Green Laser Aimer
• Illumination: Red LED
• Feedback indicators: Direct Decode Indicator, Beeper, Vibration Motor, Rear LEDs
• Operating temperature: -30°C to 50°C (-22°F to 122°F)
• Motion tolerance: Up to 15 ft/s (4.6 m/s)
• Minimum print contrast: 15%
• Field of view: Horizontal 48°, Vertical 30.7°
• Color: Industrial Green

Final note

Built for the toughest jobs, the DS3608-XR keeps your operations moving with fast, accurate scanning from near contact to 70 feet away.
