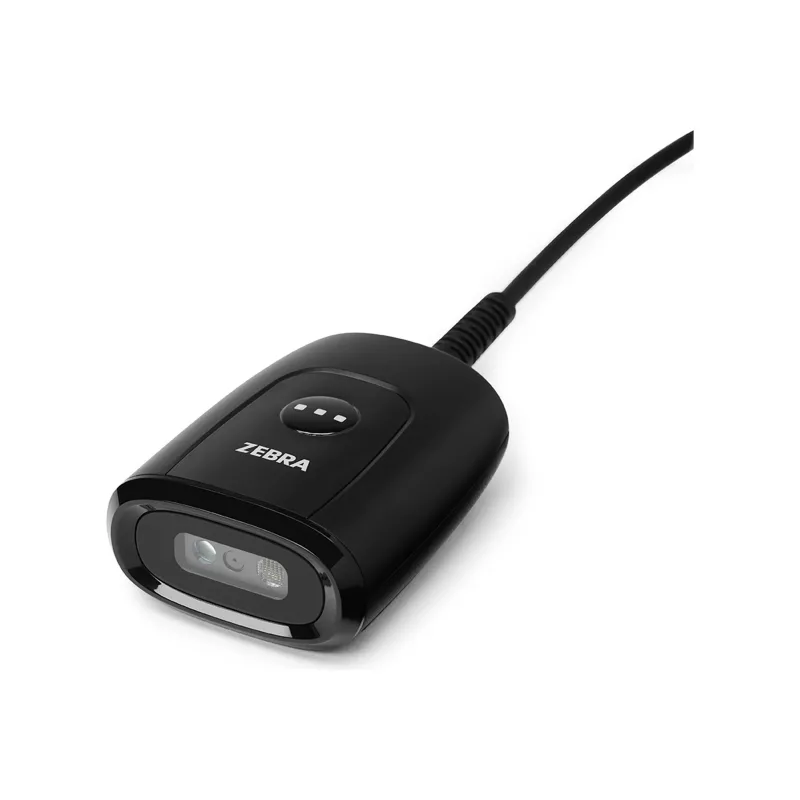

Zebra DS5502-SR Negro Kit serie - EMEA DS5502-SR40004ZZWW Escáner CBL-R10755-01 7_ - Escáner de códigos de barras

The Zebra DS5502-SR stands apart from typical handheld scanners by pairing a high-performance 1D/2D area imager with a dedicated RS-232 serial interface, making it the go-to choice for legacy point-of-sale systems and industrial terminals that demand reliable wired connectivity without adapters. This black serial kit includes the scanner and a 2.1 m (7 ft) RS-232 cable (CBL-R10755-01), ready for immediate deployment across EMEA markets.

Highlights

• Reads all common 1D, 2D, and postal barcodes, including poorly printed or damaged codes
• Fast, accurate scanning with motion tolerance up to 33 cm/s (13 in./s) for 13 mil UPC
• Rugged design withstands multiple 1.5 m (5 ft) drops to concrete and carries an IP42 sealing rating
• Host-powered via RS-232 (4.5–5.5 VDC) – no external power supply needed
• Clear user feedback with beeper and LED indicator

In daily use

Whether at a retail checkout, warehouse receiving dock, or manufacturing line, the DS5502-SR delivers consistent, accurate reads. Its bright 660 nm red illumination and 624 nm amber aiming pattern make targeting effortless, even in dim environments. The 32.8° horizontal by 24.8° vertical field of view captures wide barcodes at close range, while the 25% minimum print contrast ensures reliable performance on faded labels. The serial interface provides a stable, low-latency connection to legacy POS terminals, and the included 2.1 m cable offers ample reach for fixed workstation setups.

Full specifications

• Scanner type: Handheld area imager (1D & 2D)
• Connectivity: Wired RS-232 serial
• Colour: Black
• Kit contents: DS5502-SR scanner, RS-232 serial cable (CBL-R10755-01)
• Cable length: 2.1 m (7 ft)
• Light source: Aiming 624 nm amber LED; illumination 660 nm red LED
• Minimum print contrast: 25%
• Motion tolerance: Up to 33 cm/s (13 in./s) for 13 mil UPC
• Field of view: 32.8° H x 24.8° V (nominal)
• Drop specification: Withstands multiple 1.5 m (5 ft) drops to concrete
• Sealing: IP42
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Power source: Host powered (4.5–5.5 VDC)
• Supported 1D barcodes: Code 39, Code 128, UPC/EAN, GS1 DataBar, Codabar, and more
• Supported 2D barcodes: PDF417, Data Matrix, QR Code, Aztec, Han Xin, postal codes, and more
• Feedback: Beeper, LED indicator
• Target market: EMEA

Final note

For businesses that rely on serial-connected POS or industrial systems, the Zebra DS5502-SR Serial Kit offers a proven, durable scanning solution that eliminates compatibility headaches and keeps operations moving.
