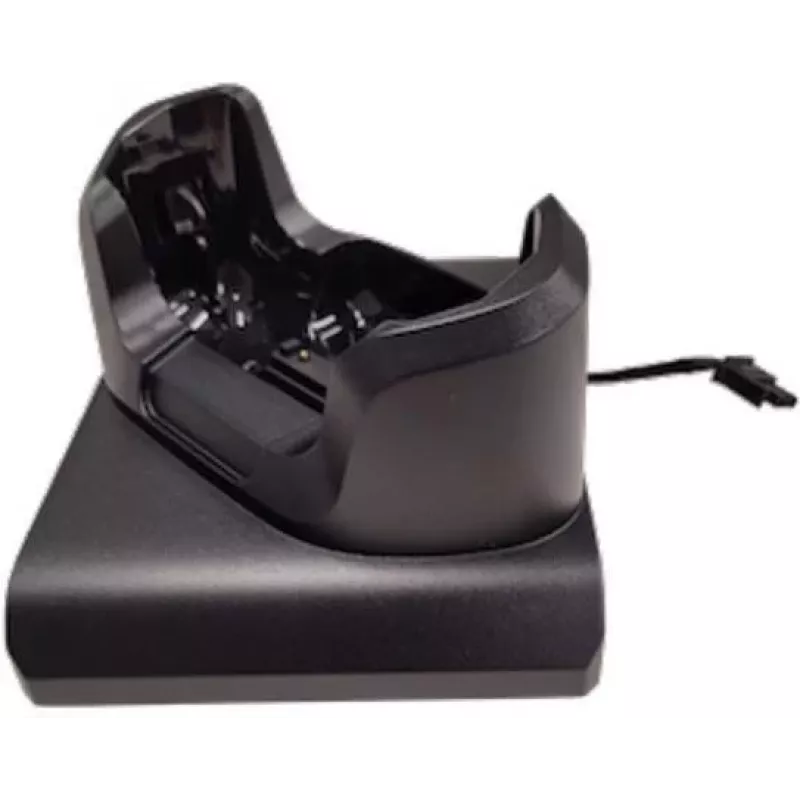

KIT DE TAZA DE BASE DE CARGA DE REPUESTO USB ETHERNET COMM TC73/78

Field teams using Zebra TC73 or TC78 mobile computers often struggle with keeping devices charged, connected, and securely docked during intensive workflows. The Zebra CRDCUP-NGTC7ETH-01 cradle cup kit solves this by providing a dedicated single-slot communication cradle that combines rapid charging, USB data transfer, and Ethernet networking in one compact unit. This replacement cup kit is ideal for warehouses, retail floors, and logistics hubs where reliable device uptime is critical.

Who is it for

This cradle is built for businesses that depend on Zebra TC73/TC78 handhelds for inventory management, order picking, or field service. It suits IT administrators, warehouse managers, and mobile workers who need a dependable docking solution that keeps devices ready for action while enabling fast data sync and network connectivity.

Main features

• Single-slot communication cradle with integrated device cup for secure docking
• Rapid charging with intelligent battery management to protect battery health
• USB 2.0 client port (USB-B) for host connectivity and data transfer
• 10/100 Mbps Ethernet RJ45 port for reliable wired network access
• LED indicators for power, charging status, and Ethernet link/activity
• Durable ABS plastic housing in black, suitable for desktop or wall mounting (bracket sold separately)
• Device retention mechanism to prevent accidental removal

Specifications

• Compatible devices: Zebra TC73, Zebra TC78
• Cradle type: Single slot communication cradle
• Charging output: 5V DC, 2A (typical)
• Power input: 12V DC (external power supply required, sold separately)
• Data connectivity: USB 2.0 (Host & Client via USB-B port)
• Network connectivity: Ethernet (RJ45, 10/100 Mbps)
• Ports: 1x USB-B (Client), 1x RJ45 Ethernet, 1x DC Power Jack
• LED indicators: Power, Charging Status, Ethernet Link/Activity
• Housing material: Durable ABS plastic
• Colour: Black
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Certifications: CE, FCC, RoHS compliant
• Kit contents: Cradle unit, device cup/insert
• Mounting options: Desktop (standard), wall-mountable (with optional bracket)

Tips

For optimal performance, use a Zebra-approved 12V power supply and ensure the cradle is placed on a stable surface away from liquids. If wall mounting, purchase the compatible bracket separately and follow installation guidelines. Regularly inspect the device cup for debris to maintain secure docking and charging efficiency.
