ZVK Easylan caja de empalme de fibra óptica Basic LSB1A114 1U 6x SC-Duplex OM4 RAL7035

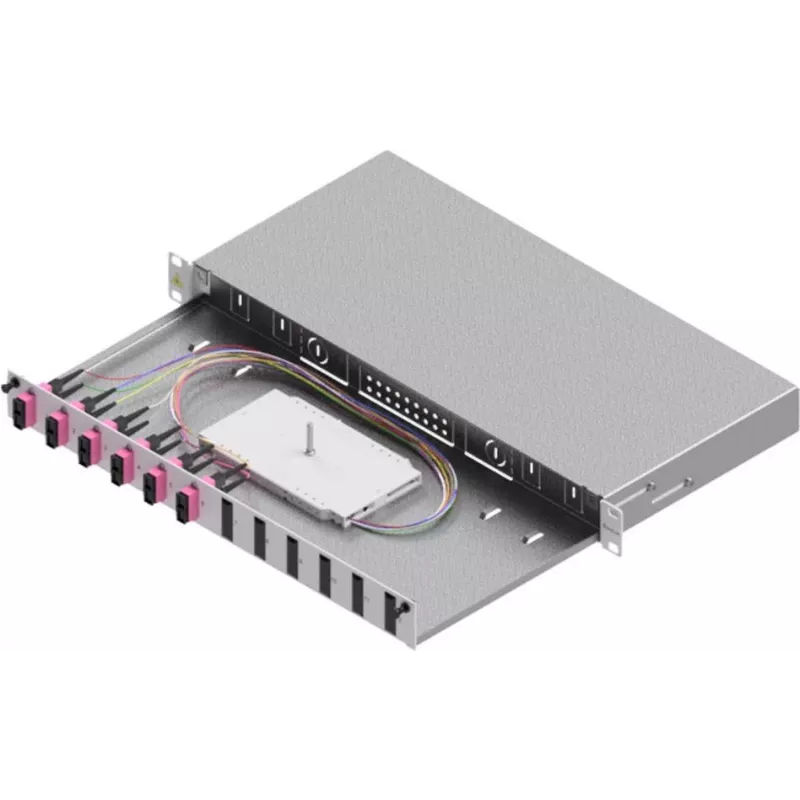

The ZVK Easylan Basic LSB1A114 is a high-quality fiber optic splice enclosure designed for professional network distribution and splicing applications. This 1U rack-mountable unit features 6 SC-Duplex ports pre-assembled with OM4 multimode adapters, supporting up to 12 fibers (6 duplex). The metal housing in RAL7035 light grey ensures durability and EMC protection, while the included splice tray and cable strain relief simplify installation. Ideal for LAN, SAN, and data center environments, this enclosure provides reliable fiber management and easy access for maintenance.

Advantages

Pre-assembled with SC-Duplex OM4 adapters for immediate use; robust metal construction; space-saving 1U design; integrated splice tray and strain relief; excellent for high-density fiber networks.

Suitable for

• Fiber optic network distribution
• Splicing and termination in data centers
• LAN and SAN infrastructure
• Telecommunications rooms

Key specifications

• Product Type: Fiber Optic Splice Enclosure
• Fiber Optic Type: Multimode
• Fiber Optic Grade: OM4
• Connector Type: SC-Duplex
• Number of SC-Duplex Ports: 6
• Total Fiber Capacity: 12 Fibers (6 Duplex)
• Fiber Core/Cladding Diameter: 50/125 µm
• Enclosure Series: Basic
• Mounting Type: Rack Mountable (1U)
• Housing Material: Metal
• Color: Grey (RAL7035)
• Pre-assembled: Yes (with adapters)
• Splice Tray Included: Yes
• Cable Strain Relief: Yes

Recommendations

For optimal performance, use with OM4 patch cables and ensure proper cable management. This enclosure is part of the ZVK Easylan series, offering scalable solutions for fiber optic networks.
