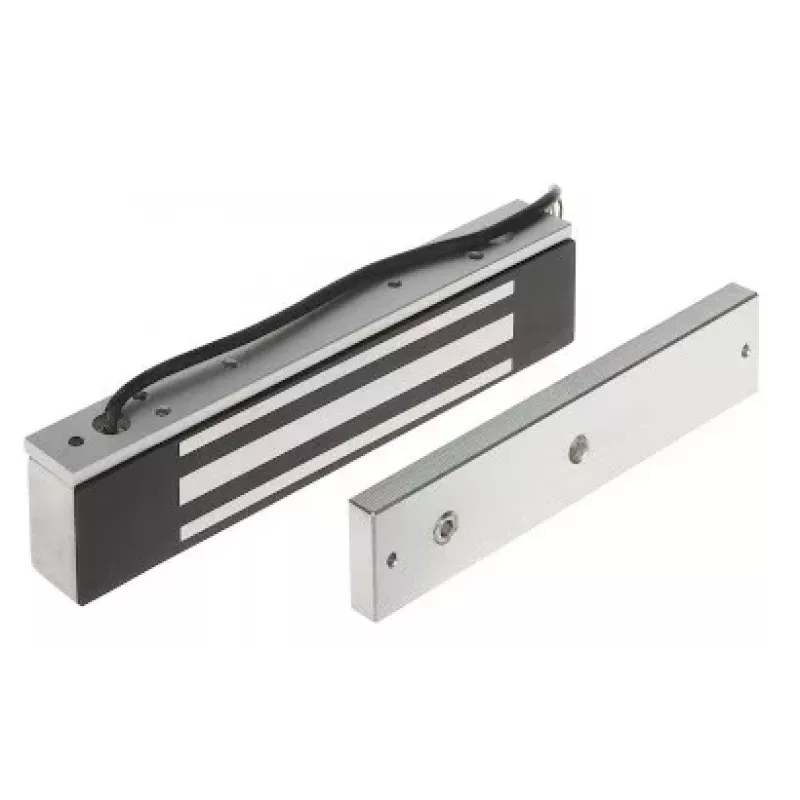

ZWORA ELEKTROMAGNETYCZNA JS-280W Cerradura electromagnética 280kg de fuerza de retención

The ZWORA ELEKTROMAGNETYCZNA JS-280W is a high-performance electromagnetic lock designed for secure access control in indoor environments. With a powerful holding force of 280 kg (600 lbs), it ensures reliable door locking for wooden, glass, metal, and fireproof doors. The lock operates on selectable DC 12V or DC 24V, featuring fail-safe functionality (power to lock, power loss to unlock). Built with an anodized aluminum alloy body and zinc-plated steel armature plate, it offers durability and corrosion resistance. The integrated LED indicator provides clear lock status, and built-in MOV surge protection enhances longevity. Certified CE and RoHS, this surface-mounted lock is ideal for commercial and residential security applications.

Advantages

High holding force of 280 kg ensures secure locking for heavy doors. Selectable voltage (12V/24V) offers flexibility for different systems. Fail-safe operation provides safety during power outages. Durable materials and MOV protection guarantee long service life. Easy surface mounting simplifies installation.

Suitable for

• Access control systems for offices, hotels, and residential buildings
• Wooden, glass (with U-bracket), metal, and fireproof doors
• Indoor security applications requiring fail-safe locking

Key specifications

• Holding Force: 280 kg (600 lbs)
• Operating Voltage: DC 12V / DC 24V (selectable)
• Current Consumption: 500 mA (12V) / 250 mA (24V)
• Lock Type: Fail-safe (Power to lock, power loss to unlock)
• LED Indicator: Yes (Lock status)
• Mounting Type: Surface Mounted
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 0% to 90% (non-condensing)
• Material (Lock Body): Anodized Aluminum Alloy
• Material (Armature Plate): Zinc-plated Steel
• Built-in Protection: MOV (Surge Protection)
• Durability: 500,000 cycles
• Application Environment: Indoor
• Armature Plate Dimensions (L x W x H): 180 x 38 x 11 mm
• Certifications: CE, RoHS

Recommendations

For glass door installation, use the U-bracket (sold separately). Ensure proper voltage selection before wiring. Regular maintenance checks are recommended to ensure optimal performance.
