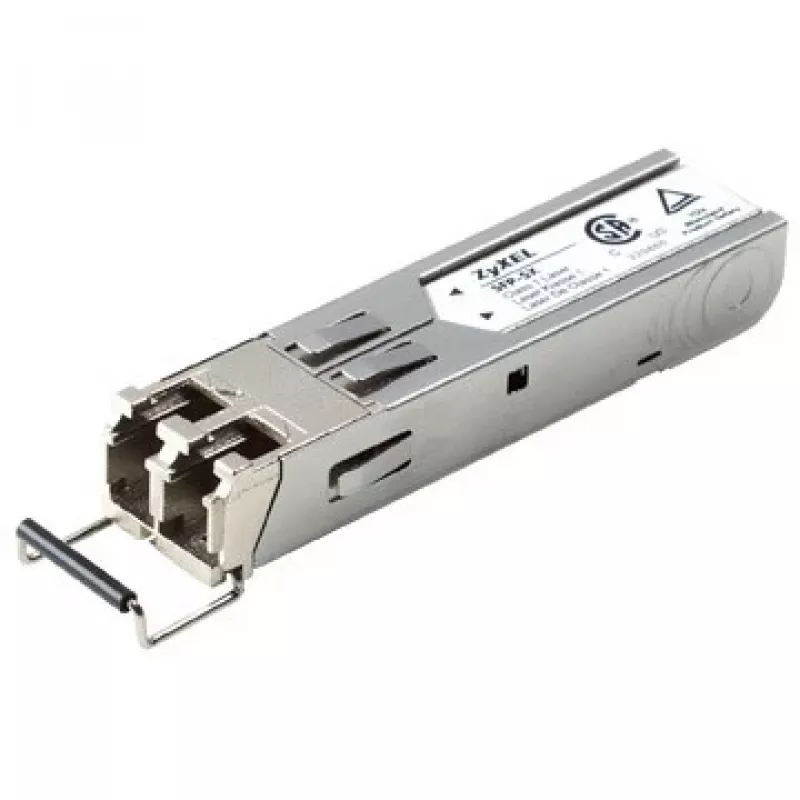

Zyxel SFP-SX-D módulo transceptor de red 1000 Mbit/s 850 nm

SFP ports provide flexibility in selecting fiber type and link distance, allowing you to reuse existing fiber infrastructure and avoid additional fiber cabling. Instead of a switch with fixed built-in fiber ports, a switch with SFP ports lets you choose fiber transceivers on a port-by-port basis to match your needs.

Advantages

SFP transceivers deliver full-duplex Gigabit performance while remaining hot-pluggable for easy installation and replacement. Their compact form factor enables high port density, helping devices like the ZyXEL GS-3012F to support multiple fiber links in a small footprint. SFP modules follow industry standards for broad interoperability with compliant equipment from different vendors.

Key specifications

• Performance: Full-duplex Gigabit Ethernet
• Form factor: Small Form-factor Pluggable (SFP), hot-pluggable
• Compatibility: Compliant with IEEE 802.3z and SFP MSA
• Design: Compact for high port density (example: ZyXEL GS-3012F supports up to 12 fiber links)

How to use

Select the appropriate SFP transceiver for the fiber type and distance required, insert the module into the SFP port on the switch while the system is powered or during maintenance (hot-pluggable), and connect the fiber cable. Verify link indicators and switch configuration to ensure the port negotiates at Gigabit full-duplex and that the link operates as expected.

Recommendations

Choose SFP transceivers that match the fiber (single-mode or multi-mode) and distance specifications of your network. Ensure compatibility with your switch model and follow vendor guidelines for installation and diagnostics.
