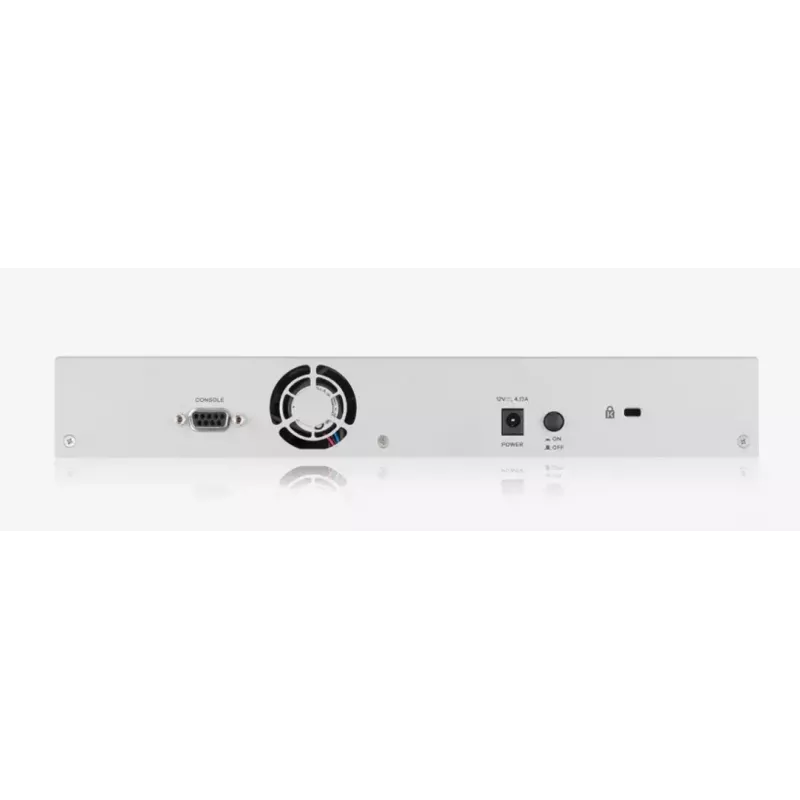

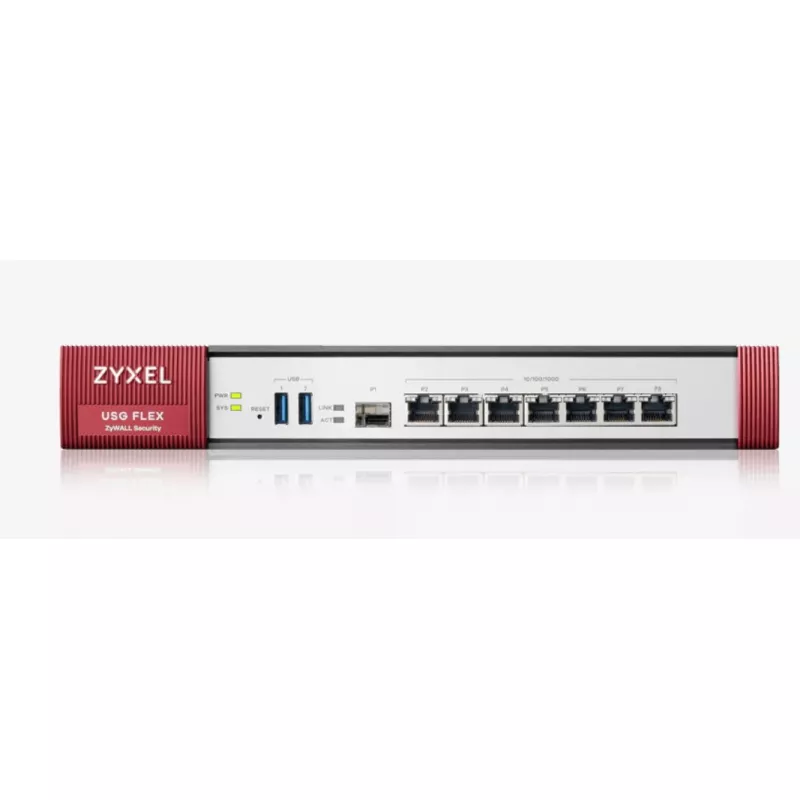

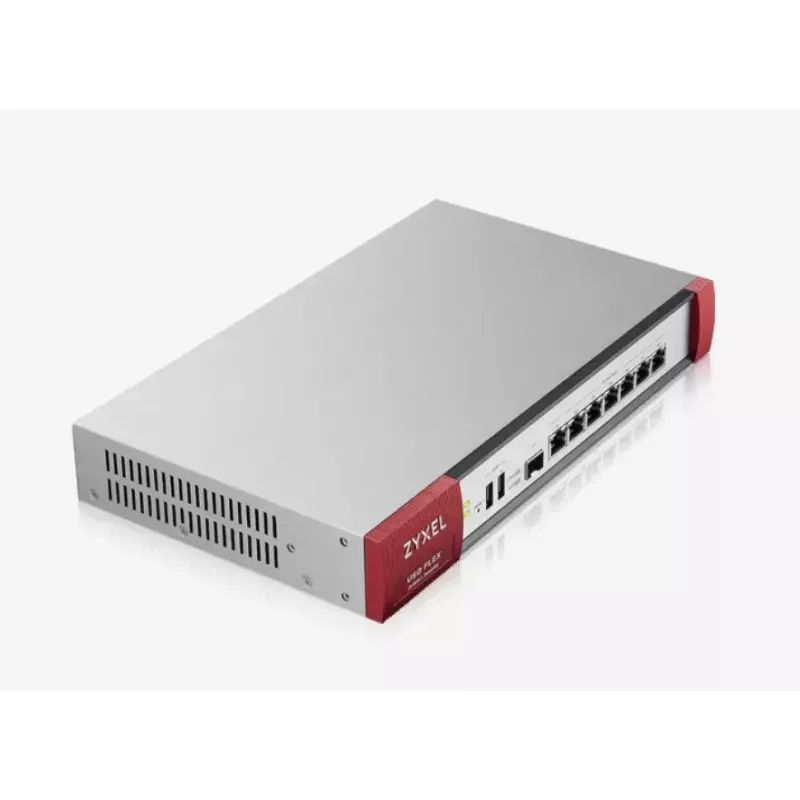

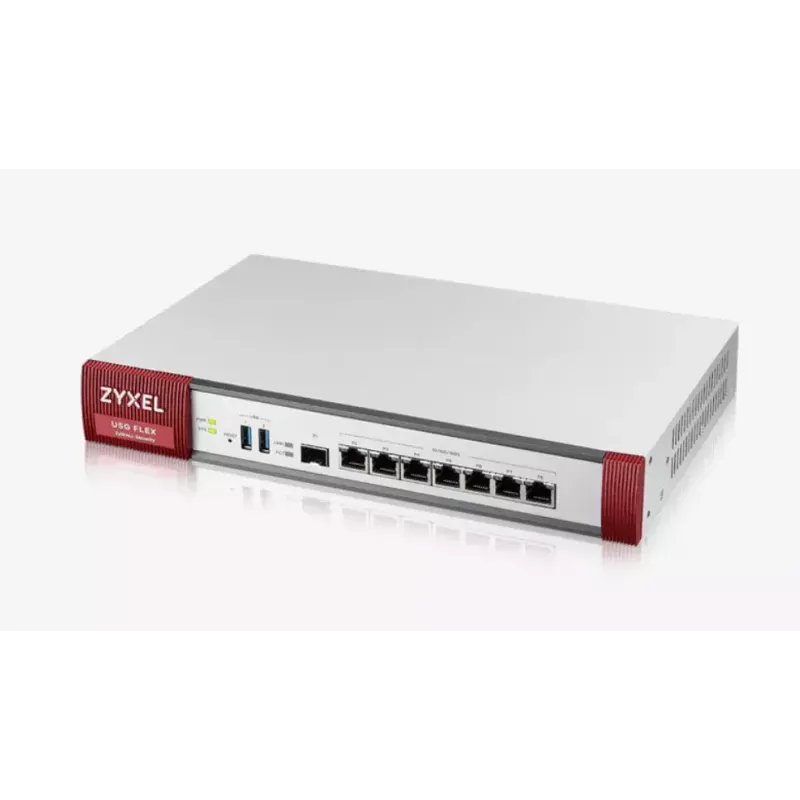

Zyxel USG Flex 500 firewall de hardware 1U 2,3 Gbit/s

The Zyxel USG Flex 500 hardware firewall is a 1U rack-mount security appliance designed for small to medium enterprise networks. It delivers a firewall throughput of 2.3 Gbit/s and supports VPN throughput up to 0.81 Gbit/s, using advanced security algorithms such as IPsec and SSL/TLS. The device supports modern VPN protocols including IKEv2 and L2TP/IPSec, while offering efficient thermal and power characteristics with 82.23 BTU/h heat dissipation, a noise level of 41.5 dB and typical power consumption of 24.1 W. A long mean time between failures (MTBF) of 529,688 hours contributes to continuous network protection and availability.

Advantages

The Zyxel USG Flex 500 combines high throughput for perimeter firewalling with hardware-accelerated VPN support to maintain secure site-to-site and remote-access connections. Its support for IPsec and SSL/TLS ensures compatibility with common secure tunneling requirements, while modern VPN protocol support (IKEv2, L2TP/IPSec) provides flexible deployment options. The unit’s low power consumption and modest acoustic output make it suitable for standard rack environments without excessive operational overhead. Long MTBF and compact 1U form factor simplify integration and reduce maintenance frequency.

Suitable for

• Small to medium-sized branch offices requiring site-to-site VPN and remote access
• Distributed networks that need a compact rack-mount perimeter firewall
• Environments where energy efficiency and low noise are important
• Deployments needing compatibility with IPsec and SSL/TLS VPNs

Key specifications

• Form factor: 1U rack-mount appliance
• Firewall throughput: 2.3 Gbit/s
• VPN throughput: 0.81 Gbit/s
• Supported VPN protocols: IKEv2, L2TP/IPSec, IPsec, SSL/TLS
• Heat dissipation: 82.23 BTU/h
• Acoustic noise level: 41.5 dB
• Power consumption: 24.1 W (typical)
• Mean time between failures (MTBF): 529,688 hours
• Weight: 1.65 kg

How to use

Install the USG Flex 500 into a standard 19-inch equipment rack occupying one rack unit. Connect WAN and LAN interfaces according to your network design and apply the vendor-recommended grounding and power connections. Configure the device via its management interface or centralized management platform, define security policies, firewall rules and VPN profiles (IPsec or SSL/TLS) to match site-to-site or remote-access requirements. Monitor throughput and system logs to validate performance and adjust settings such as encryption profiles and tunnel parameters for optimal balance between security and performance.

Recommendations

For reliable operation, place the device in a ventilated rack space, ensure firmware is kept up to date, and back up configuration regularly. When deploying multiple locations, use consistent VPN and policy templates to simplify management. Tune encryption and authentication settings to meet organizational security policies while monitoring CPU and throughput to avoid performance bottlenecks.
