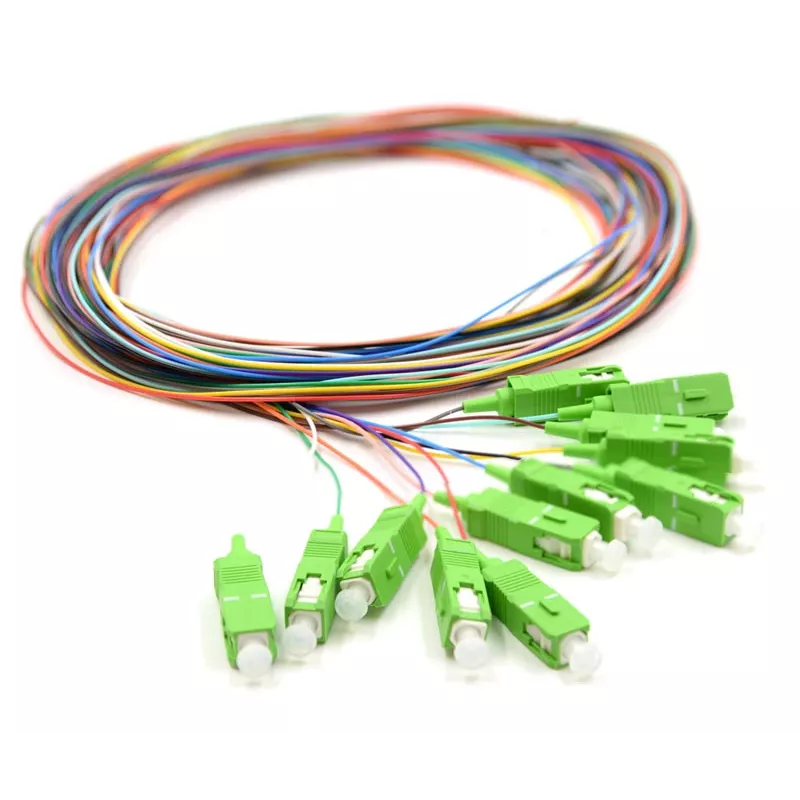

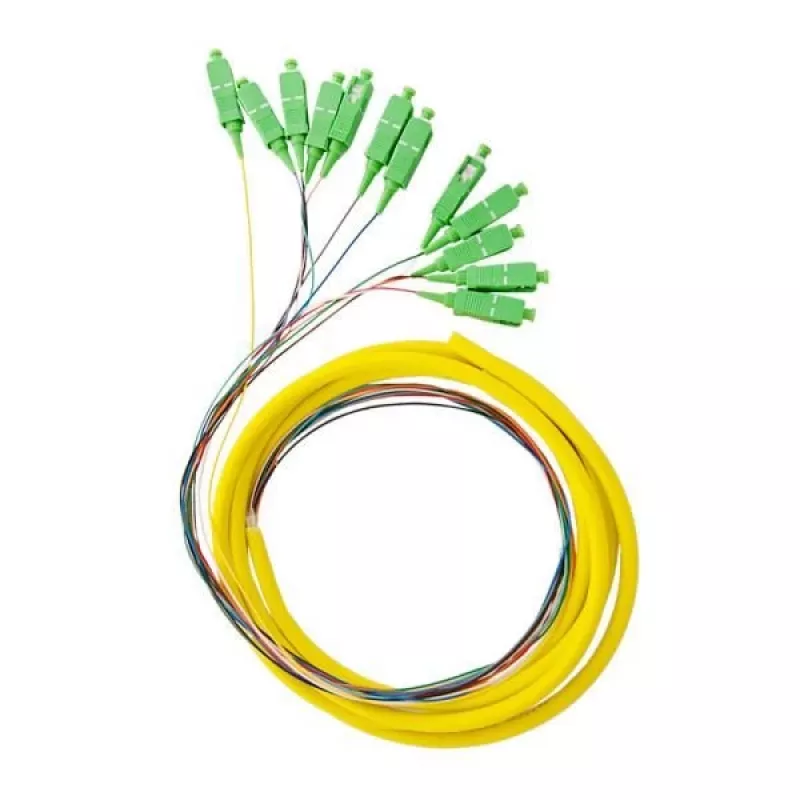

12x Pigtail SC/APC monomodo G.657.A2 2m conectores dorados

This set of 12 SC/APC pigtails is designed for high-performance fiber optic connections in FTTx, data centers, telecommunications, and LAN applications. Each pigtail features a 2-meter length of G.657.A2 single-mode fiber with a 0.9 mm buffered diameter, terminated with a gold-plated SC/APC connector. The APC polish ensures low insertion loss (<0.3 dB) and high return loss (>60 dB), making these pigtails ideal for critical network infrastructure.

Advantages

Pre-terminated with high-quality zirconia ceramic ferrules for reliable mating cycles (≥500). LSZH jacket material provides safety in enclosed spaces. Color-coded per TIA/EIA-598-C for easy identification. Compliant with RoHS and CE standards.

Suitable for

• FTTx networks
• Data centers
• Telecommunications
• Local Area Networks (LAN)

Key specifications

• Number of Pigtails: 12
• Connector Type: SC/APC
• Fiber Type: Single-Mode (SM)
• Fiber Standard: ITU-T G.657.A2
• Cable Length (per pigtail): 2 meters
• Cable Diameter: 0.9 mm (buffered fiber)
• Polish Type: APC
• Insertion Loss: <0.3 dB
• Return Loss: >60 dB
• Ferrule Material: Zirconia Ceramic
• Jacket Material: LSZH
• Minimum Bend Radius: 7.5 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability: ≥500 Mating Cycles
• Color Coding: TIA/EIA-598-C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are cleaned before mating. Store in a clean, dry environment within specified temperature range.
