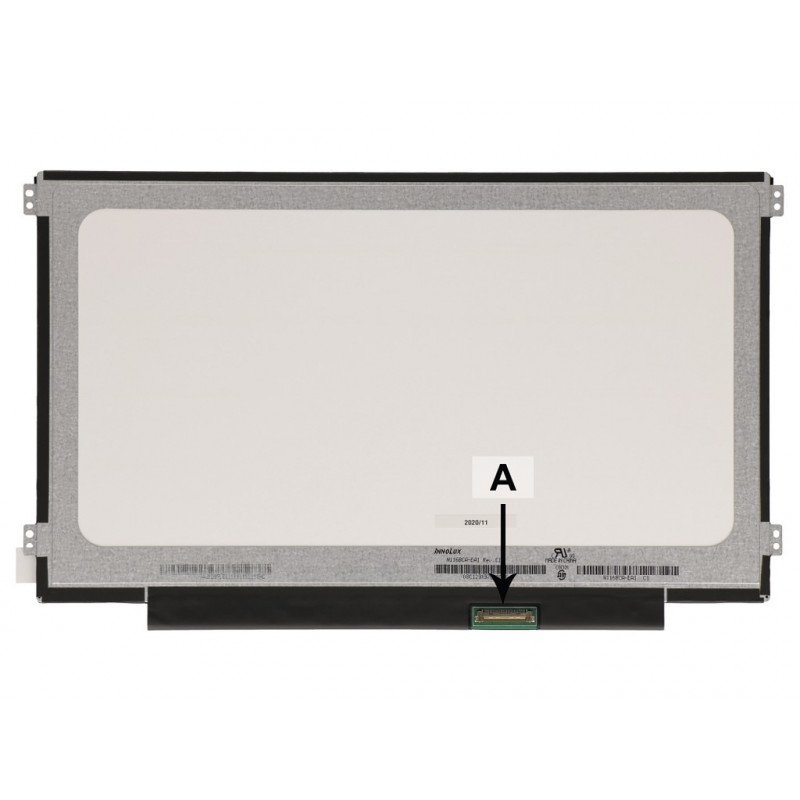

2-power 11,6" HD IPS mate con pestañas de sujeción izquierda/derecha (2P-KM88W)

Experience crisp visuals with a 1366x768 HD resolution on an 11.6-inch IPS panel, delivering consistent colors from wide 85° viewing angles. The matte anti-glare surface reduces reflections, making it ideal for bright environments.

Overview

This 2-Power display panel is engineered for reliable performance in laptops and portable devices. Featuring an LED backlight and a 16:9 aspect ratio, it provides a bright, energy-efficient viewing experience. The panel uses a 30-pin eDP connector, ensuring compatibility with a wide range of systems. With side mounting lugs, installation is straightforward in compatible chassis. The A+ grade panel guarantees premium quality with minimal defects.

What stands out

• IPS technology for accurate color and wide viewing angles
• Matte finish to minimize glare and fingerprints
• LED backlight for low power consumption (4W typical)
• Side lugs for secure mounting
• 60Hz refresh rate for smooth motion
• 45% NTSC color gamut for vibrant images

Technical details

• Screen size: 11.6 inches
• Resolution: 1366 x 768 (HD)
• Panel type: IPS
• Surface: Matte (anti-glare)
• Backlight: LED
• Aspect ratio: 16:9
• Connector: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Viewing angles: 85° horizontal, 85° vertical
• Response time: 25 ms
• Contrast ratio: 700:1
• Power consumption: 4 W
• Color gamut: 45% NTSC
• Touchscreen: No
• Panel grade: A+

Our verdict

A dependable replacement panel that combines sharp HD clarity with IPS color accuracy and a glare-reducing matte finish. The side lugs ensure a secure fit, and the low power draw helps extend battery life. Perfect for refurbishing or upgrading your 11.6-inch laptop.
