Tira de pines DeLOCK 66687 accesorio para placas de circuito impreso (PCB)

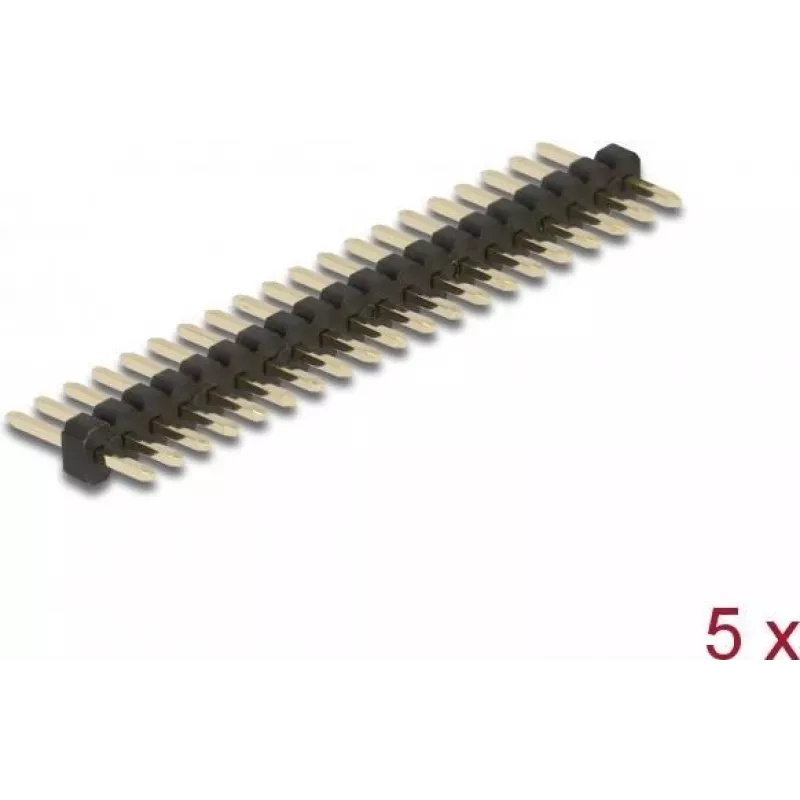

The DeLOCK 66687 pin header is an accessory for printed circuit boards (PCBs) designed to create reliable electrical connections between individual boards. Constructed from metal and plastic with a black and metallic finish, it offers a compact form factor suitable for electronic projects and board-to-board interfaces.

Advantages

This pin header provides a durable metal contact combined with a plastic insulating body for stable connections and mechanical support. Its small dimensions allow installation in tight spaces on PCBs while maintaining compatibility with standard header footprints. The black and metallic finish helps visually distinguish connection points on the board.

Suitable for

• Creating board-to-board or board-to-component connections on PCBs
• Prototyping and electronic hobby projects
• Repairing or modifying computer component accessories and modules

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 66687
• EAN: 4043619666874
• Material: metal contacts and plastic body
• Finish: black and metallic
• Dimensions: 25.4 mm (length) × 6.3 mm (depth) × 2 mm (height)
• Category: Computer components accessories

How to use

Place the pin header into the corresponding plated holes on the printed circuit board and solder the metal contacts to the PCB pads to establish a firm electrical and mechanical connection. Ensure correct orientation before soldering and verify alignment with mating connectors or board layouts. After soldering, inspect joints for proper wetting and absence of bridges.

Recommendations

Use appropriate soldering tools and techniques, work on a powered-down and discharged circuit, and follow ESD precautions when handling the pin header and PCB to avoid damaging sensitive components.
