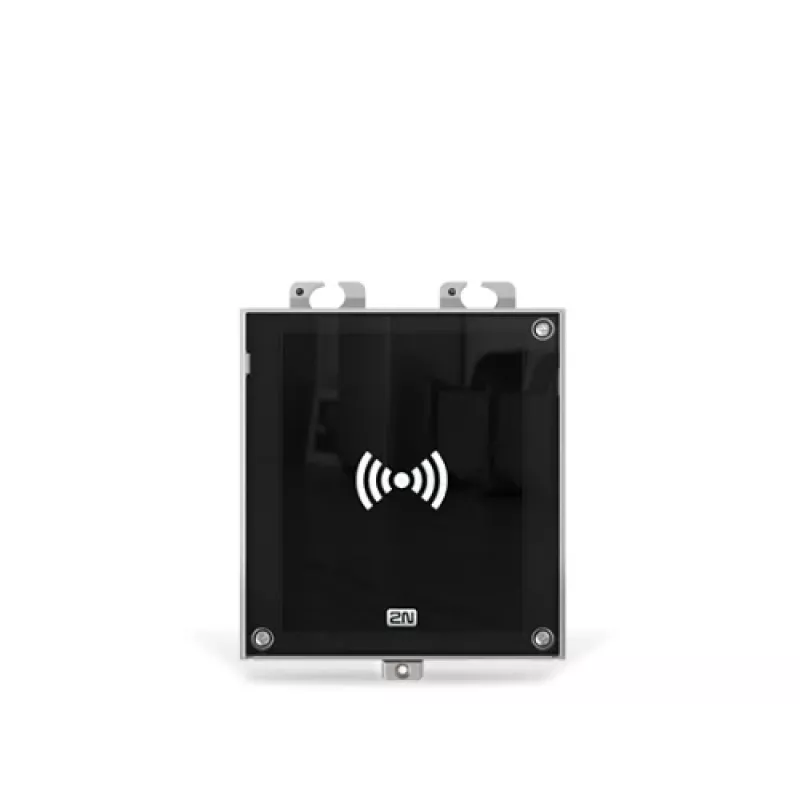

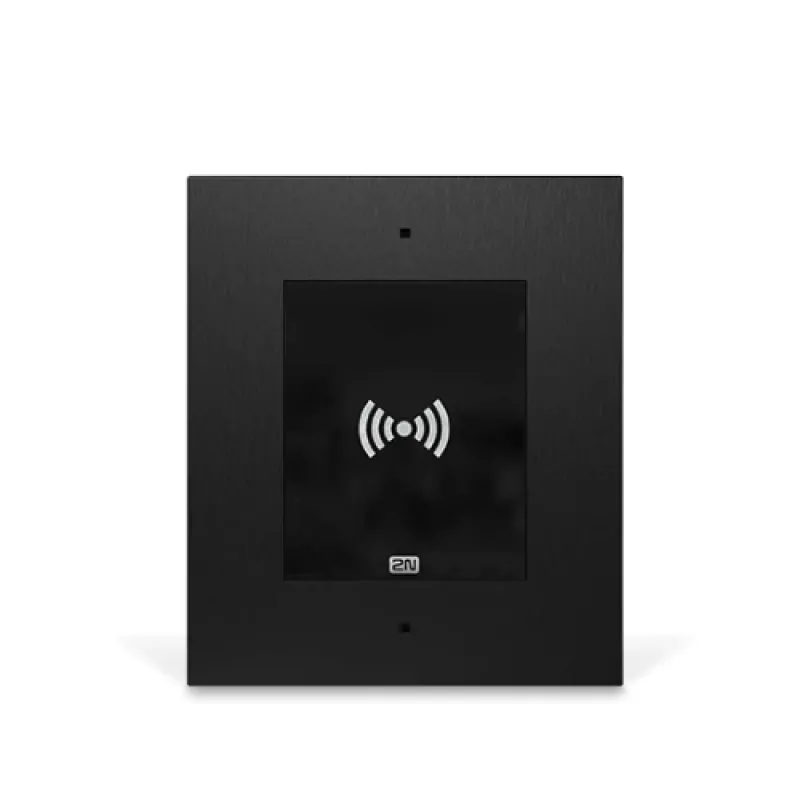

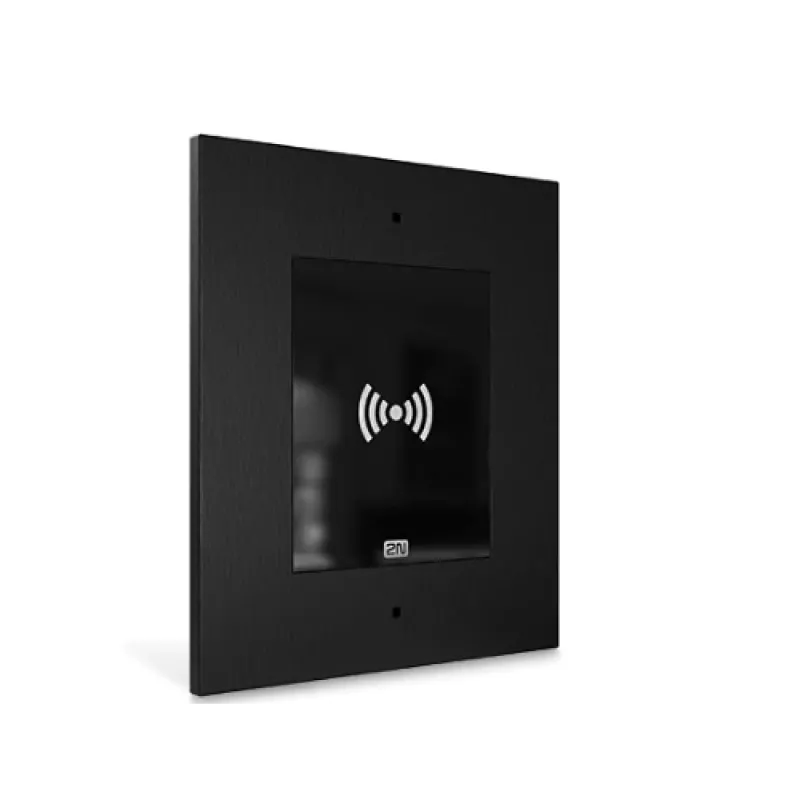

2N Access Unit 2.0 lector de tarjetas 125kHz (9160341)

The 2N Access Unit 2.0 is a versatile IP-based access control reader designed for secure and convenient entry management. It supports 125kHz RFID technology, compatible with EM4100 and HID Prox cards, making it ideal for offices, commercial buildings, and industrial facilities. With Power over Ethernet (PoE) support, installation is simplified, and the rugged IP54/IK07-rated housing ensures reliable operation in demanding environments.

Advantages

Easy integration with existing network infrastructure via Ethernet, Wiegand, or RS-485 interfaces. The built-in web interface and 2N Access Commander software provide flexible management. The tamper switch enhances security, and the internal speaker offers audible status feedback.

Suitable for

• Office buildings requiring secure employee access
• Industrial sites needing durable, weather-resistant readers
• Integration with third-party access control systems

Key specifications

• Reader Technology: 125kHz RFID (EM4100, HID Prox)
• Connectivity: Ethernet 10/100BASE-TX, Wiegand, RS-485
• Power: PoE 802.3af or 12V DC / 2A
• Operating Temperature: -40°C to +60°C
• Protection: IP54, IK07
• Relay Output: 1x NO/NC (max 30V/1A)
• Digital Inputs: 2x passive/active
• Dimensions: 107 x 83 x 28 mm
• Weight: 0.3 kg

Recommendations

For flush mounting, use the optional 2N Access Unit flush-mount box. Ensure PoE switch or injector is available for simplified cabling.
