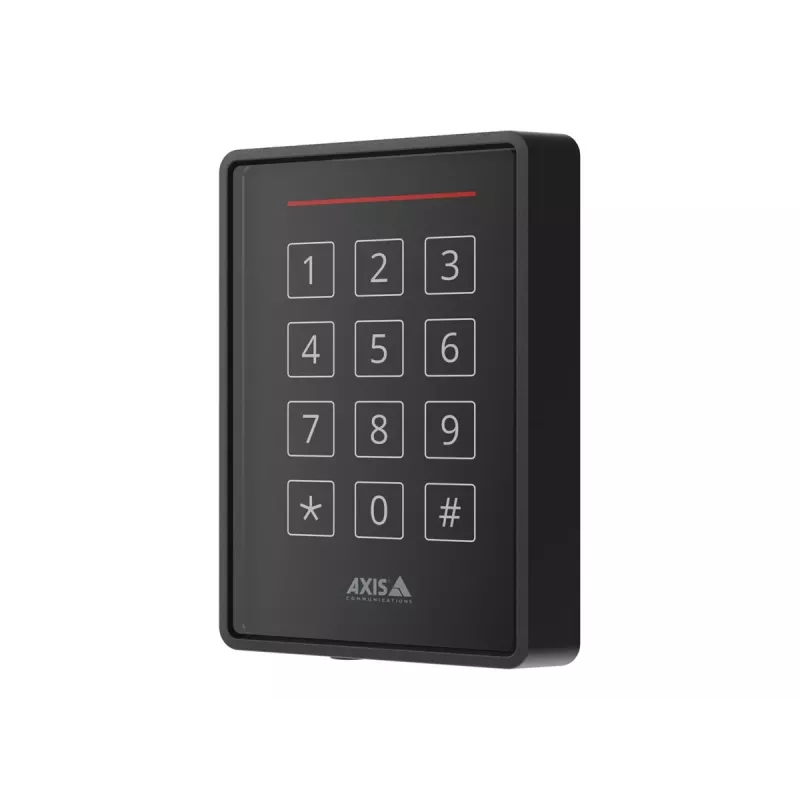

Axis A4131-E Reader - lector RFID sin contacto/teclado - cableado - negro, NCS S 9000-N

The Axis A4131-E Reader is a high-performance RFID contactless reader with an integrated keypad, designed for secure access control applications. It supports multiple RFID standards including MIFARE, DESFire, FeliCa, iCLASS, Seos, PIV, and NFC, operating at 13.56 MHz. The reader is wired and powered via Power over Ethernet (PoE) IEEE 802.3af/at, ensuring easy installation and reliable connectivity. With an IP66 rating and IK07 impact protection, it is suitable for both indoor and outdoor use in harsh environments.

Advantages

The Axis A4131-E Reader offers robust security features, including an EAL6+ certified secure element and support for OSDP v2.2, ensuring encrypted communication and resistance to tampering. Its multi-color LED status indicator and buzzer provide clear user feedback. The reader is firmware-upgradable remotely, allowing for future enhancements without physical access. The UV-resistant polycarbonate housing ensures durability and longevity.

Suitable for

• Secure access control in commercial buildings, offices, and industrial facilities
• Integration with existing access control systems supporting OSDP
• Outdoor installations requiring weatherproof and impact-resistant hardware
• High-security environments needing multi-factor authentication (card + PIN)

Key specifications

• Product Type: Access Control Reader with Keypad
• Connectivity: Wired, OSDP interface
• RFID Standards: MIFARE Classic, MIFARE DESFire EV1/EV2, FeliCa, iCLASS, Seos, PIV, NFC
• Frequency: 13.56 MHz
• Keypad: 12-button backlit
• Power: PoE IEEE 802.3af/at Type 1 Class 2
• Power Consumption: 6.49 W
• IP Rating: IP66
• IK Rating: IK07
• Operating Temperature: -40°C to 65°C
• Color: Black (NCS S 9000-N)
• Mounting: Wall mount (single gang box compatible)
• Material: UV-resistant polycarbonate
• Certifications: CE, FCC, IC, RCM, VCCI, KC, UL, cUL

Recommendations

For optimal performance, pair the Axis A4131-E Reader with an Axis network video recorder or compatible access control system. Ensure proper PoE switch capacity to support the reader's power requirements. Regular firmware updates are recommended to maintain security and functionality.
