SCOT ES-S12DCN-MB PROFI Abrepuertas eléctrico simétrico de bajo consumo con memoria y bloqueo

The SCOT ES-S12DCN-MB PROFI is a professional-grade low-current symmetrical electric strike designed for access control and intercom systems. It features memory (latch/hold open) and block (mechanical lock/unlock) functions, ensuring secure and flexible door operation. Operating at 12V DC with a fail-secure mode, this strike remains locked when power is off, providing reliable security. Its narrow housing (20.5 mm) fits standard door frames, and the universal mounting supports both left and right doors.

Advantages

Fail-secure operation ensures safety during power loss. Memory function allows the door to remain open when required, while the block function provides mechanical locking. High holding force of 3000 N (approx. 300 kg) and durability of 300,000 cycles guarantee long-term reliability. The symmetrical design simplifies installation on any door orientation.

Suitable for

• Access control systems in commercial buildings
• Intercom and door entry systems
• Gates and entrance doors requiring secure locking
• Retrofit installations with standard door frames

Key specifications

• Product Type: Electric Strike
• Operating Mode: Fail-secure (locked without power)
• Voltage: 12V DC
• Current Consumption: 280 mA
• Functionality: Memory (latch/hold open) and Block (mechanical lock/unlock)
• Design: Symmetrical

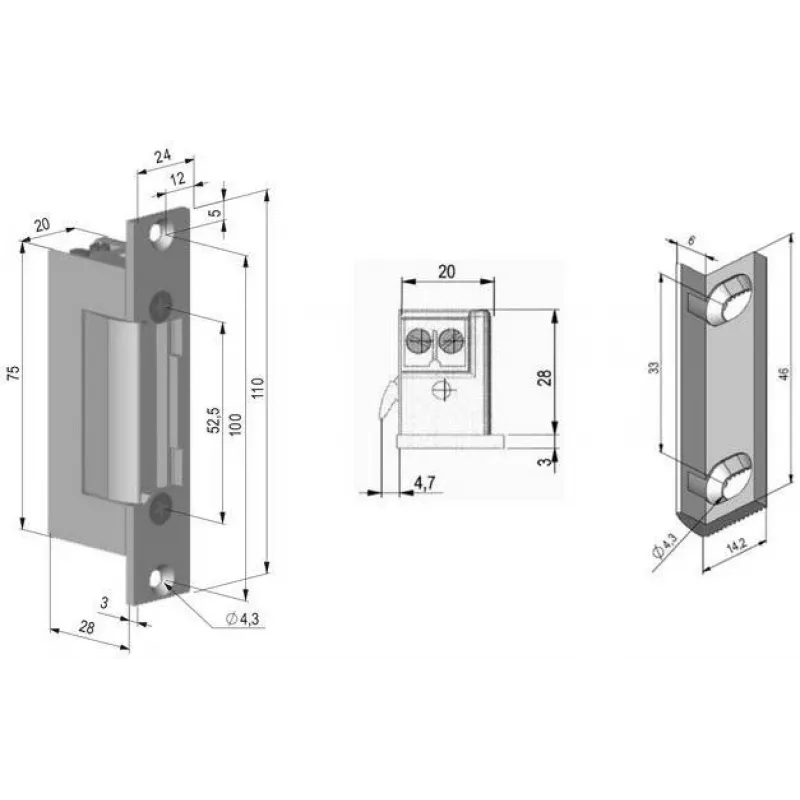

• Housing Width: 20.5 mm (narrow)
• Material: Zinc alloy / Steel
• Durability: 300,000 cycles
• Operating Temperature: -15°C to +40°C
• Mounting: Universal (left/right doors)
• Holding Force: 3000 N (approx. 300 kg)
• Power Type: DC
• Release Type: Impulse (momentary power to open)

Recommendations

For optimal performance, use with a regulated 12V DC power supply. Ensure proper alignment with the door latch. Suitable for indoor or sheltered outdoor applications.
