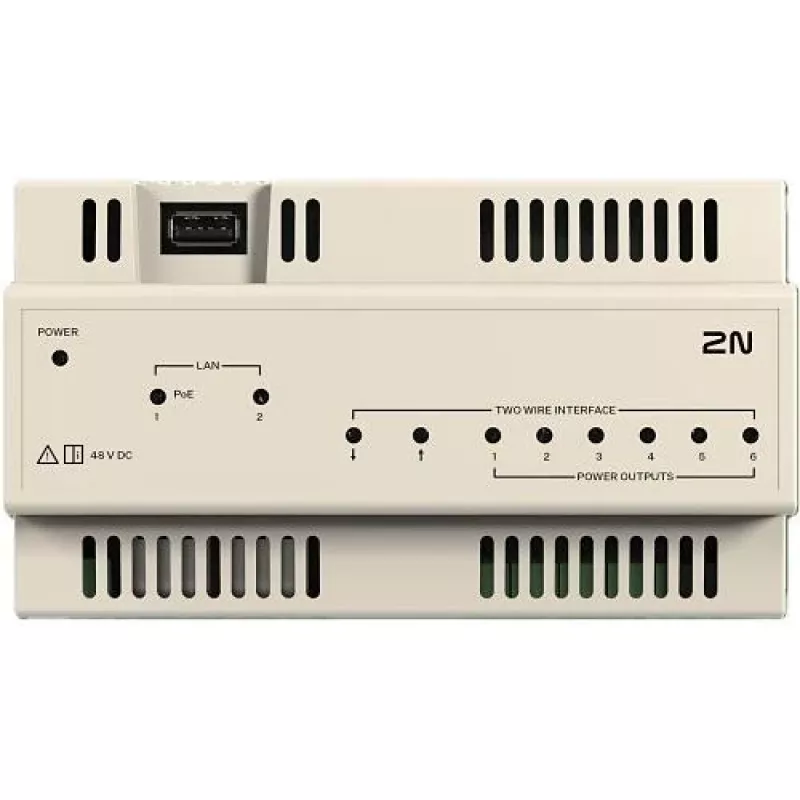

2N Clip switch 2wire-IP

The 2N Clip 2wire-IP Switch is a compact 2-wire to Ethernet converter and PoE injector designed to extend the reach of 2N IP intercoms and access units over existing 2-wire infrastructure. It enables flexible installation up to 190 meters from the 2N 2-Wire Converter and supports daisy chaining of up to three switches for extended coverage.

Advantages

Simplifies retrofitting of IP devices in buildings with existing 2-wire cabling, reducing installation costs and time. Provides Power over Ethernet (PoE) to connected devices, eliminating the need for separate power supplies. Compact design supports both DIN rail and wall mounting for versatile placement.

Suitable for

• Connecting 2N IP intercoms and access units over long distances using 2-wire lines
• Extending network reach in multi-building or campus environments
• Indoor installations where existing 2-wire infrastructure is present

Key specifications

• Product Type: 2-Wire to Ethernet Converter / PoE Injector
• Input Interface: 1x 2-Wire (terminal block)
• Output Interface (Device): 1x RJ45 (Ethernet 10/100Base-T)
• Output Interface (Daisy Chain): 1x 2-Wire (terminal block)
• Power Input: Via 2-Wire line from 2N 2-Wire Converter (9138002) or another 2N 2-Wire Switch
• Power Output: Power over Ethernet (PoE) IEEE 802.3af (Class 0)
• Max Cable Length (from Converter): Up to 190 meters (623 feet) with one switch
• Max Number of Switches (Daisy Chain): Up to 3 switches in a chain
• Data Transfer Rate: 10/100 Mbps
• Installation Environment: Indoor
• Mounting Type: DIN rail (35mm), Wall mount
• Operating Temperature: -40°C to +55°C (-40°F to 131°F)
• Operating Humidity: 10% to 95% (non-condensing)
• LED Indicators: Power, Link/Activity

Recommendations

For optimal performance, use with 2N 2-Wire Converter (9138002) and ensure total cable length and daisy chain limits are not exceeded. Suitable for indoor use only.
