2N NVT Phybridge pack de expansión con 6 adaptadores para 333059

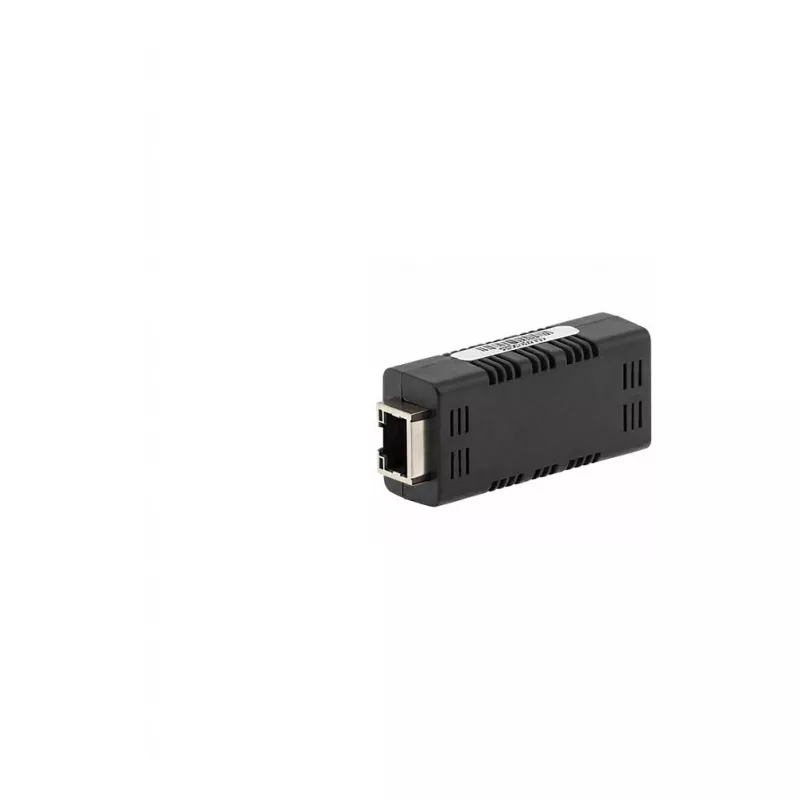

The 2N NVT Phybridge Expansion Pack with 6 Adapters (model 1120104) is designed to extend the reach of your 2N NVT Phybridge PoLRE LPC Switch (e.g., 333059). This expansion pack includes six additional adapters that enable Power over Long Reach Ethernet (PoLRE) connectivity over single-pair UTP or coaxial cable, delivering both data and power to remote IP devices such as IP cameras, VoIP phones, wireless access points, and access control systems. With plug-and-play installation and robust performance, this expansion pack is ideal for expanding your network infrastructure in challenging environments.

Advantages

Extend network reach up to 1,200 ft over UTP or 2,000 ft over coax without additional power sources. Each adapter provides PoE (IEEE 802.3af/at) output to connected devices, simplifying deployment. The compact, industrial design ensures reliable operation in a wide temperature range (0°C to 50°C).

Suitable for

• IP surveillance systems requiring long-distance camera placement
• VoIP phone installations in remote areas
• Wireless access point backhaul over existing cabling
• Access control systems in large facilities

Key specifications

• Number of Adapters: 6
• Technology: Power over Long Reach Ethernet (PoLRE)
• Ethernet Standard: 10/100BASE-T
• PoE Standard: IEEE 802.3af/at (PoE/PoE+)
• Max Distance (UTP): 1,200 ft (365 m)
• Max Distance (Coax): 2,000 ft (610 m)
• Data Rate: 10/100 Mbps Full Duplex
• Power Input: PoE from PoLRE LPC switch
• Power Output: PoE (IEEE 802.3af/at) to connected IP device
• Adapter Input Interface: 2-pin terminal block (UTP) or BNC (Coax)
• Adapter Output Interface: 1x RJ45 (10/100BaseT, PoE)
• LED Indicators: Link, Activity, PoE Status
• Installation: Plug-and-Play
• Operating Temperature: 0°C to 50°C (32°F to 122°F)

Recommendations

For optimal performance, use with 2N NVT Phybridge PoLRE LPC Switch (model 333059). Ensure cable quality meets specifications for maximum distance. This expansion pack is not compatible with standard Ethernet switches without PoLRE support.
