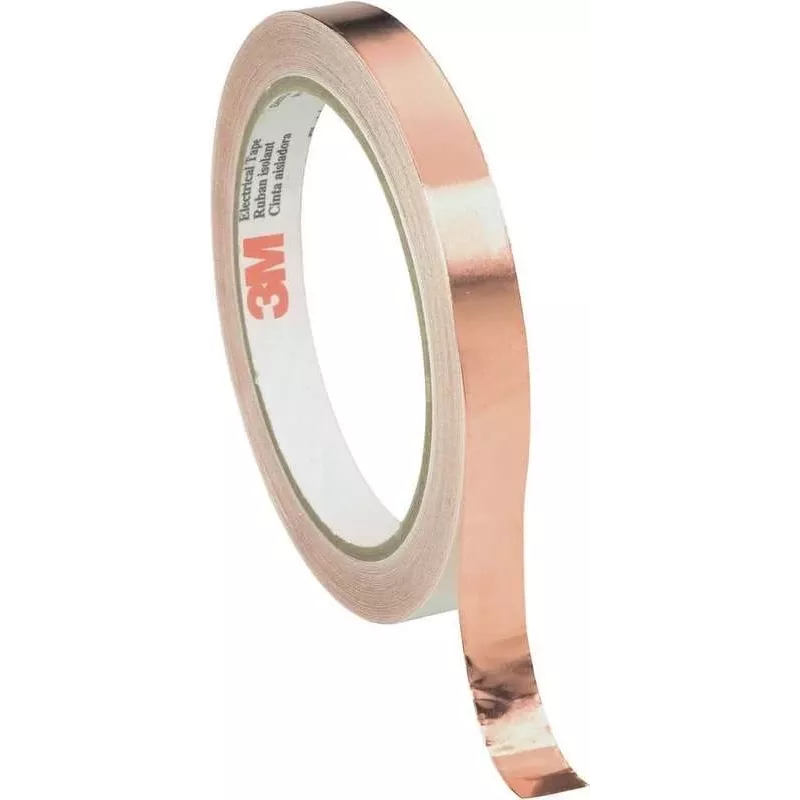

3M Scotch 1181 Cinta de lámina de cobre, 16,5 m x 15 mm, adhesivo acrílico eléctricamente conductor, apantallamiento EMI 118115

EMI shielding tape with a copper foil backing and an electrically conductive acrylic adhesive. The tape provides reliable grounding and static charge draining in electronic assemblies.

Advantages

Copper foil backing offers excellent electrical conductivity. The electrically conductive acrylic adhesive ensures low resistance through the bond line. The tape is suitable for use over a wide temperature range from -40°C to 150°C.

Suitable for

• EMI/RFI shielding of enclosures and cables
• Grounding and static charge draining
• Repair of printed circuit board traces

Key specifications

• Tape width: 15 mm
• Tape length: 16.5 m
• Total thickness: 0.066 mm
• Adhesion to steel: 4.4 N/10 mm
• Volume resistivity: <0.005 Ohm-cm
• Operating temperature: -40°C to 150°C

Recommendations

For best adhesion, apply to clean, dry surfaces. The tape is supplied on a release liner for easy handling.
