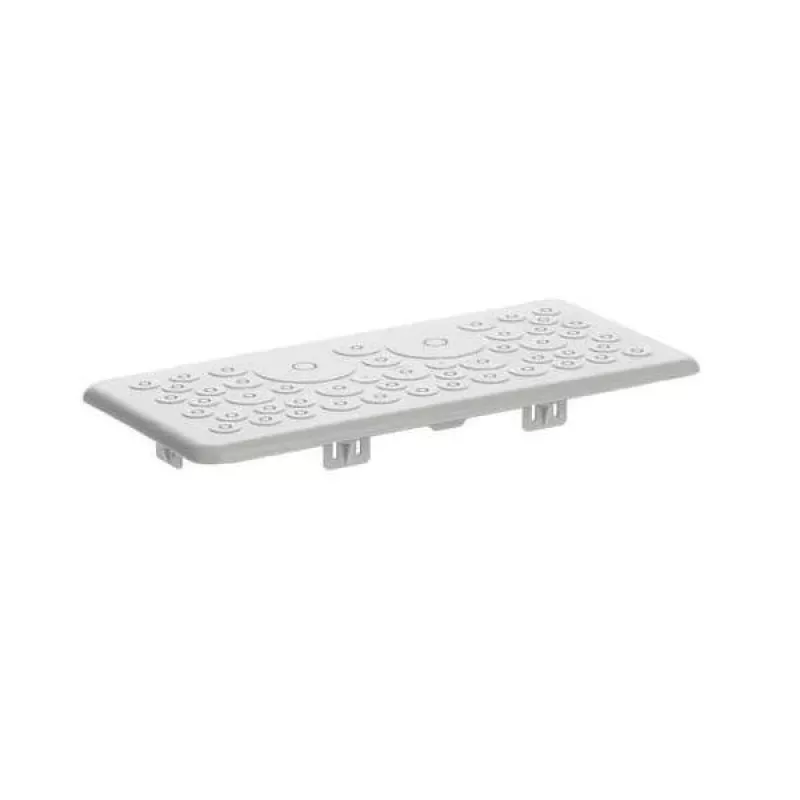

ABB brida de membrana para armario A/B CZF2

The ABB Membrane Flange CZF2 is a high-quality cable entry and sealing solution designed specifically for ABB A/B Series cabinets. Manufactured from durable thermoplastic elastomer (TPE), this flange provides reliable strain relief, dust and water protection, ensuring the integrity of your electrical installations. With IP65 protection when correctly installed, it is suitable for demanding industrial environments.

Advantages

This membrane flange offers exceptional flexibility and ease of installation. Its screw-on mounting type allows for quick and secure attachment to cabinet walls or doors. The integrated membrane design accommodates multiple cable diameters from 6 mm to 25 mm, providing a tight seal without the need for additional gaskets. The material is halogen-free, UV-resistant, and chemically resistant, ensuring long-lasting performance even in harsh conditions.

Suitable for

• ABB A/B Series cabinets
• Cable entry and sealing in control panels
• Industrial automation and distribution systems
• Applications requiring IP65 protection

Key specifications

• Product Type: Membrane Flange
• Compatibility: ABB A/B Series Cabinets
• Material: Thermoplastic Elastomer (TPE)
• Colour: Grey (RAL 7035)
• Protection Class: IP65 (when correctly installed)
• Number of Cable Entries: 10
• Cable Entry Configuration: 4x M20, 4x M25, 2x M32 equivalent
• Max Cable Diameter: 25 mm
• Min Cable Diameter: 6 mm
• Mounting Type: Screw-on
• Operating Temperature: -25°C to +70°C
• Flammability Rating: UL94 V-0
• Halogen-Free: Yes
• UV Resistance: Yes
• Chemical Resistance: Yes

Recommendations

For optimal performance, ensure the flange is correctly installed on a clean, flat surface. Use appropriate screws and sealing gaskets if required. This product is part of ABB's comprehensive range of cabinet accessories, designed to meet the highest standards of quality and reliability.
