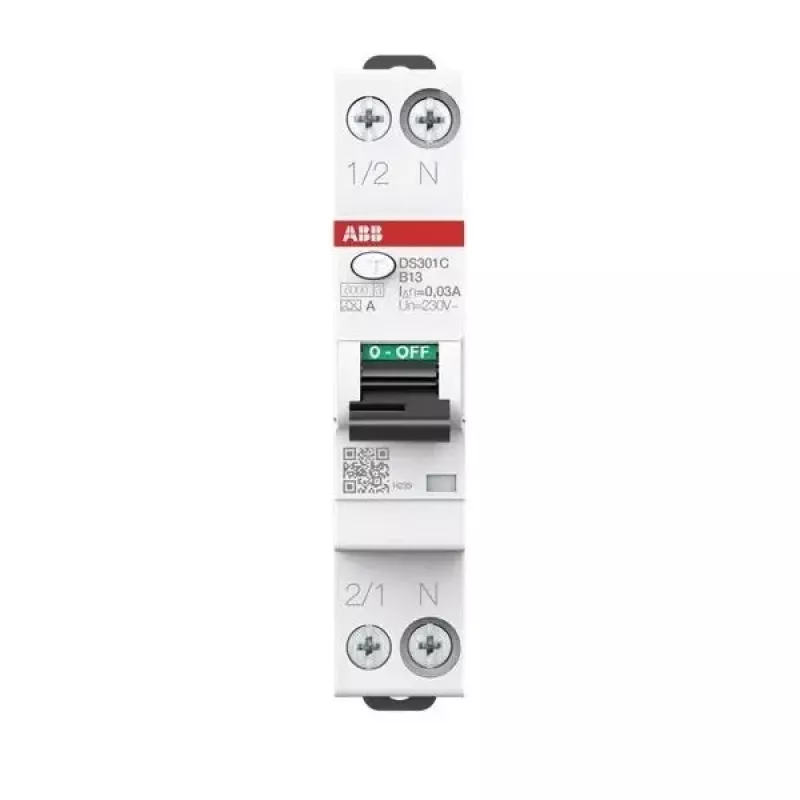

ABB DS301CA-B13/0.03 RCBO 1P+N 13A curva B 30mA 6kA tipo A 2CSR255163R1135

The ABB DS301CA-B13/0.03 combines residual current protection and overcurrent protection in a single 1P+N module, making it a space-saving choice for distribution boards where every DIN rail slot counts. Its B-curve tripping characteristic and 30 mA residual current rating are tailored for circuits with moderate inrush currents and require personal protection against earth leakage.

Highlights

• 1P+N RCBO with 13 A rated current and B tripping curve
• 30 mA residual operating current, Type A (AC and pulsating DC)
• 6 kA short-circuit breaking capacity
• DIN rail mounting with screw terminals

In daily use

This RCBO responds to both overload and earth leakage, reducing the need for separate MCB and RCD devices. The Type A residual current detection covers standard AC faults and pulsating DC components, which is relevant for circuits with electronic loads. With a rated voltage of 230 V AC and 50/60 Hz operation, it fits standard single-phase installations.

Full specifications

• Rated current (In): 13 A
• Tripping characteristic: B
• Rated residual operating current (IΔn): 30 mA
• Rated short-circuit breaking capacity (Icn): 6 kA
• Rated voltage (Ue): 230 V AC
• Rated frequency: 50/60 Hz
• Type of residual current: Type A
• Number of poles: 1P+N
• Mounting type: DIN rail
• Terminal type: Screw terminals
• Degree of protection: IP20
• Standard: IEC/EN 61009-1
• Operating temperature range: -25 to +55 °C
• Electrical endurance: 10000 cycles
• Mechanical endurance: 20000 cycles
• Energy limiting class: 3
• Rated impulse withstand voltage (Uimp): 4 kV

Final note

The DS301CA series is engineered for reliable protection in residential and commercial electrical systems, with a compact footprint that simplifies installation.
