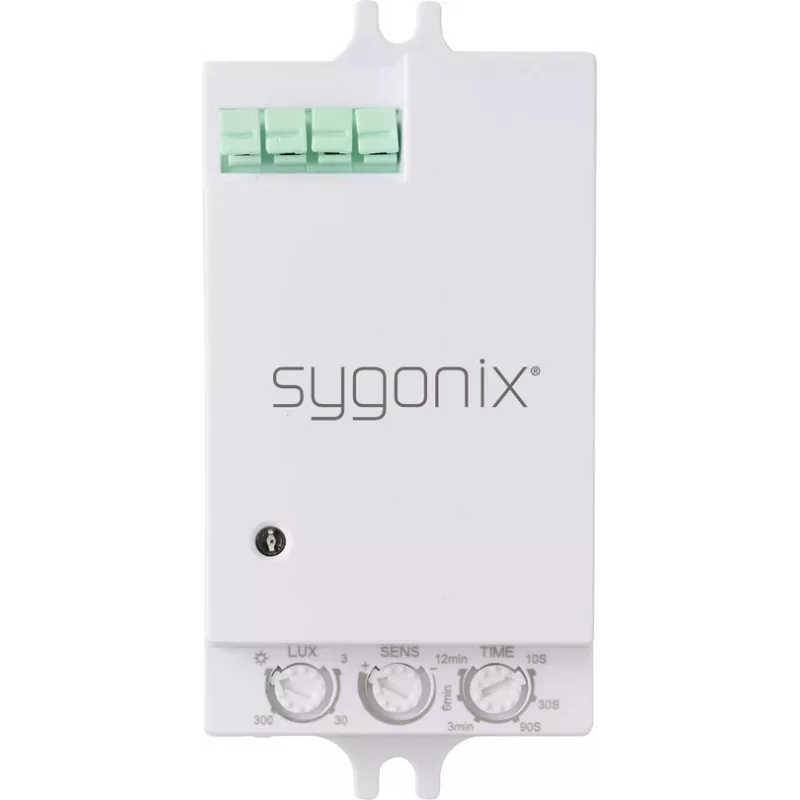

Sygonix SY-6879924 Detector de presencia PIR de techo/pared, 180°/360°, relé, Blanco

The Sygonix SY-6879924 stands out with its dual mounting capability: install it on the ceiling for 360° coverage or on the wall for 180° coverage, making it a flexible solution for different room layouts. The integrated relay output handles up to 2000 W resistive loads, suitable for lighting and small appliances.

Highlights

• Passive infrared (PIR) sensor detects motion and presence
• Switchable detection angle: 360° ceiling mount, 180° wall mount
• Adjustable time delay from 10 seconds to 15 minutes
• Brightness threshold adjustable from 3 to 2000 lux
• Relay output for direct switching of loads up to 2000 W
• White polycarbonate housing blends into ceilings and walls

In daily use

Set the desired light level at which the detector should activate, then adjust the off-delay time. The detector works with 230 V AC mains and consumes less than 0.5 W in standby. Installation height ranges from 2.2 to 4 m on ceilings and 1.8 to 2.5 m on walls. The maximum detection range is 8 m at a mounting height of 2.5 m.

Full specifications

• Sensor type: Passive infrared (PIR)
• Mounting type: Ceiling, wall
• Detection angle: 360° (ceiling), 180° (wall)
• Maximum detection range: 8 m
• Operating voltage: 230 V AC, 50 Hz
• Maximum switching capacity (resistive): 2000 W
• Maximum switching capacity (LED/fluorescent): 1000 W
• Time setting range: 10 s – 15 min
• Brightness threshold: 3 – 2000 lux
• International Protection (IP) code: IP20
• Product colour: White
• Housing material: Polycarbonate
• Installation height: 2.2 – 4 m (ceiling), 1.8 – 2.5 m (wall)
• Power consumption (standby): < 0.5 W
• Operating temperature: -20 °C to +40 °C
• Output type: Relay

Final note

For indoor use only (IP20). Ensure installation complies with local electrical regulations.
