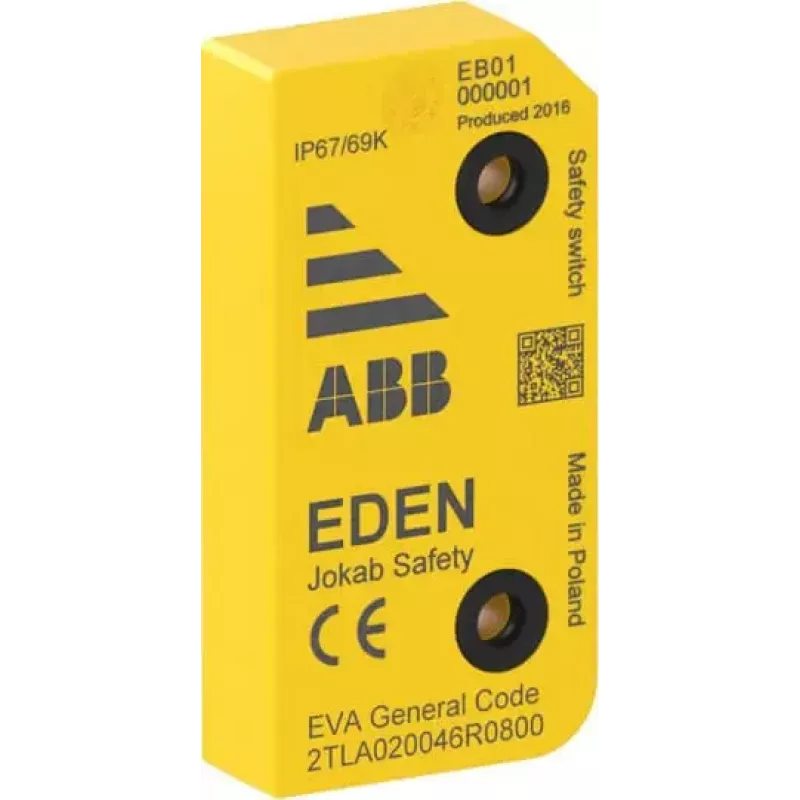

ABB Interruptor de seguridad sin contacto EVA General Code, RFID, 2 x OSSD, M12 8 polos, IP67/IP69K 2TLA020046R0800

Machine guarding often requires a safety interlock that resists tampering and withstands harsh washdown environments. This ABB EVA non-contact safety switch uses RFID-coded actuation to monitor guard doors and prevent bypass, providing reliable protection for personnel and equipment.

Who is it for

Maintenance engineers and machine builders integrating safety circuits in packaging, food processing, or material handling lines where hygiene and high-pressure cleaning are routine.

Main features

• RFID sensing principle with unique coded actuator for high tamper resistance
• Safety outputs: 2 x OSSD for direct connection to safety relays or controllers
• Up to PLe (ISO 13849-1) and SIL3 (IEC 62061) safety level
• IP67 and IP69K protection for dust-tight and high-temperature washdown
• M12 8-pin connector for quick installation
• Compact thermoplastic PBT housing with M4 screw mounting

Specifications

• Supply voltage: 24 V DC (18-30 V DC)
• Current consumption: < 50 mA
• Switch-on distance (Sao): 10 mm
• Switch-off distance (Sar): 20 mm
• Response time: < 10 ms
• Operating temperature: -25 °C to +70 °C
• Auxiliary output: 1 x PNP status
• Housing material: Thermoplastic PBT

Tips

Pair with the ABB EVA actuator (sold separately) and mount on non-ferrous surfaces to maintain sensing distances. Use shielded M12 cables for reliable OSSD signals in EMC-heavy environments.
