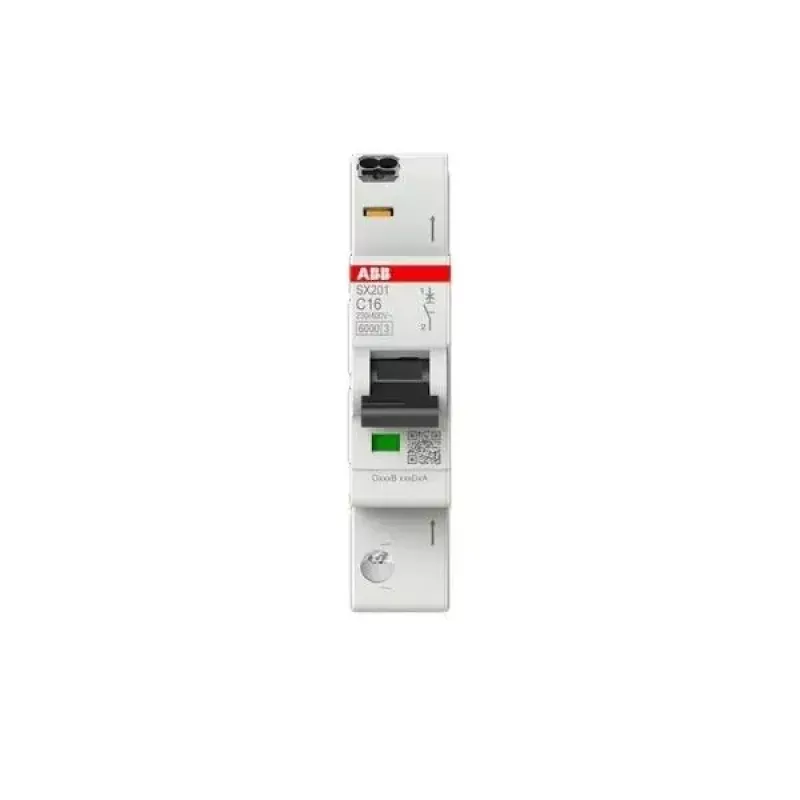

ABB SX201-C16 Flexline interruptor automático 1P 16A curva C 6kA 2CDS251003R0164

The ABB SX201-C16 Flexline is a miniature circuit breaker (MCB) with 1 pole, rated for 16 A and a C tripping characteristic. It provides reliable protection against overloads and short circuits in residential and commercial electrical installations, with a breaking capacity of 6 kA.

Advantages

This MCB offers precise protection with a C-curve, suitable for circuits with moderate inrush currents. Its compact design and DIN rail mounting allow for easy installation in distribution boards. The screw terminals accommodate conductors from 0.75 to 25 mm², ensuring secure connections.

Suitable for

• Protection of lighting and socket circuits in residential buildings
• Control circuits and small motors with moderate starting currents
• Use in distribution boards and consumer units

Key specifications

• Number of poles: 1P
• Rated current: 16 A
• Tripping characteristic: C
• Rated short-circuit breaking capacity: 6 kA
• Rated operational voltage: 230/400 V AC
• Rated frequency: 50/60 Hz
• Mounting type: DIN rail
• Terminal type: Screw terminals
• Terminal capacity: 0.75 - 25 mm² (rigid and flexible)
• Degree of protection: IP20
• Standard: IEC/EN 60898-1
• Energy limiting class: 3
• Electrical endurance: 10000 AC cycles
• Mechanical endurance: 20000 cycles
• Ambient air temperature: -25 to +55 °C
• Product series: S200

Recommendations

For circuits with higher inrush currents, consider a D-curve breaker. Always consult a qualified electrician for installation and ensure compliance with local regulations.
