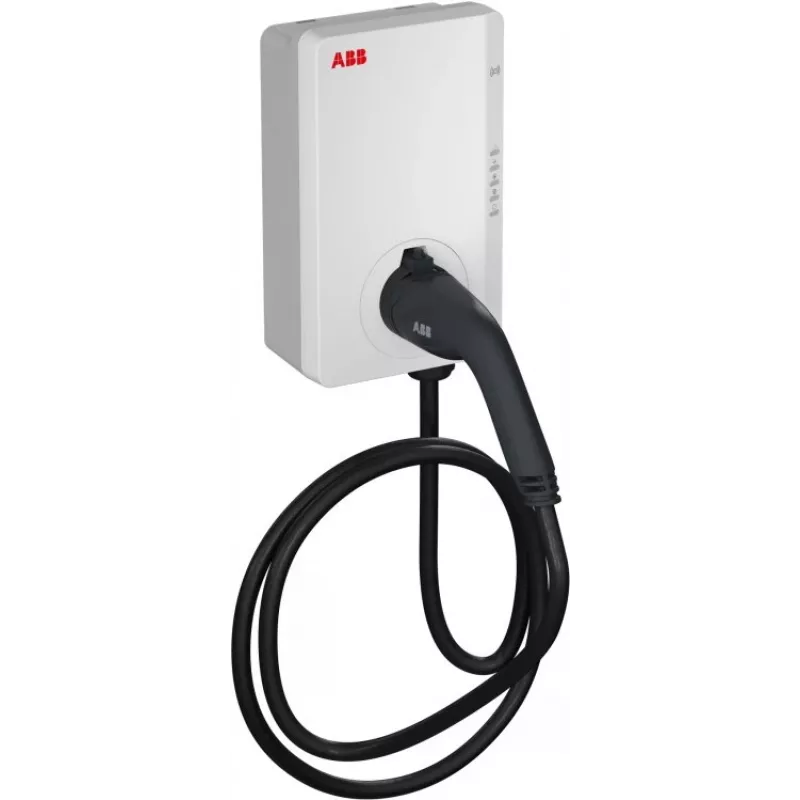

ABB Terra AC Wallbox 11 kW Type 2 5m cable estación de carga 6AGC082156

The ABB Terra AC wallbox delivers 11 kW of three-phase AC charging through a fixed 5-meter Type 2 cable, making it a robust and future-proof solution for residential and commercial EV charging. Its integrated 6 mA DC residual current detection eliminates the need for an external Type B RCD, simplifying installation and reducing costs.

Advantages

This wallbox combines durability with smart connectivity. The polycarbonate enclosure is IK10 impact-resistant and IP54 weatherproof, suitable for indoor and outdoor mounting. Integrated Wi-Fi, Bluetooth, and Ethernet enable seamless connection to the ABB ChargerSync app for remote monitoring, scheduling, and firmware updates. RFID/NFC authentication ensures only authorized users can start a charging session, while OCPP 1.6 JSON compliance allows integration with third-party back-end systems.

Suitable for

• Homeowners with a three-phase supply seeking fast overnight charging
• Workplaces and fleet operators needing access control and energy management
• Commercial properties requiring a durable, vandal-resistant charging point
• Installers looking for a unit with built-in DC leakage protection

Key specifications

• Charging power: 11 kW (3-phase, 16 A, 400 V AC)
• Connector: Type 2 (IEC 62196-2) with 5 m fixed cable
• Protection: IP54, IK10, operating temperature -30 °C to +50 °C
• Connectivity: Wi-Fi, Bluetooth, Ethernet (RJ45), OCPP 1.6 JSON
• Authentication: RFID/NFC, ABB ChargerSync app
• Safety: Integrated 6 mA DC RCD, energy meter, LED status indicator
• Certifications: CE, IEC 61851-1, IEC 61851-21-2, IEC 61851-22

Recommendations

For a reliable, connected, and installer-friendly EV charging station, the ABB Terra AC wallbox is an excellent choice. Its robust build and comprehensive safety features ensure long-term performance in any environment.
