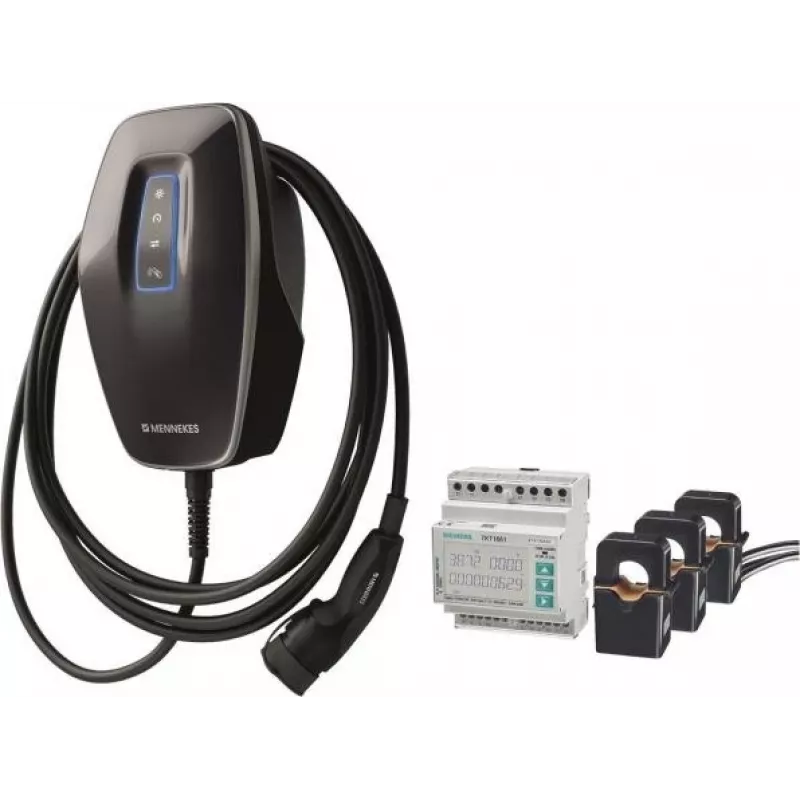

Mennekes AMTRON 4You 310 11 C2 pack PV estación de carga 11 kW Type 2 con cable de 7,5 m, negro 1313201265BK

For electric vehicle owners with a photovoltaic system, surplus solar energy often goes unused, leading to higher electricity costs and a larger carbon footprint. The Mennekes AMTRON 4You 310 11 C2 PV-Bundle solves this by intelligently directing excess solar power to your EV, maximizing self-consumption and reducing grid dependence. This 11 kW wallbox delivers reliable three-phase charging with a fixed 7.5 m Type 2 cable, making it ideal for daily home charging.

Who is it for

This charging station is perfect for homeowners who have a solar installation and want to charge their electric car with self-generated energy. It suits drivers of all current and future EVs with a Type 2 connector, offering convenient and fast charging at home. The robust design and integrated safety features also make it suitable for semi-public areas such as company parking lots or apartment buildings.

Main features

• PV-optimized charging: Automatically uses surplus solar power to charge your EV, increasing self-consumption and lowering energy bills.
• 11 kW charging power: Three-phase Mode 3 charging with 16 A for a full charge overnight.
• Integrated MID energy meter: Provides precise consumption data for transparent billing and energy management.
• RFID authentication: Includes two RFID cards for access control, preventing unauthorized use.
• Robust construction: IP54-rated housing with IK08 impact resistance, suitable for indoor and outdoor installation.
• Comprehensive connectivity: Ethernet, WLAN, Modbus TCP, and RS485 interfaces with OCPP 1.6 J backend support for smart energy management.

Specifications

• Charging power: 11 kW (3-phase, 16 A, 400 V AC)
• Connector: Type 2 (IEC 62196-2) with fixed 7.5 m cable
• Charging mode: Mode 3 (IEC 61851-1)
• PV optimization: Yes (solar surplus charging)
• Authentication: RFID (2 cards included)
• Communication: Ethernet, WLAN, Modbus TCP, RS485
• Backend protocol: OCPP 1.6 J
• Energy meter: Integrated MID-compliant
• DC fault current detection: 6 mA
• RCD type: Type A (30 mA)
• Protection class: IP54
• Impact resistance: IK08
• Operating temperature: -25°C to +40°C
• Housing material: Robust plastic
• Colour: Black

Tips

For optimal PV charging, connect the wallbox to your home energy management system via Modbus TCP or Ethernet. The integrated MID meter allows you to track charging costs accurately, which is useful for tax or reimbursement purposes. Install the unit in a sheltered location to extend its lifespan, and use the RFID cards to manage access for family members or guests.
