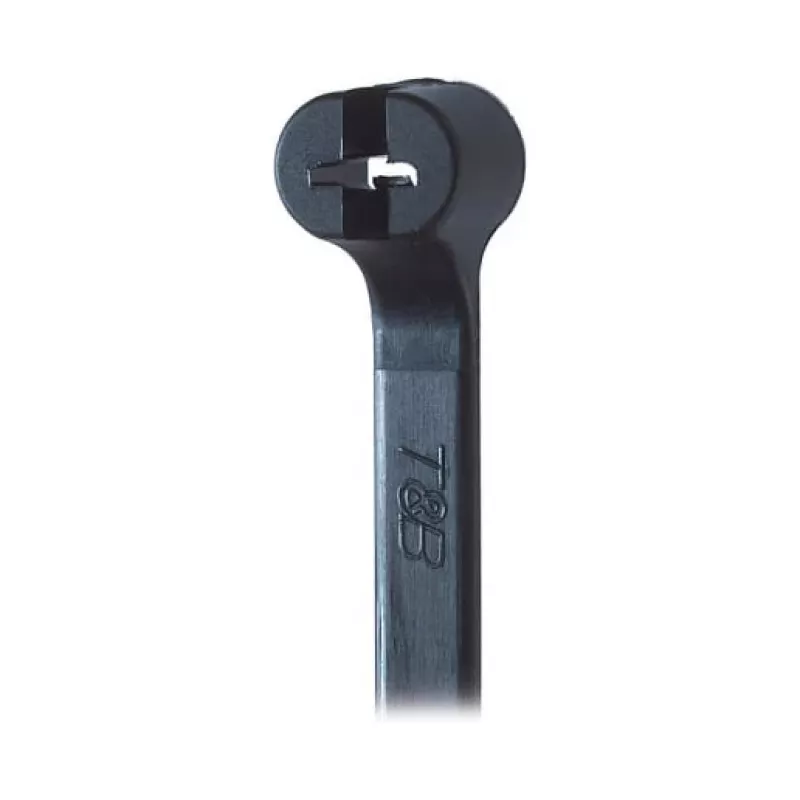

ABB TY-RAP® Brida 186x4,8 mm negra resistente a los UV TY525MXR (100 unidades)

The ABB TY-RAP® TY525MXR is a high-performance cable tie designed for both indoor and outdoor applications. Made from durable Nylon 6.6 with UV resistance, it ensures reliable bundling and organization of cables and wires in demanding environments. Each pack contains 100 pieces, making it ideal for professional installations.

Advantages

UV-resistant for outdoor use; high tensile strength of 222 N; low-profile head for tight spaces; stainless steel barb ensures secure locking; wide operating temperature range from -60°C to +85°C.

Suitable for

• Electrical installations
• Network cabling
• Automotive wiring
• Industrial maintenance
• Outdoor cable management

Key specifications

• Length: 186 mm
• Width: 4.8 mm
• Colour: Black
• Material: Nylon 6.6
• UV Resistant: Yes
• Tensile Strength: 222 N (50 lbs)
• Max Bundle Diameter: 48 mm
• Min Bundle Diameter: 1.6 mm
• Operating Temperature: -60°C to +85°C
• Flammability Rating: UL 94 V-2
• Locking Mechanism: Stainless Steel Barb
• Quantity per Pack: 100 pieces
• Series: TY-RAP®
• Standards: UL Listed, RoHS Compliant
• Head Type: Low Profile
• Releasable: No

Recommendations

For best results, use with ABB cable tie tools for consistent tension and flush cut. Suitable for securing wire bundles up to 48 mm diameter.
