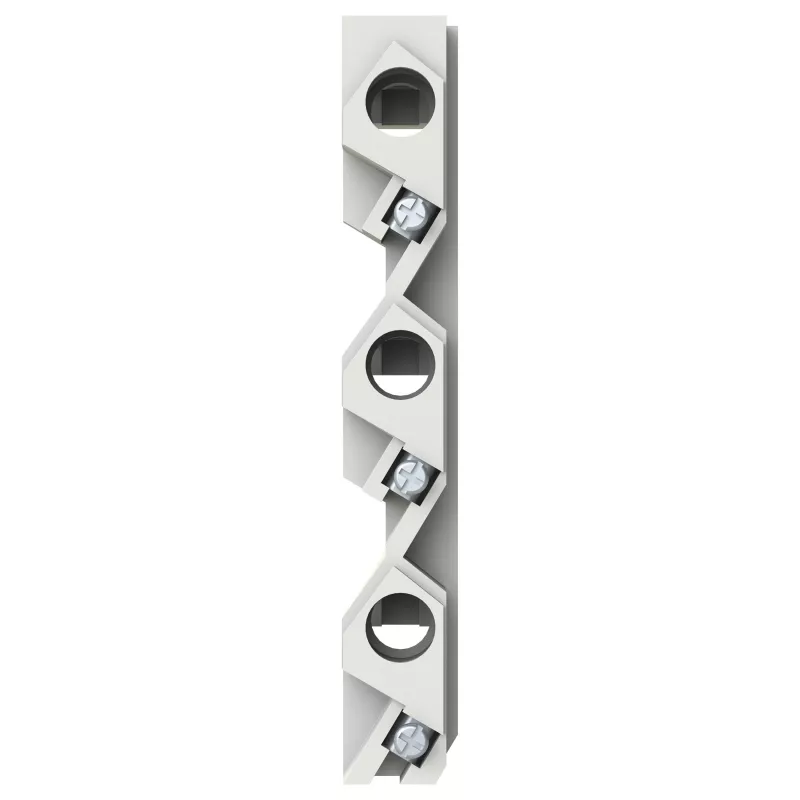

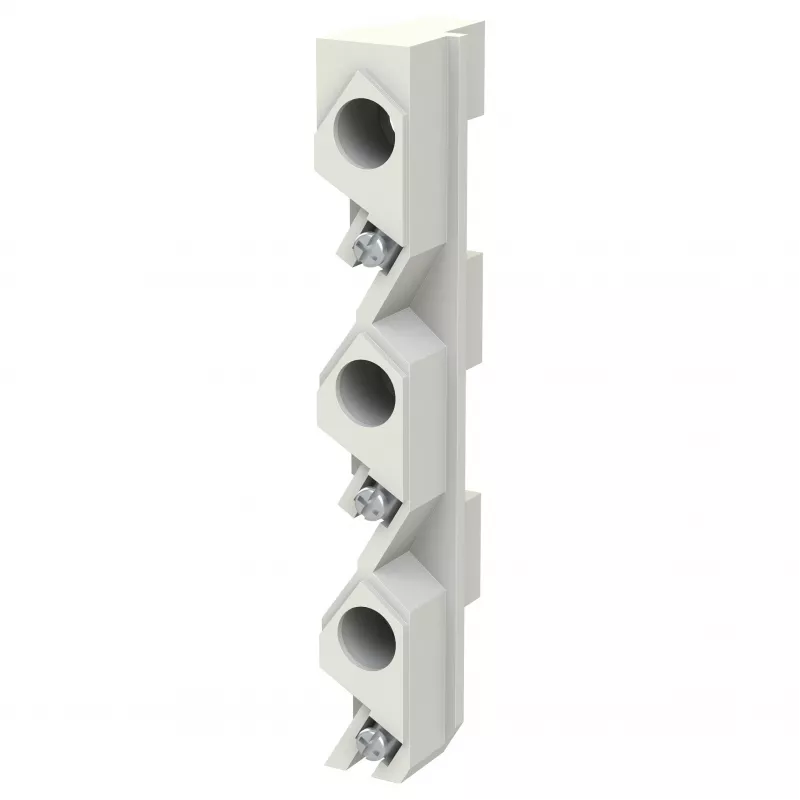

ABB ZE60 Bloque portafusibles de carril 2CPX061045R9999 Portafusibles 1 polo 32A 690V AC 10x38mm Gris

The ABB ZE60 Reitersicherungsblock (fuse holder block) is a high-quality, 1-pole fuse holder designed for cylindrical fuses of size 10x38 mm. It is rated for 32 A and 690 V AC, making it suitable for industrial and commercial electrical installations. The block mounts on a DIN rail (TH35) and features screw terminals for secure wiring connections. With a compact width of 1.5 modules (27 mm) and an IP20 degree of protection, it is ideal for use in distribution boards and control cabinets.

Advantages

Reliable and robust design ensures long service life. Easy DIN rail mounting saves installation time. Screw terminals accommodate flexible wires up to 16 mm² and rigid wires up to 25 mm². Complies with IEC/EN 60947-3 standards for safety and performance.

Suitable for

• Industrial control panels
• Distribution boards
• Machine building
• Electrical installations requiring fuse protection

Key specifications

• Product Type: Fuse Holder Block
• Fuse Type: Cylindrical Fuses
• Fuse Size: 10x38 mm
• Number of Poles: 1-pole
• Rated Operational Voltage (Ue): 690 V AC
• Rated Current (In): 32 A
• Mounting Type: DIN Rail (TH35)
• Connection Type: Screw Terminals
• Wire Cross Section (Flexible): 1.5 - 16 mm²
• Wire Cross Section (Rigid): 1.5 - 25 mm²
• Degree of Protection: IP20
• Standard: IEC/EN 60947-3
• Operating Temperature Range: -25 to +55 °C
• Module Width: 1.5 modules (27 mm)
• Indicator for Blown Fuse: No
• Color: Grey

Recommendations

For optimal performance, use with ABB fuses of the same rating. Ensure proper tightening torque for screw terminals as per manufacturer guidelines.
