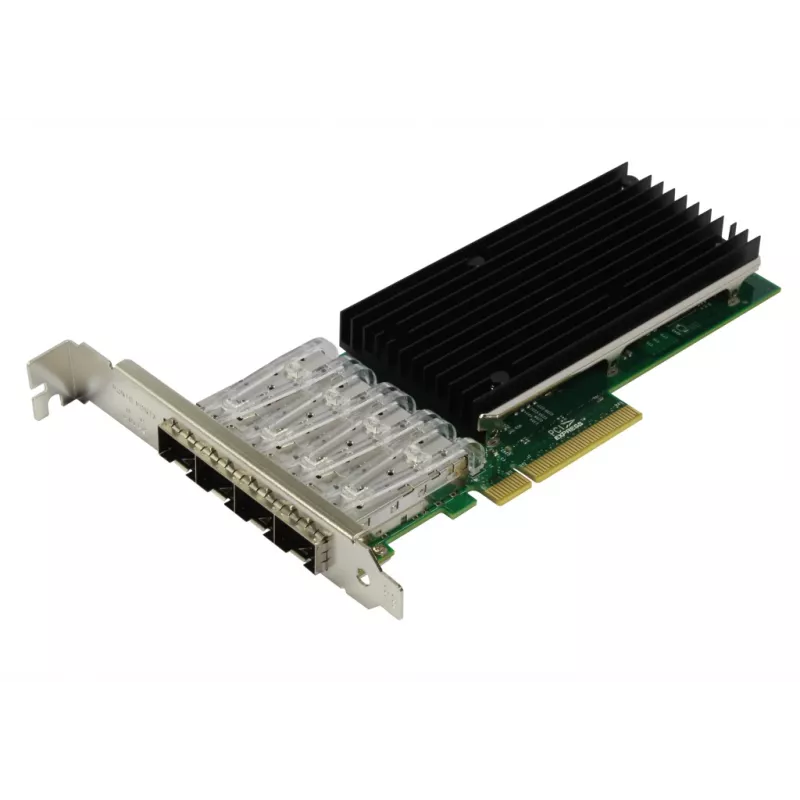

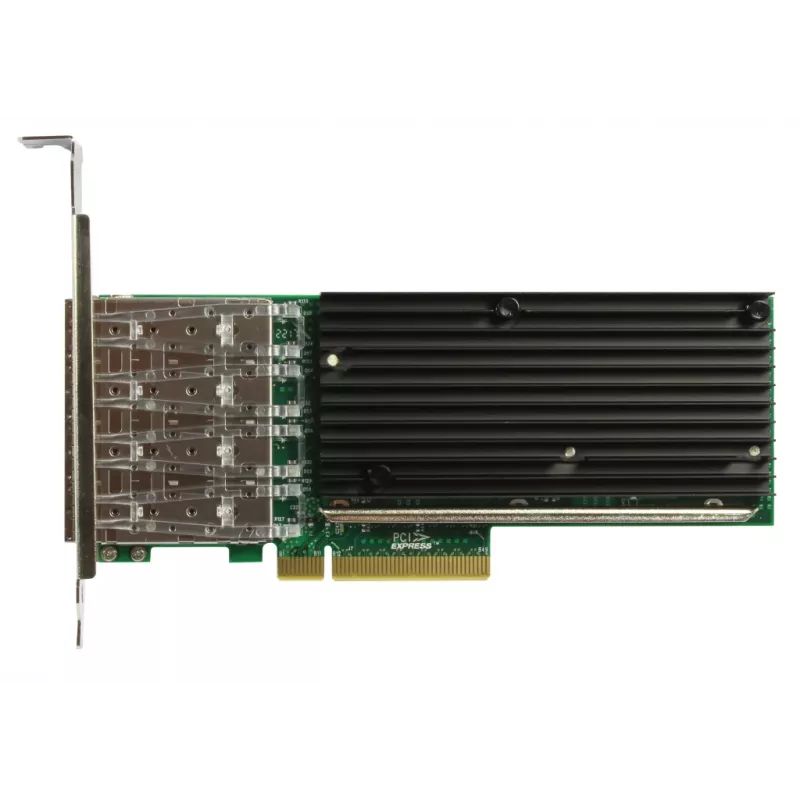

Adaptador de red de fibra óptica ALLNET PCIe 10G x8 Quad SFP+ para servidor - ALL0141-4SFP+-10G (ALL0141v2-4SFP+-10G)

When a single 10GbE link is not enough for virtualization hosts, storage servers, or high-throughput appliances, this quad-port SFP+ network adapter delivers four independent 10 Gigabit Ethernet channels over a single PCIe 3.0 x8 slot. It solves the problem of limited PCIe slots and bandwidth bottlenecks in dense server environments.

Who is it for

System integrators and data center operators who need to add multiple high-speed fiber connections to a server without sacrificing expansion slots. The Intel XL710-BM1 controller ensures broad OS and hypervisor compatibility, making it suitable for Windows Server, Linux, VMware ESXi, and FreeBSD deployments.

Main features

• Four SFP+ ports, each supporting 10 Gigabit Ethernet
• PCI Express 3.0 x8 host interface
• Intel XL710-BM1 controller chipset
• Low-profile bracket included for 2U and smaller chassis
• Supports SR-IOV, VMDq, FCoE, and iSCSI for virtualized environments
• Jumbo frame support up to 9.5 KB
• VLAN tagging (IEEE 802.1Q) and link aggregation (IEEE 802.3ad)
• PXE boot support for diskless workstations or imaging

Specifications

• Interface: PCI Express 3.0 x8
• Controller: Intel XL710-BM1
• Ports: 4 x SFP+
• Data rate: 10 Gbps per port (40 Gbps total bidirectional)
• Network standards: IEEE 802.3ae, 802.1Q, 802.3ad, 802.1p, 802.3x
• Virtualization: SR-IOV, VMDq, FCoE, iSCSI
• Jumbo frame: up to 9.5 KB
• Power consumption: 12-15W
• LED indicators: Link/Activity
• Supported OS: Windows Server, Linux, VMware ESXi, FreeBSD

Tips

For fiber connectivity, use SFP+ transceivers or direct attach cables that match your network infrastructure. The adapter supports both SR and LR optics depending on the modules installed. Ensure your server provides adequate airflow, as the card can dissipate up to 15W under load.
